BDS 17-19 FORD F-250,F-350,4WD,DIESEL,6" LIFT,FOX 2.5 COIL,ADD-A-LEAF,FOX 2.0

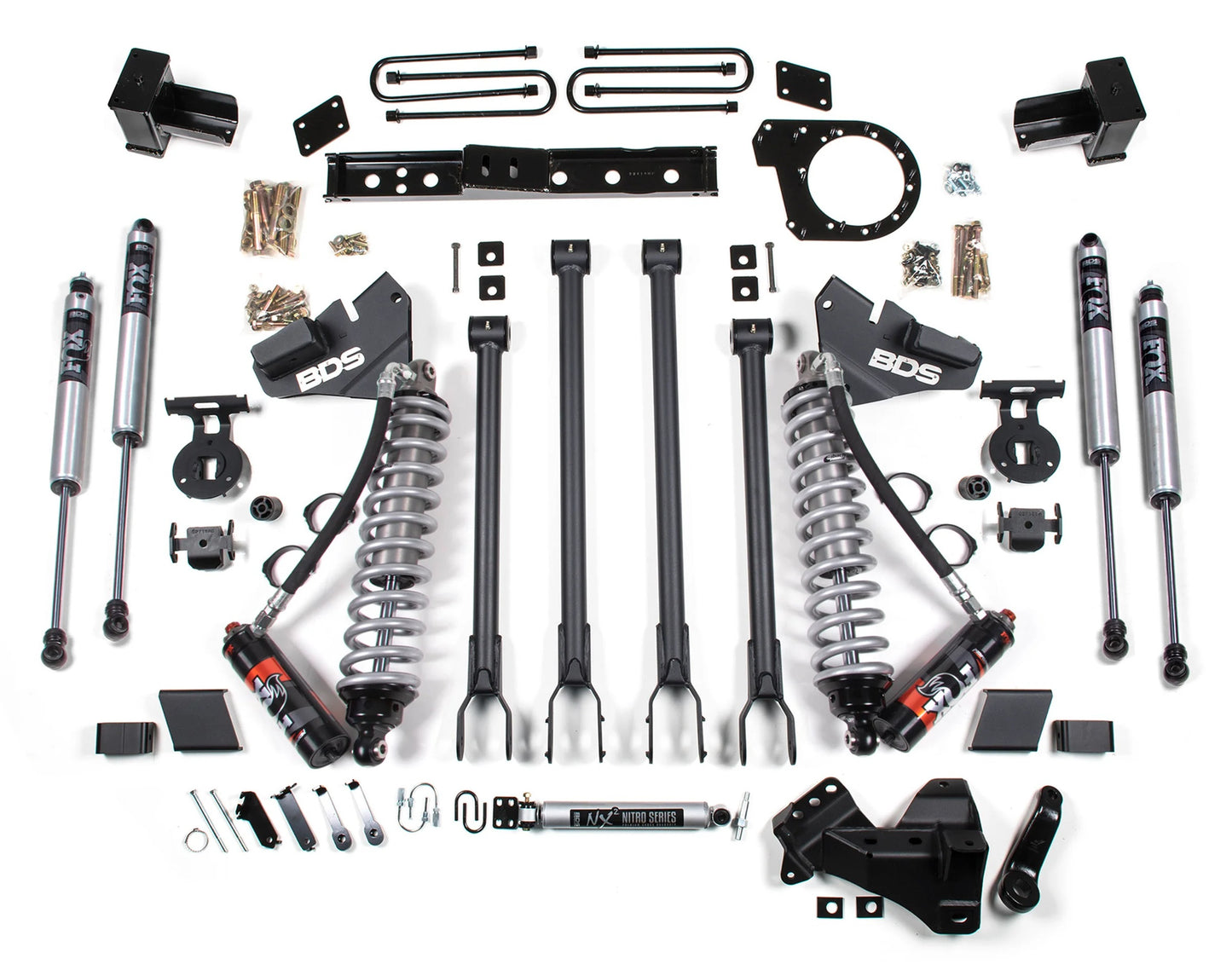

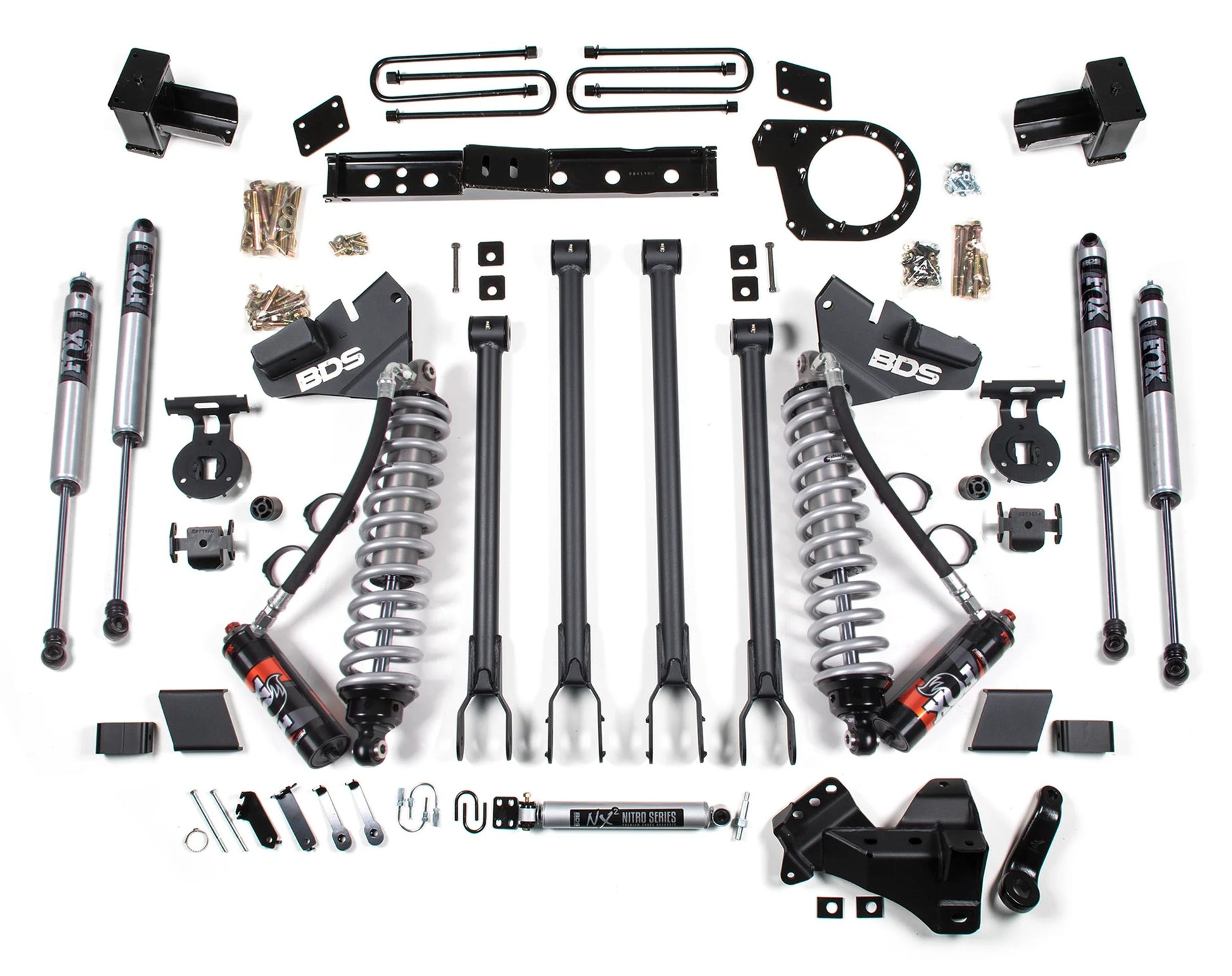

Brand New BDS Suspension 6" Lift Kit with Fox 2.5 Performance Elite Coilovers, 4-Link, Block Kit, & Add-A-Leaf (Part #BDS1527FPE).

Raise the bar on your 2017-2019 Ford F250 and F350 Ford Super Duty diesel truck with this 6-inch 4-Link lift kit and FOX Performance Elite coil-over conversion from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes FOX 2.5 coil-over shocks and mounting brackets, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear the base kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:
  • 2017-2019 F-250 Super Duty 4WD Diesel
  • 2017-2019 F-350 Super Duty 4WD Diesel

• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• Front exhaust modification may be required to clear front drive shaft
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• 37 x 12.50 tires may require minor trimming.
• Fits SRW models only.
• Recommended Tires & Wheels (Trimming may be required): 38 x 13.5 with 17 x 9 and 5 in. Backspace, 38 x 13.5 with 17 x 10 and 5 in. Backspace, or 38 x 13.5 with 20 x 10 and 5 in. Backspace

You can view and download the assembly instruction booklet here, here, here, and here.
