BDS 17-19 FORD F-250,F-350,4WD,GAS,4" LIFT,RADIUS,5"BLOCK,3 LEAF,FOX 2.0 SHOCKS

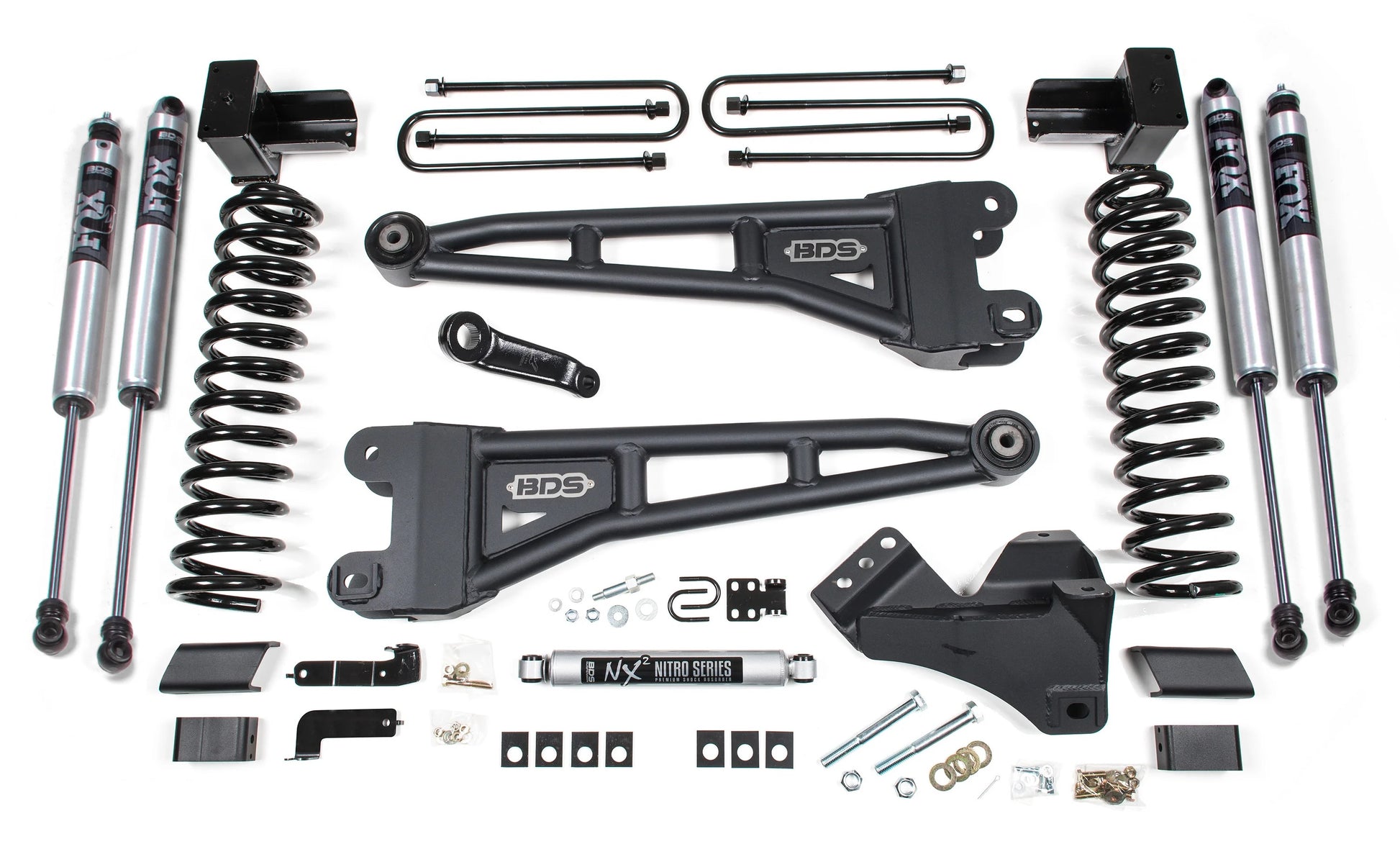

Brand New BDS Suspension 4" Radius Arm Lift Kit with Fox 2.0 Performance Shocks & 5" Block Kit (Part #BDS1525FS).

Improve the ride on your 2017-2019 Ford F250 and F350 Super Duty gas powered truck with this 4-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes gasoline-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, and brake line brackets.

Fits:

• Ford:
  • 2017-2019 F-250 Super Duty 4WD Gas with 3 Leaf Main
  • 2017-2019 F-350 Super Duty 4WD Gas with 3 Leaf Main

• Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
• Front exhaust modification may be required to clear front drive shaft
• If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
• 37 x 12.50 tires may require minor trimming.
• Fits SRW models only.
• Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 17 x 9 and 5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5 in. Backspace

You can view and download the assembly instruction booklet here and here.
