BDS 2017-2019 F250,F350 4WD DIESEL 3-LEAF 4" RADIUS ARM LIFT KIT,FOX 2.0 SHOCKS

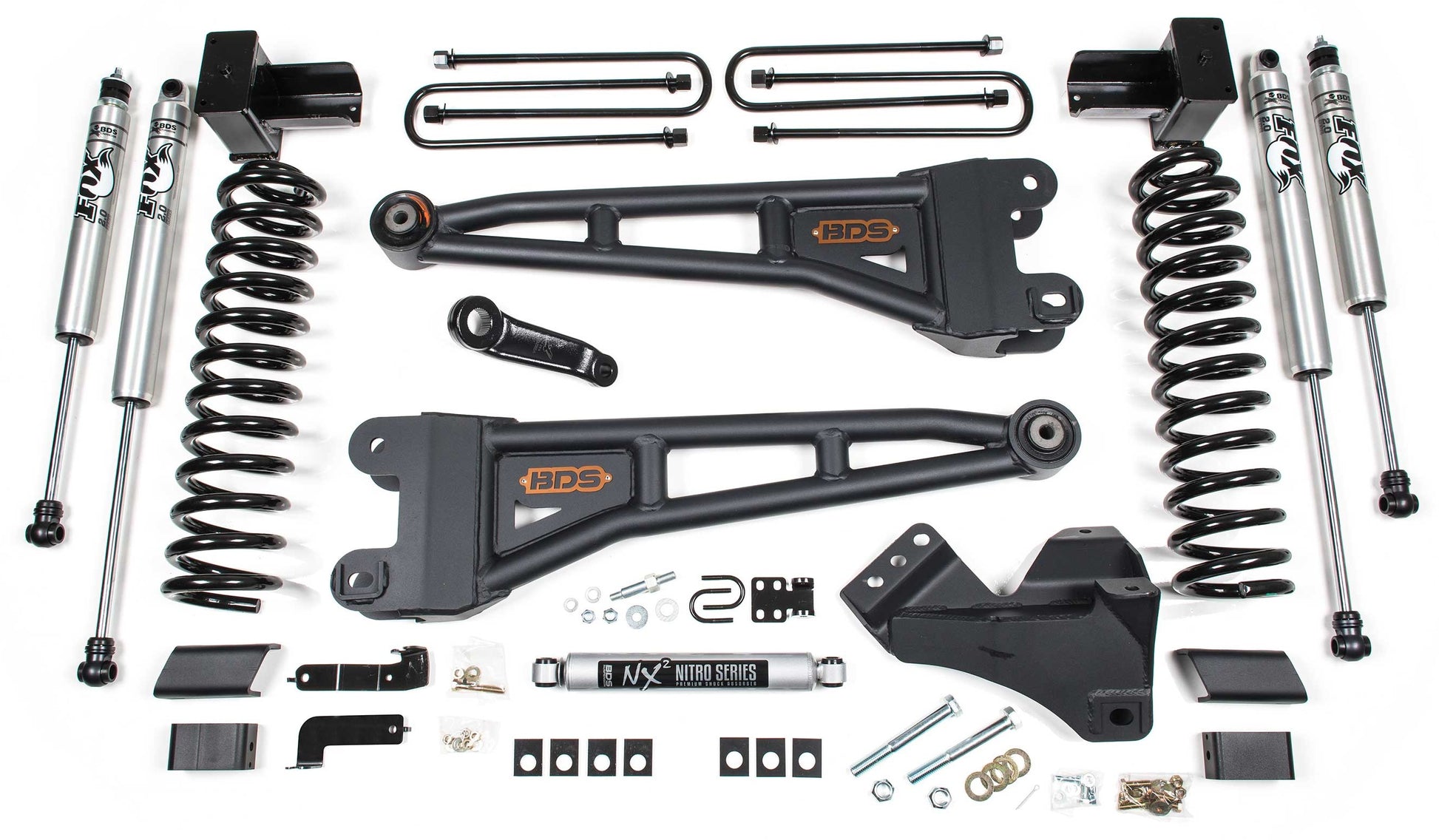

BRAND NEW BDS SUSPENSION 4" RADIUS ARM LIFT KIT WITH FOX 2.0 SERIES SHOCKS (PART #BDS1524FS) WITH A 5" BLOCK FOR 3-LEAF REAR MAIN

AT THE HEART OF THIS SYSTEM IS A PAIR OF HEAVY DUTY RADIUS ARMS BUILT TO WITHSTAND WHATEVER ABUSE YOU CAN THROW AT THEM. BUILT FROM 1-3/4" OD -10GA DOM TUBING WITH SUPPORT GUSSETS, THESE REPLACEMENT ARMS ARE FAR SUPERIOR TO THE FACTORY STAMPED STEEL UNITS. THEY USE A HIGH CLEARANCE DESIGN FOR EXTRA GROUND CLEARANCE AND ARE FORMED INWARD TO ALLOW FOR ADDITIONAL CLEARANCE OF OVERSIZED TIRES. THEY INCORPORATE FACTORY STYLE 3-1/4" RUBBER BUSHINGS TO MINIMIZE ROAD VIBRATIONS AND ALLOW FOR A LONG, MAINTENANCE-FREE BUSHING LIFE. THE ARMS BOLT INTO THE FACTORY MOUNTING POINTS AND REPOSITION THE FRONT AXLE TO CORRECT CASTER ANGLE.

THE ADDITIONAL 4" OF LIFT COMES FROM A PAIR OF FULL LENGTH PRORIDE COIL SPRINGS. THESE SPRINGS ARE FOR ENGINE SPECIFIC SPRING RATES FOR OPTIMAL PERFORMANCE AND A TRUE 4" OF LIFT. THESE PAIRED WITH PRECISION TUNED FOX 2.0 PERFORMANCE GAS SHOCKS OFFER A SMOOTH RIDE AND IMPROVED CONTROL OVER ROUGH TERRAIN. TO IMPROVE STEERING ANGLES A FORGED DROP PITMAN ARM IS SUPPLIED WITH AN INTEGRATED DRAG LINK FLIP. USED IN COMBINATION WITH THE 1/4" THICK HEAVY DUTY TRACK BAR DROP BRACKET WILL POSITION THE FRONT AXLE AND KEEP THE TRACK BAR ANGLE IN PHASE WITH THE STEERING FOR IMPROVED HANDLING. ALSO INCLUDED FOR THE FRONT SUSPENSION ARE A PAIR OF SWAY BAR RELOCATION BRACKETS, BUMP STOP EXTENSIONS, BRAKE LINE RELOCATION BRACKETS AND A NX2 SERIES STEERING STABILIZER WITH MOUNTING BRACKET.

OUT BACK A 5" FABRICATED BLOCK WITH INTEGRATED BUMP STOP WING IS USED IN PLACE OF THE FACTORY BLOCK ON THE F250 OR F350 TO LEVEL THE STANCE. LONGER BLACK E-COATED U-BOLTS AND FOX 2.0 SHOCKS ROUND OUT THIS 4" RADIUS ARM LIFT KIT.

FOX 2.0 PERFORMANCE SERIES SHOCKS HAVE BEEN TUNED AND TESTED BY BOTH FOX AND BDS SUSPENSION TO MAXIMIZE PERFORMANCE SPECIFIC TO EACH APPLICATION AND TO EVERY BDS SUSPENSION SYSTEM. THE BASIC SHOCK DESIGN IS BASED ON PROVEN FOX RACING SHOX RACE PRODUCTS, BUT RE-DESIGNED TO MAXIMIZE THE RIDE QUALITY, HANDLING, AND CONTROL OF YOUR BDS EQUIPPED TRUCK, WHETHER ON OR OFF THE ROAD.

NOTE: IF EQUIPPED WITH A 2-PIECE REAR DRIVESHAFT, A CARRIER BEARING DROP KIT MAY BE REQUIRED (BDS123402)

NOTE: 37 X 12.50 TIRES MAY REQUIRE MINOR TRIMMING

NOTE: SOME MODELS MAY BE FACTORY EQUIPPED WITH A 2-LEAF MAIN REAR LEAF SPRING PACK AND OTHERS A 3-LEAF MAIN. BE SURE TO ORDER THE CORRECT OPTION WHEN CUSTOMIZING YOUR KIT. IF YOUR TRUCK IS EQUIPPED WITH A FACTORY REAR SWAY BAR ADD: 123005

COMPATIBLE WITH:

• FORD:
• 2017-2019 F-250 SUPER DUTY 4WD DIESEL WITH 3-LEAF REAR MAIN
• 2017-2019 F-350 SUPER DUTY 4WD DIESEL WITH 3-LEAF REAR MAIN

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS SUSPENSION KIT HERE.
