BDS 2017-2019 F250,F350 4WD 2-LEAF 4" RADIUS ARM SUSP. LIFT,2" REAR,FOX COILOVER

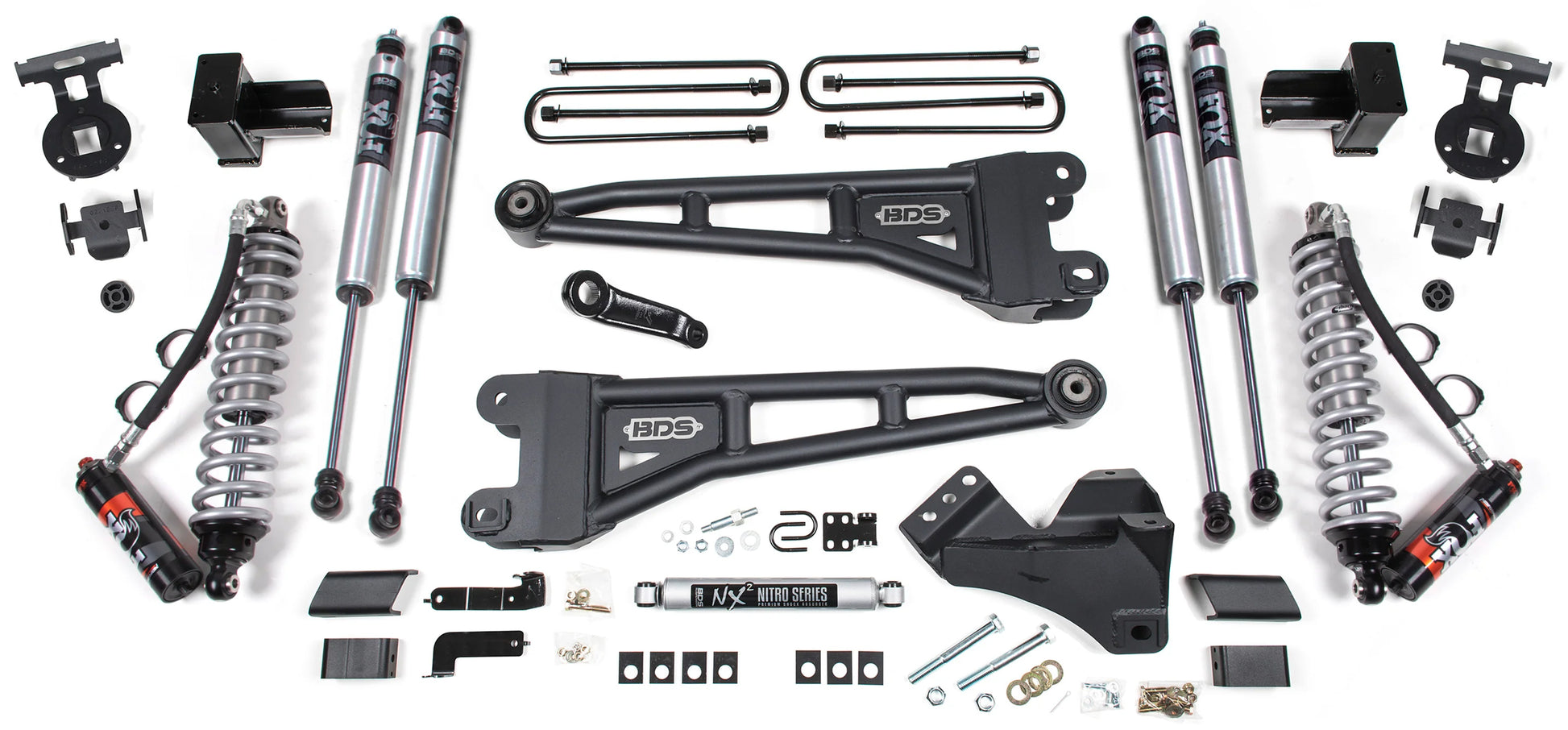

BRAND NEW BDS SUSPENSION 4" RADIUS ARM LIFT KIT WITH FOX 2.5 PERFORMANCE ELITE COILOVER CONVERSION (PART #BDS1520FPE) WITH A 5" BLOCK FOR REARS WITH 2-LEAF MAIN

BUILT TO OUTPERFORM, UPGRADE YOUR 2017-2019 FORD F250 AND F350 SUPER DUTY DIESEL POWERED TRUCK WITH THIS 4-INCH RADIUS ARM LIFT KIT AND FOX 2.5 PERFORMANCE ELITE COIL-OVER CONVERSION FROM BDS SUSPENSION. DESIGNED TO IMPROVE STANCE, PERFORMANCE, AND CAPABILITY, THIS KIT INCLUDES EVERYTHING NECESSARY TO SET YOUR TRUCK UP RIGHT WITH CLEARANCE FOR UP TO 37" TIRES.

IN THE FRONT, THE LIFT KIT INCLUDES DIESEL-SPECIFIC FOX 2.5 COIL-OVER SHOCKS, HEAVY DUTY REPLACEMENT RADIUS ARMS, FORGED DROP PITMAN ARM AND TRACK BAR BRACKET FOR STEERING CORRECTION, SWAY BAR RELOCATION, AND BRAKE LINE BRACKETS.

IN THE REAR, THIS KIT UTILIZES A HIGH-STRENGTH FABRICATED LIFT BLOCK, LONGER U-BOLTS, BRAKE LINE BRACKETS AND A MATCHING SET OF FOX PERFORMANCE SHOCKS

FOX PERFORMANCE ELITE COIL-OVER: FOX 2.5 PERFORMANCE ELITE SHOCKS OFFER NEXT LEVEL PERFORMANCE FOR ON-ROAD COMFORT AND OFF-ROAD COMFORT CAPABILITY. TUNED AND READY TO INSTALL RIGHT OUT OF THE BOX, THESE BOLT-ON 2.5-INCH DIAMETER SHOCKS ARE BUILT FOR ABUSE AND PACKED WITH RACE-PROVEN TECHNOLOGY. THEY INCLUDE A REMOTE RESERVOIR FOR ADDITIONAL FLUID CAPACITY TO KEEP YOUR SHOCKS RUNNING COOL SO YOU CAN PUSH THE LIMITS IN THE ROUGH TERRAIN. THE DSC ADJUSTER ADDS REMARKABLE VERSATILITY AND PRECISE TUNING WITH A SIMPLE TWIST OF EITHER TWO ADJUSTER KNOBS, OFFERING 10 SEPARATE LOW-SPEED AND 12 HIGH-SPEED COMPRESSION LEVELS, WITH A BLACK ANODIZED ALUMINUM RESERVOIR TO INCREASE COOLING EFFICIENCY.

HD RADIUS ARMS: IN PLACE OF THE FACTORY STAMPED STEEL RADIUS ARMS, BDS SUPPLIES A PAIR OF HIGH-STRENGTH TUBULAR RADIUS ARMS. THESE ARMS MOUNT INTO THE FACTORY LOCATION AND OFFER CASTER ADJUSTMENT FOR A WIDE RANGE OF LIFT HEIGHTS ALONG WITH AN OE-STYLE RUBBER BUSHING AT THE FRAME MOUNT FOR SMOOTH, QUIET, SERVICE-FREE OPERATION.

STEERING CORRECTION: TO OPTIMIZE STEERING GEOMETRY ONCE LIFTED, A FORGED DROP PITMAN ARM IS USED TO MINIMIZE THE STEERING ANGLE AND PAIR IT WITH A HEAVY DUTY TRACK BAR DROP BRACKET TO KEEP THEM IN PHASE THROUGH SUSPENSION TRAVEL WHILE RE-CENTERING THE FRONT AXLE.

REAR LIFT OPTION - 5" BLOCK WITH 2 LEAF MAIN SOME F250/350 FACTORY OPTIONS INCREASE THE MAIN LEAF PACK COUNT FROM 2 TO 3 LEAFS (THIS IS FOR TOP OVERLOAD OPTIONS ONLY). BE SURE TO VERIFY WHICH FACTORY LEAF SPRING CONFIGURATION YOUR VEHICLE HAS AND CHOOSE THE APPROPRIATE OPTION.

NOTE: IF EQUIPPED WITH A 2-PIECE REAR DRIVESHAFT, A CARRIER BEARING DROP KIT MAY BE REQUIRED (BDS123402)

NOTE: 37 X 12.50 TIRES MAY REQUIRE MINOR TRIMMING

NOTE: SOME MODELS MAY BE FACTORY EQUIPPED WITH A 2-LEAF MAIN REAR LEAF SPRING PACK AND OTHERS A 3-LEAF MAIN. BE SURE TO ORDER THE CORRECT OPTION WHEN CUSTOMIZING YOUR KIT

NOTE: IF YOUR TRUCK IS EQUIPPED WITH A FACTORY REAR SWAY BAR ADD: 123005

COMPATIBLE WITH:

• FORD:
• 2017-2019 F-250 SUPER DUTY 4WD DIESEL
• 2017-2019 F-350 SUPER DUTY 4WD DIESEL

FEATURES:

• EASY, 100% BOLT-ON INSTALLATION
• FOX 2.5 COIL-OVER MOUNTS IN FACTORY COIL BUCKET LOCATION
• ADDS ADDITIONAL SECONDARY FOX 2.0 SHOCK FOR MAX PERFORMANCE
• EIBACH COIL SPRINGS RIDE SMOOTH THROUGH THE ROUGHEST TERRAIN
• HEAVY DUTY TUBULAR STEEL RADIUS ARMS THAT CORRECT CASTER WHILE MAXIMIZING GROUND CLEARANCE
• TRACK BAR RELOCATION BRACKET AND PITMAN ARM MAINTAIN PROPER STEERING ANGLES FOR IMPROVED HANDLING
• FABRICATED STEEL BLOCKS PROVIDE LEVEL STANCE FROM FRONT TO REAR
• FOX SHOCKS ARE FULLY SERVICEABLE AND RESISTANT TO CORROSION AND HARSH ENVIRONMENTS
• AS WITH ALL BDS KITS, THESE RADIUS ARM SYSTEMS FOR THE FORD SUPER DUTY ARE BACKED BY FACTORY PROTECTION PLUS OFFERING YOU PEACE OF MIND OUT ON THE TRAIL OR WHEREVER YOUR NEXT ADVENTURE MAY BE. THIS INCLUDES A BDS NO FINE PRINT WARRANTY, ESC SYSTEM COMPATIBILITY AND A 5YEAR-60,000MILE DRIVETRAIN WARRANTY.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS SUSPENSION KIT HERE.
