BDS 2017-2024 F250/350 4WD GAS,DIESEL,2" LEVELING KIT,FOX 2.0 SHOCKS

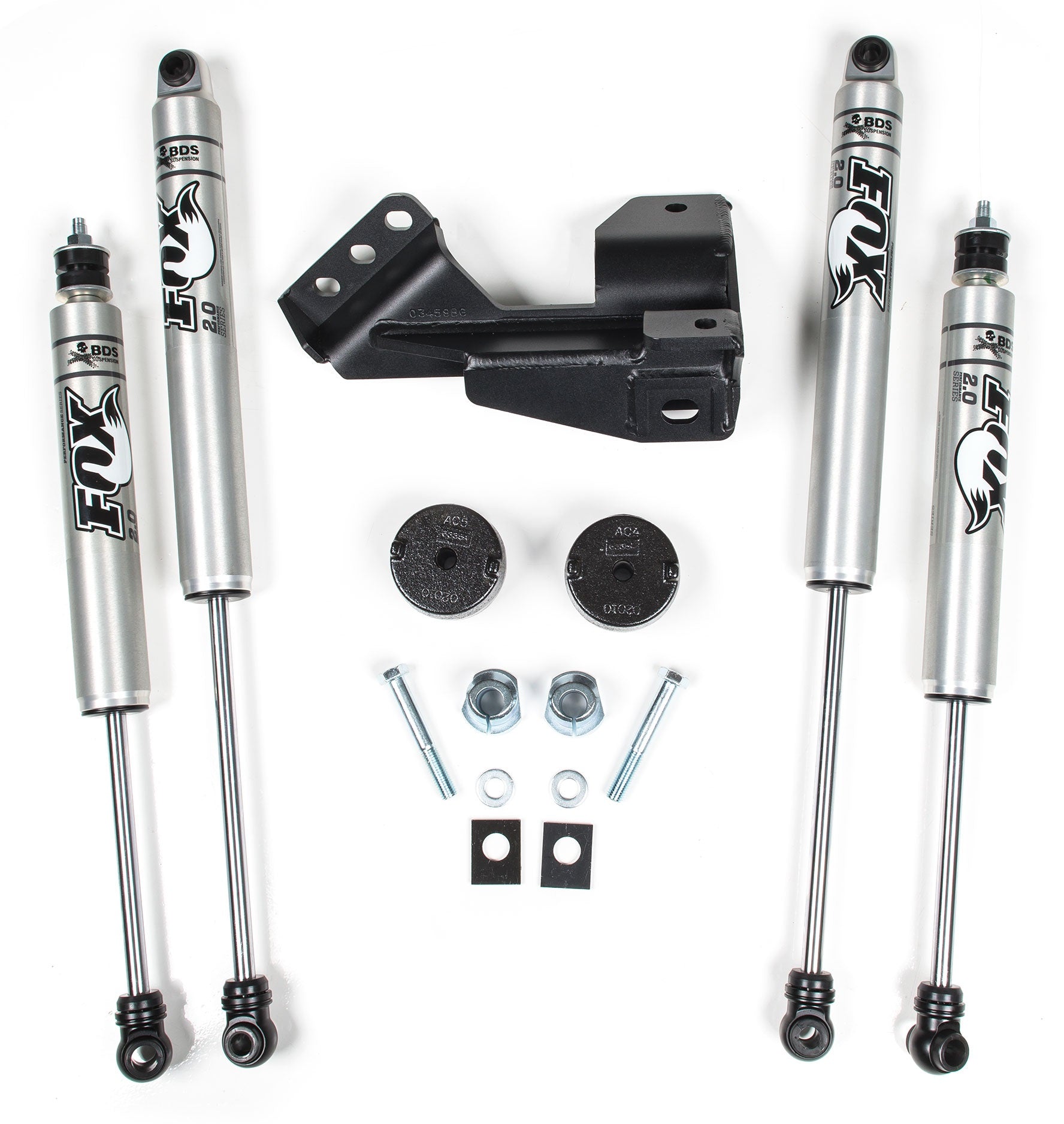

Brand New BDS 2 Inch Front Leveling Kit with Coil Spacers and Fox Shocks. Fits 2017-2024 Ford F250/F350 Super Duty 4WD (Part #BDS1519FS).

Level the stance of your 2017-2024 Ford F250 and F350 Super Duty truck by installing this 2-inch coil spacer leveling kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires at an affordable price.

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while re-centering the front axle.

Compatible with:

• Ford:

  • 2017-2024 F-250 Super Duty 4WD
  • 2017-2024 F-350 Super Duty 4WD

NOTE:

• 2024+ Ford Super Duty Only: This kit includes ball joint cams to achieve optimum performance both on and off-road.  For vehicles equipped with non-selectable passenger side hub-lock on the front axle along with these ball joint cams, it is required to replace the non-selectable with a selectable hub-lock.  Part number (PC3Z-3B396-A) is needed to prevent a grinding noise from the front axle for these applications.  If your vehicle is not factory equipped with them, you may also need vacuum lines (3C125-A and/or 3C124). You can reference Section 307-07A of the Workshop Manual or Bulletin SSM 52423 for more information. See installation instructions for additional Information.
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 17 x 9 and 4.5 in. Backspace, 35 x 12.5 with 18 x 9 and 4.5 in. Backspace & 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Features:

• Easy, 100% Bolt-on installation

• Maintains factory like ride quality
• FOX 2.0 Performance Series
• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Spacer
• Rear Lift Method: None
• Shocks Included: Yes
• Front Lift Height: 2"
• Rear Lift Height: 0"

You can view and download the assembly/instruction booklet here.
