BDS 2011-2016 FORD F-250,F-350 4WD,DIESEL,2.5" LIFT,4" BLOCK,FOX 2.5 COILOVERS

BDS 2011-2016 FORD F-250,F-350 4WD,DIESEL,2.5" LIFT,4" BLOCK,FOX 2.5 COILOVERS

STU BDS1510FPE

$4,112.60
$4,112.60
View full details

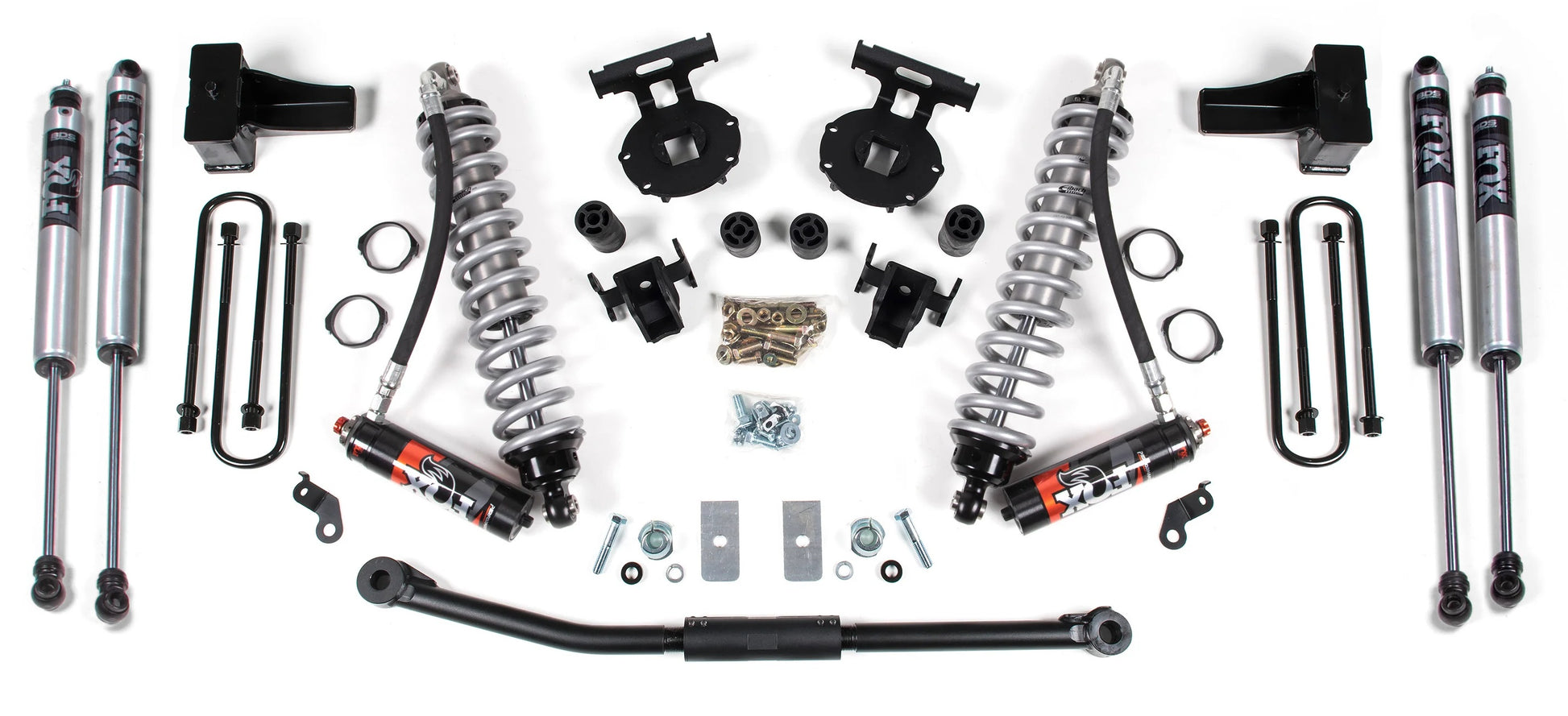

Brand New BDS Suspension 2.5" Lift Kit with Fox 2.5 Performance Elite Coilovers & 4" Block Kit (Part #BDS1510FPE).

Improve the ride, up the ante, and level out your 2011-2016 Ford F250 and F350 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit and FOX Performance Elite coilover conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes diesel-specific FOX 2.5 coilover shocks, high strength 1-3/8 inch solid steel track bar for steering correction, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block and longer u-bolts.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Diesel without Overload Springs
    • 2011-2016 F-350 Super Duty 4WD Diesel without Overload Springs

Notes:

  • No Block - Tail low stance (Purchase kit #BDS1927)
  • 4 Inch Block Kit - Level stance (Purchase kit #BDS1510)
  • 5 Inch Block Kit - Tail high stance (Purchase kit #BDS1925)
  • Models equipped with a 3-3/4" rear block from the factory do not require a rear block kit in order to achieve a more level stance.
  • Designed for Diesel models w/o top mounted overload rear springs
  • U-bolts for trucks with overloads required (Part #UBT4028 Qty 4).
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 17 x 9 and 5 in. Backspace, 35 x 12.5 with 18 x 9 and 5 in. Backspace, or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • FOX 2.5 Coilover mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to re-center the front axle
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 2.5"
  • Rear Lift Method: Block
  • Rear Lift Height: 4"

You can view and download the assembly instruction booklet here.
