BDS 2014 FORD F-150,2WD,6" LIFT KIT,CROSSMEMBER,BLOCK KIT,NITRO SHOCKS

BDS 2014 FORD F-150,2WD,6" LIFT KIT,CROSSMEMBER,BLOCK KIT,NITRO SHOCKS

STU BDS1505H

$1,783.65
$1,783.65
View full details

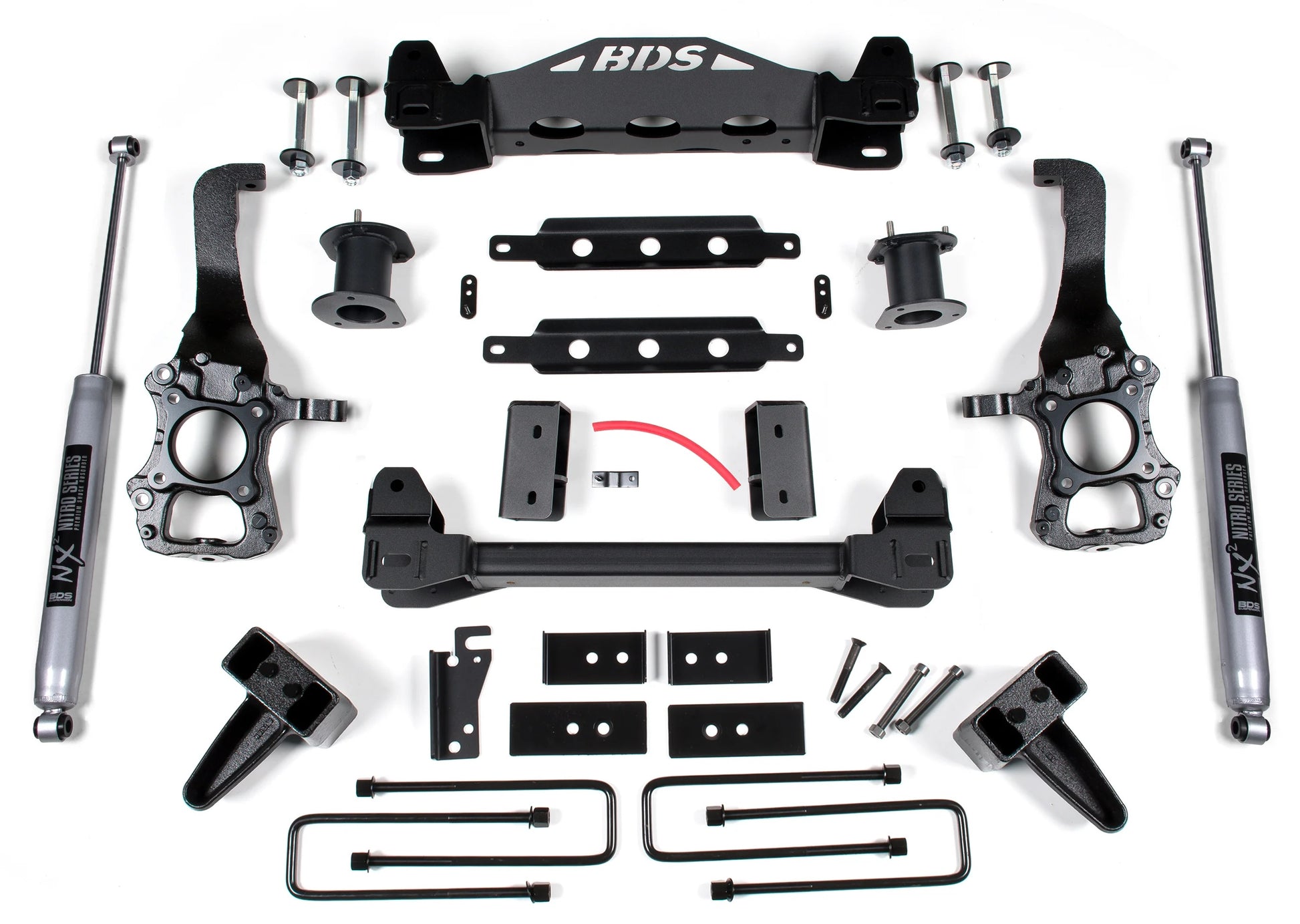

Brand New BDS Suspension 6" Lift Kit with NX Nitro Shocks & 5" Block Kit (Part #BDS1505H).

Improve the performance and capability of your 2014 Ford F150 2WD truck by installing a 6-inch suspension lift kit by BDS. Designed to improve stance, performance, and ability of the vehicle, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superior performance. The kit utilizes high-arched 1/4-inch thick steel crossmembers, top-mounted strut spacers, and a skid plate designed for off-road and on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, and skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear, a heavy duty crossmember and block kit is used.

Fits:

  • Ford:
    • 2014 F-150 2WD

Notes:

  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • E-brake bracket required for factory power steps (123018)
  • Block kits replace factory 1-1/4" block.
  • The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance.
  • Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  • Will not fit HD models (7 lug).
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.5 in. Backspace

Features:

  • High clearance crossmembers improve strength and off-road capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved off-road protection
  • Rear lift blocks and u-bolts to lift and level the stance

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 5"

You can view and download the assembly instruction booklet here.
