BDS 2014 FORD F-150,2WD,4" LIFT KIT,CROSSMEMBER,BLOCK KIT,NITRO SHOCKS

BDS 2014 FORD F-150,2WD,4" LIFT KIT,CROSSMEMBER,BLOCK KIT,NITRO SHOCKS

STU BDS1504H

$1,779.70
$1,779.70
View full details

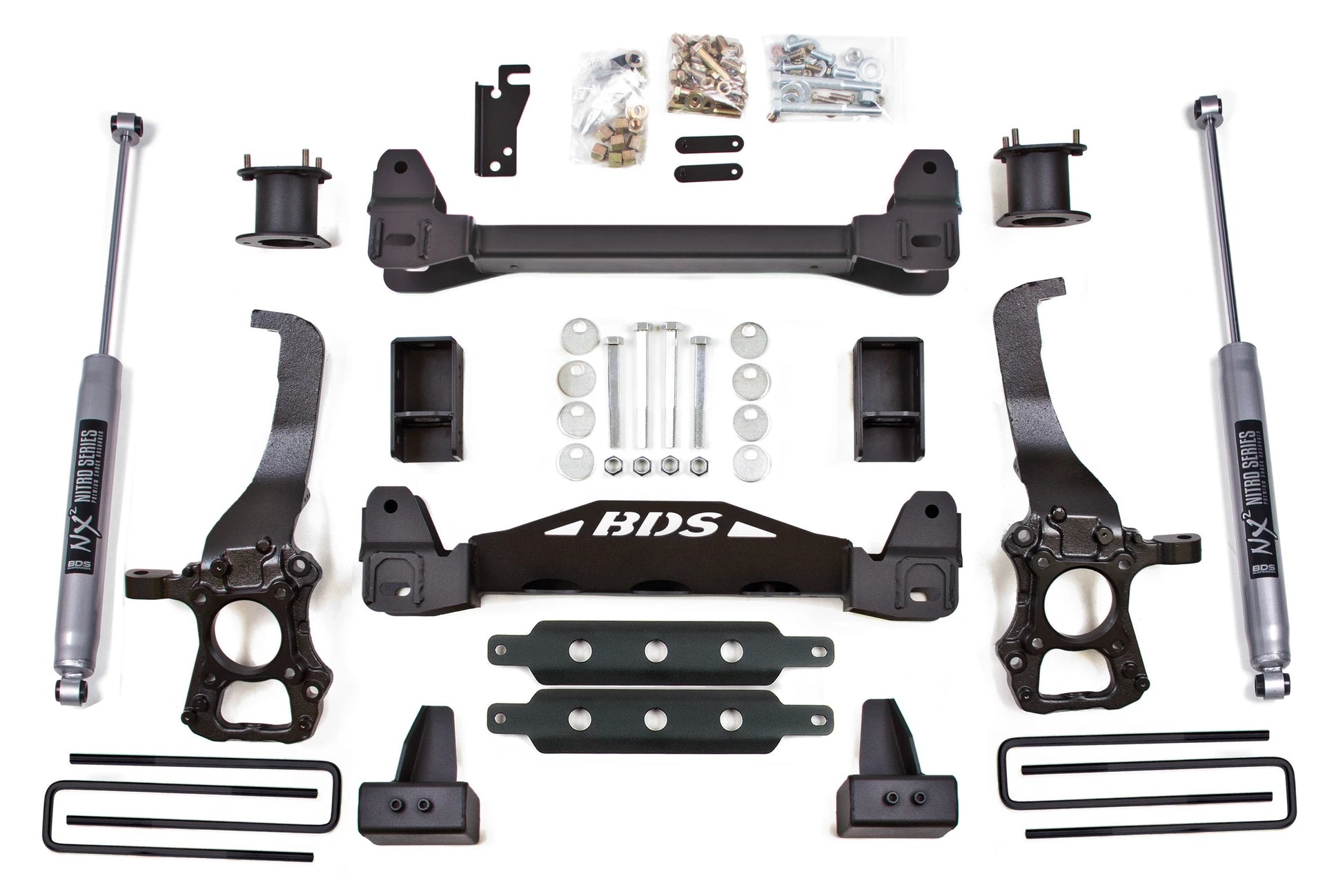

Brand New BDS Suspension 4" Lift Kit with NX Nitro Shocks & Crossmembers (Part #BDS1504H).

Improve the performance and capability of your 2014 Ford F150 2WD truck by installing a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and ability of the vehicle, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superior on-road handling characteristics. Up front, the kit utilizes high-arched, 1/4-inch-thick steel crossmembers and a skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear, BDS utilizes high-strength cast steel lift blocks and longer u-bolts to lift and level the stance.

Fits:

  • Ford:
    • 2014 F-150 2WD

Notes:

  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • E-brake bracket required for factory power steps (123018)
  • Will not fit HD models (7 lug).
  • For a level to tail low appearance use #023416 with Kit#1504H. Block kits replace factory 1-1/4" block.
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 4.5 in. Backspace, 37 x 12.5 with 18 x 9 and 5 in. Backspace, or 37 x 12.5 with 20 x 9 and 5.5 in. Backspace.

Features:

  • High clearance crossmembers improve strength and off-road capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved off-road protection
  • Rear lift blocks and u-bolts to lift and level the stance

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 4"

You can view and download the assembly instruction booklet here.
