BDS 2014 FORD F-150,4WD,4" LIFT KIT,CROSSMEMBER,4" BLOCK KIT,NITRO SHOCKS

BDS 2014 FORD F-150,4WD,4" LIFT KIT,CROSSMEMBER,4" BLOCK KIT,NITRO SHOCKS

STU BDS1502H

$1,894.65
$1,894.65
View full details

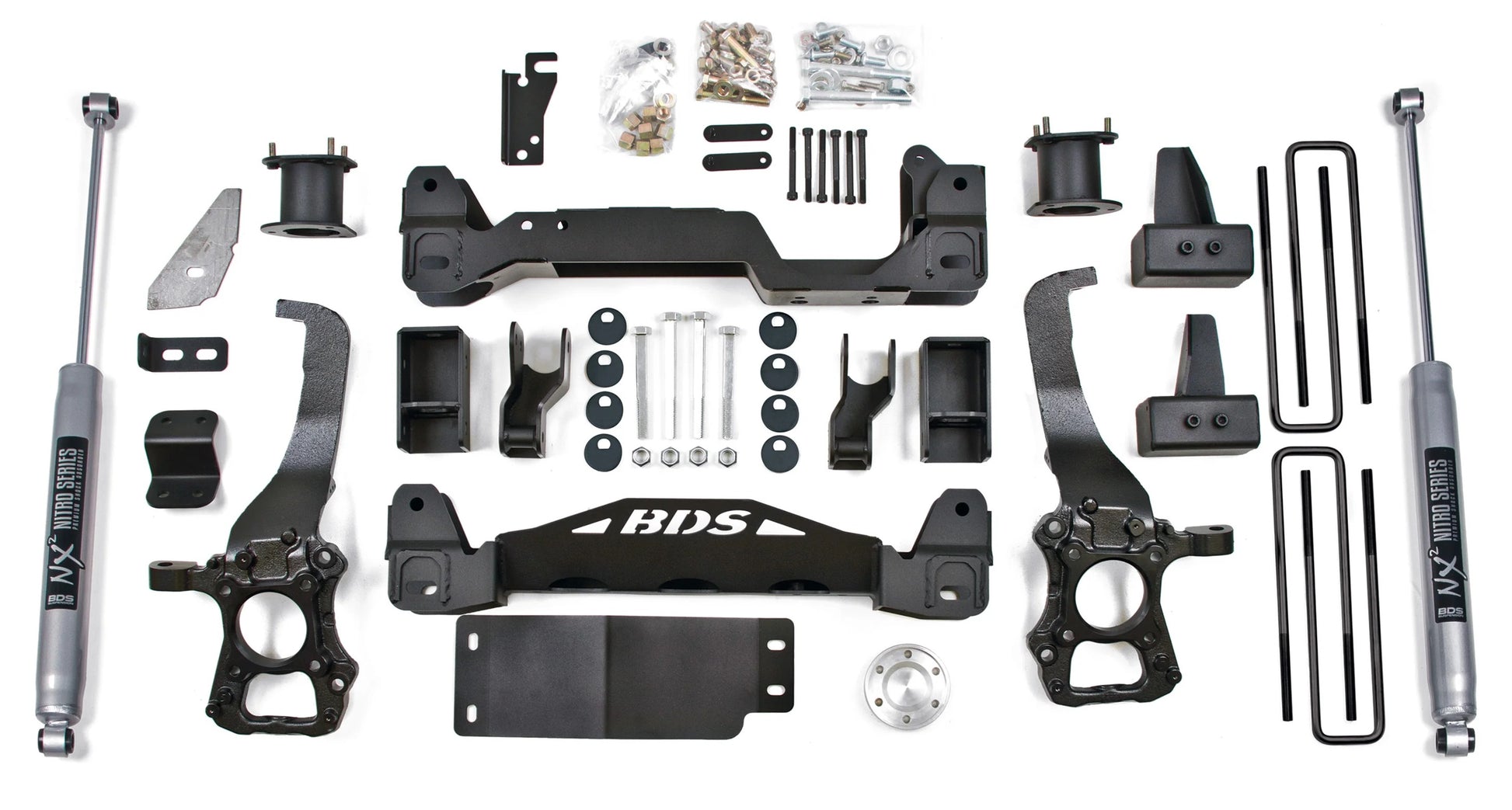

Brand New BDS Suspension 4" Lift Kit with NX Nitro Shocks & 4" Block Kit (Part #BDS1502H).

BDS enhances the performance and capability of the 2014 Ford F-150 4WD trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and ability, this kit includes everything necessary to set your vehicle off-road right with clearance for up to 35" tires. This kit leverages BDS's proven high-clearance design for enhanced ground clearance, strength, and off-road protection, while also correcting suspension and steering geometry for superior vehicle off-road on-road handling characteristics. Up front, the kit utilizes high-arched, 1/4-inch-thick steel crossmembers, multipiece differential relocation brackets, and a skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These, combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware, and more, provide a comprehensive front suspension lift ready for use and abuse. In the rear, BDS utilizes high-strength cast steel lift blocks and longer U-bolts to lift and level the stance.

Fits:

  • Ford:
    • 2014 F-150 4WD Gas

Notes:

  • Requires frame bracket modification and welding.
  • 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tire.
  • E-brake bracket required for factory power steps (123018) Block kits replace factory 1-1/4" block.
  • For a level-to-tail low appearance use #023415 in place of included 023425
  • Will not fit HD models (7 lug).
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 18 x 9 and 5 in. Backspace or 35 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • High clearance crossmembers improve strength and off-road capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved off-road protection
  • Rear lift blocks and u-bolts to lift and level the stance

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 4"
  • Rear Lift Method: Block
  • Rear Lift Height: 4"

You can view and download the assembly instruction booklet here.
