BDS 2011-2016 FORD F-250,F-350 SUPER DUTY 4WD,GAS,8" LIFT KIT,NITRO SHOCKS

BDS 2011-2016 FORD F-250,F-350 SUPER DUTY 4WD,GAS,8" LIFT KIT,NITRO SHOCKS

STU BDS1501H

$3,434.55
$3,434.55
View full details

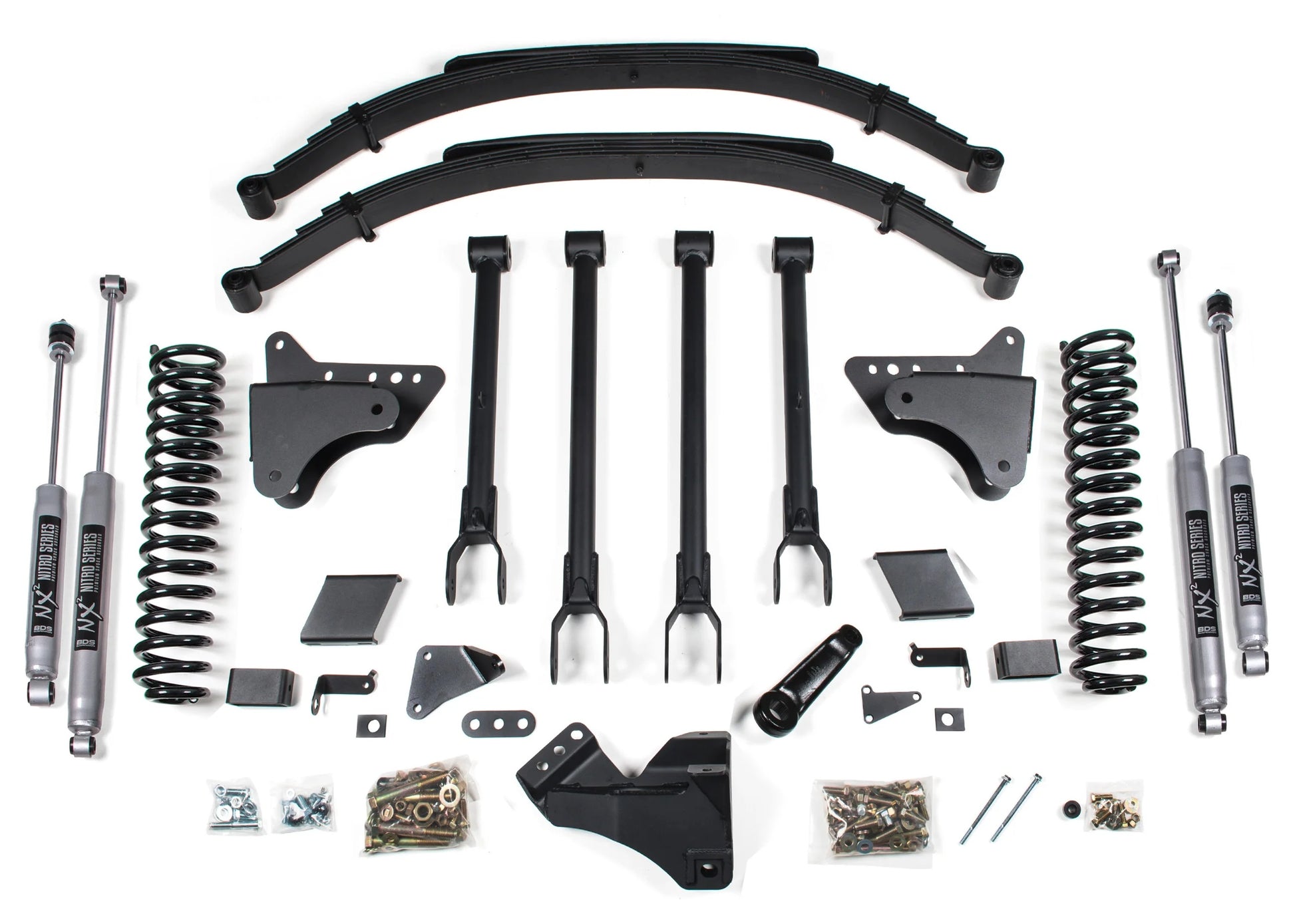

Brand New BDS Suspension 8" Lift Kit with NX Nitro Shocks & 4-Link (Part #BDS1501H).

Raise the bar with a BDS Suspension 8-inch lift kit and 4-link conversion for your 2011-2016 Ford Super Duty F250 and F350 gas truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. In the rear, this kit utilizes replacement GlideRide leaf springs with integrated overload leaf, u-bolts, and brake line brackets.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Gas
    • 2011-2016 F-350 Super Duty 4WD Gas

Notes:

  • Front bumper spacer kit may be required to run 38"x15.50" tires
  • If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required
  • Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
  • If equipped with a rear sway bar, #123009 is required.
  • U-bolts will not work on dually.
  • Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone
  • Recommended Tires & Wheels (Trimming may be required): 38 x 15.5 with 17 x 9 and 4.5 in. Backspace, 38 x 15.5 with 18 x 9 and 4.5 in. Backspace, or 38 x 15.5 with 20 x 10 and 4.5 in. Backspace

Features:

  • Pro-Ride dual-rate coil springs provide a remarkable ride through any terrain
  • Heavy-duty 4-Link control arms offer improved handling, stability, strength, and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Glideride leaf springs to provide full lift height and increased capacity with a built-in overload spring

NX2 Nitro Series:

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 8"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 6"

You can view and download the assembly instruction booklet here and here.
