BDS 2011-2016 FORD F-250,F-350 SUPER DUTY 4WD,DIESEL,8" LIFT KIT,FOX 2.0 SHOCKS

BDS 2011-2016 FORD F-250,F-350 SUPER DUTY 4WD,DIESEL,8" LIFT KIT,FOX 2.0 SHOCKS

STU BDS1500FS

$4,034.55
$4,034.55
View full details

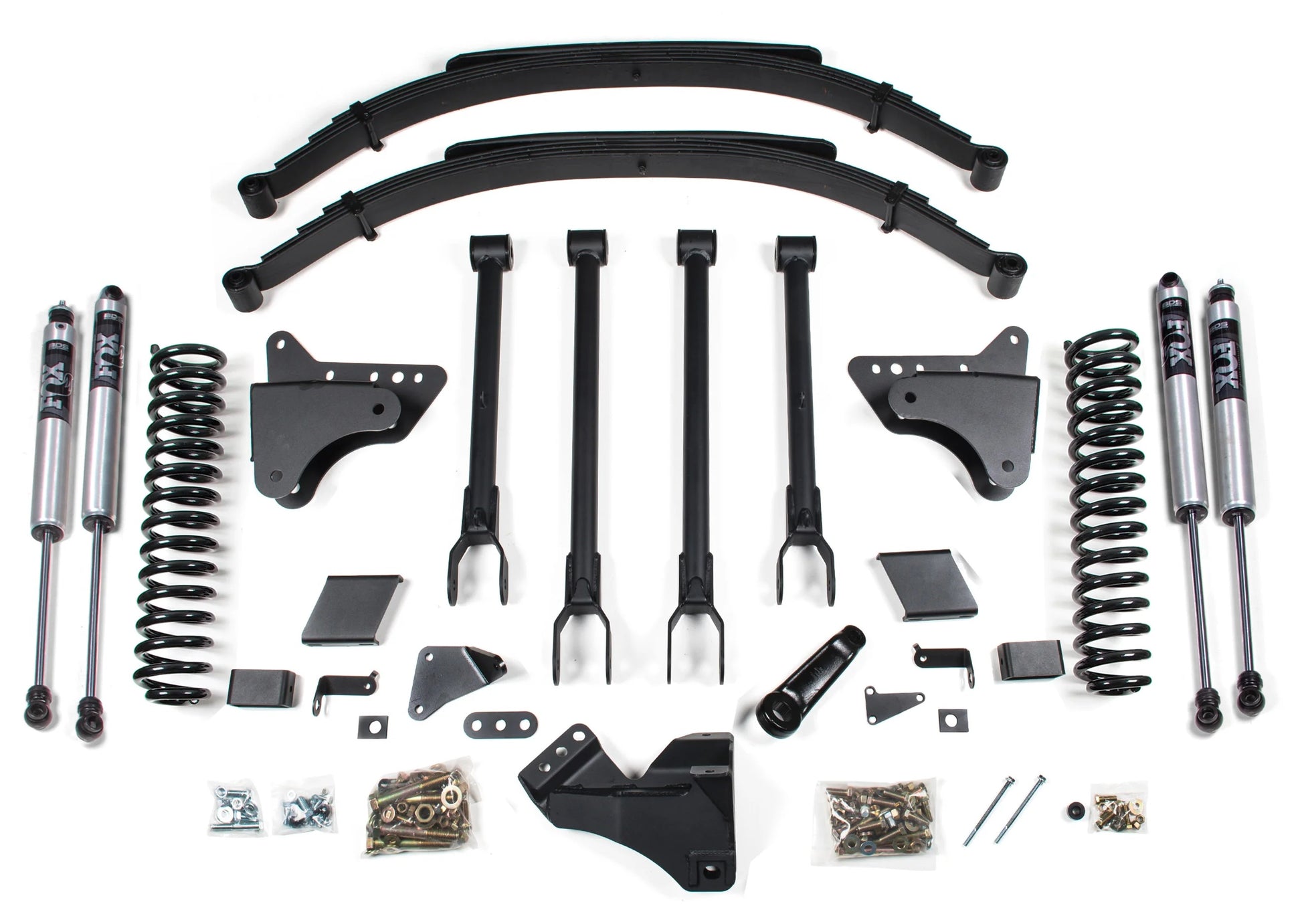

Brand New BDS Suspension 8" Lift Kit with Fox 2.0 Shocks & 4-Link (Part #BDS1500FS).

Go big with the BDS Suspension 8-inch lift kit and 4-link conversion for your 2011-2016 Ford Super Duty F250 and F350 diesel truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your vehicle up right with clearance for up to 38" tires. Up front, the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty 4-link control arms, a forged drop pitman arm, and a track bar bracket for steering correction, as well as sway bar relocation, and brake line brackets. In the rear, this kit utilizes replacement GlideRide leaf springs with integrated overload leaf, u-bolts, and brake line brackets.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Diesel
    • 2011-2016 F-350 Super Duty 4WD Diesel

Notes:

  • Front bumper spacer kit may be required to run 38"x15.50" tires
  • If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required
  • Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
  • If equipped with a rear sway bar, #123009 is required.
  • U-bolts will not work on dually.
  • Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone
  • Recommended Tires & Wheels (Trimming may be required): 38 x 15.5 with 17 x 9 and 4.5 in. Backspace, 38 x 15.5 with 18 x 9 and 4.5 in. Backspace, or 38 x 15.5 with 20 x 10 and 4.5 in. Backspace

Features:

  • Pro-Ride dual-rate coil springs provide a remarkable ride through any terrain
  • Heavy-duty 4-Link control arms offer improved handling, stability, strength, and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Glideride leaf springs to provide full lift height and increased capacity with a built-in overload spring

FOX 2.0 Performance Series:

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 8"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 6"

You can view and download the assembly instruction booklet here.
