BDS 2011-2016 FORD F-250,F-350 SUPER DUTY 4WD,DIESEL,8" LIFT,FOX 2.5 COILOVERS

BDS 2011-2016 FORD F-250,F-350 SUPER DUTY 4WD,DIESEL,8" LIFT,FOX 2.5 COILOVERS

STU BDS1500FPE

$6,247.50
$6,247.50
View full details

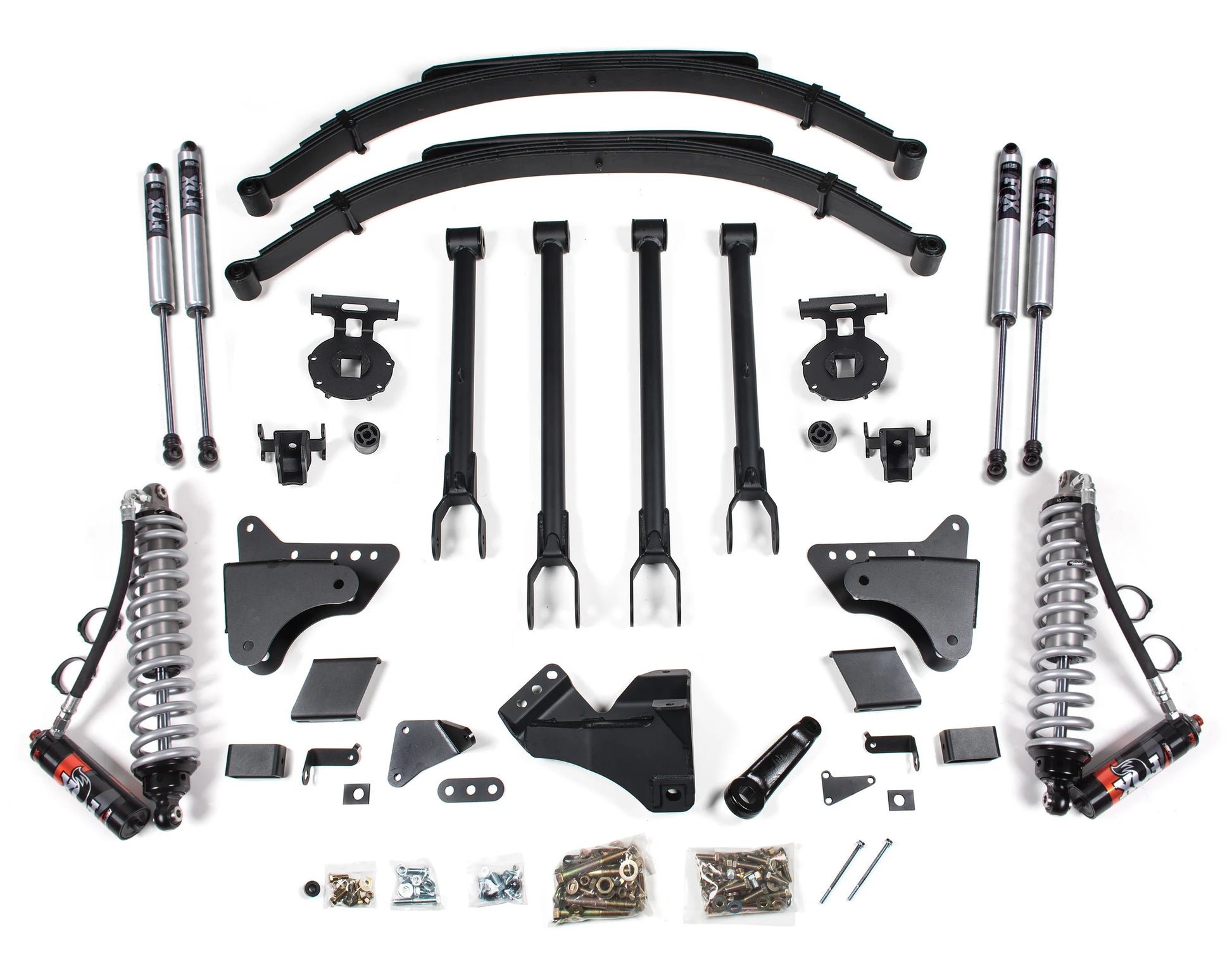

Brand New BDS Suspension 8" Lift Kit with Fox 2.5 Performance Elite Coilovers, Fox 2.0 Shocks, & 4-Link (Part #BDS1500FPE).

Turn heads with the BDS Suspension 8-inch lift kit and FOX 2.5 Performance Elite Coil-over plus 4-link conversion installed on your 2011-2016 Ford Super Duty F250 and F350 diesel truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy-duty 4-link control arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and custom-tuned FOX 2.0 secondary shocks. In the rear this kit utilizes a replacement GlideRide leaf springs with integrated overload leaf, u-bolts, brake line brackets and a matching set of FOX 2.0 Performance shocks.

Fits:

  • Ford:
    • 2011-2016 F-250 Super Duty 4WD Diesel
    • 2011-2016 F-350 Super Duty 4WD Diesel

Notes:

  • Exhaust modification may be required to clear the front driveshaft (gas only)
  • Front bumper spacer kit may be required to run 38"x15.50" tires
  • If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required
  • Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
  • If equipped with a rear sway bar, #123009 is required.
  • U-bolts will not work on dually.
  • Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone

Features:

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coil-Over
  • Front Lift Height: 8"
  • Rear Lift Method: Leaf Spring
  • Rear Lift Height: 6"

You can view and download the assembly instruction booklet here, here, and here.
