BDS 1987-1995 JEEP WRANGLER YJ,6" LIFT KIT,LEAF SPRING,FOX 2.0 SHOCKS

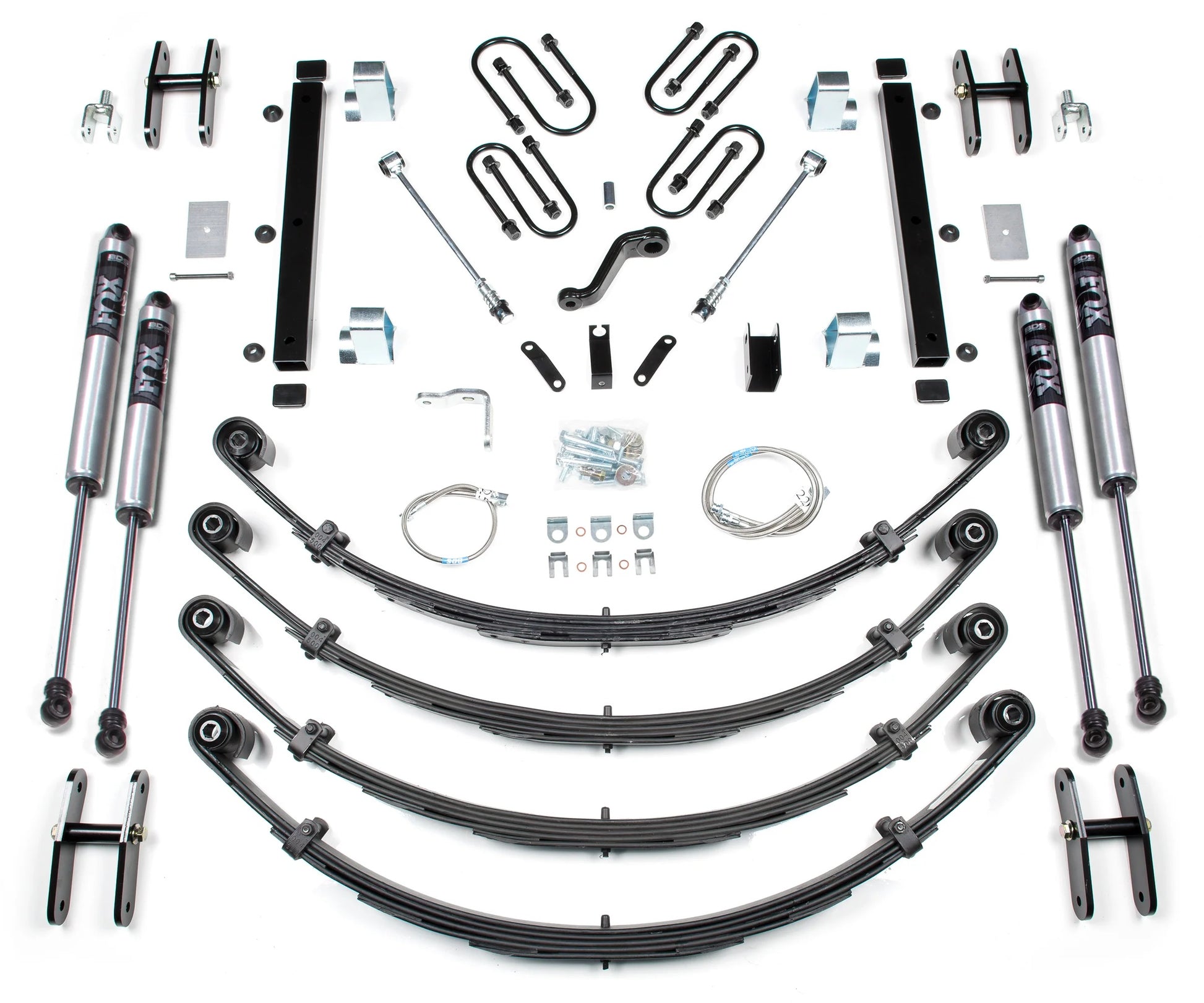

Brand New BDS Suspension 6" Lift Kit with FOX 2.0 Performance Series Shocks (Part #BDS1432FS).

BDS steps up the performance and capability of the 1987-1995 Jeep Wrangler YJ with a 6-inch suspension lift kit. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

This 6-inch lift kit includes front and rear Glide-Ride leaf springs with new u-bolts, front and rear track bar relocation brackets to center the axle, stainless steel braided brake lines, sway bar disconnects, power steering pitman arm, bump stop extensions, a transfer case drop kit to ease the drive line angles and 1" extended shackles to let your springs really flex.

Compatible with:

• Jeep:

  • 1987-1995 Wrangler YJ


Notes:

• May require a larger diameter driveshaft if equipped with a 41-1/2" front driveshaft.

• A slip yoke eliminator and dual cardan style rear driveshaft is required.

• Extended shackles are recommended to clear the military wraps on the springs.

• Pitman arms will NOT fit YJ models equipped with manual steering.
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Features:

• Glideride leaf springs to provide full lift height and increased capacity

• Front and rear track bar relocation brackets to center the axle

• Transfer case drop kit to ease the drive line angles


FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Leaf Spring

• Front Lift Height: 6"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 6"

You can view and download the assembly or instruction booklet here.
