BDS 2007-2011 JEEP WRANGLER JK 2 DOOR 3" LIFT KIT,FOX 2.0 SHOCKS

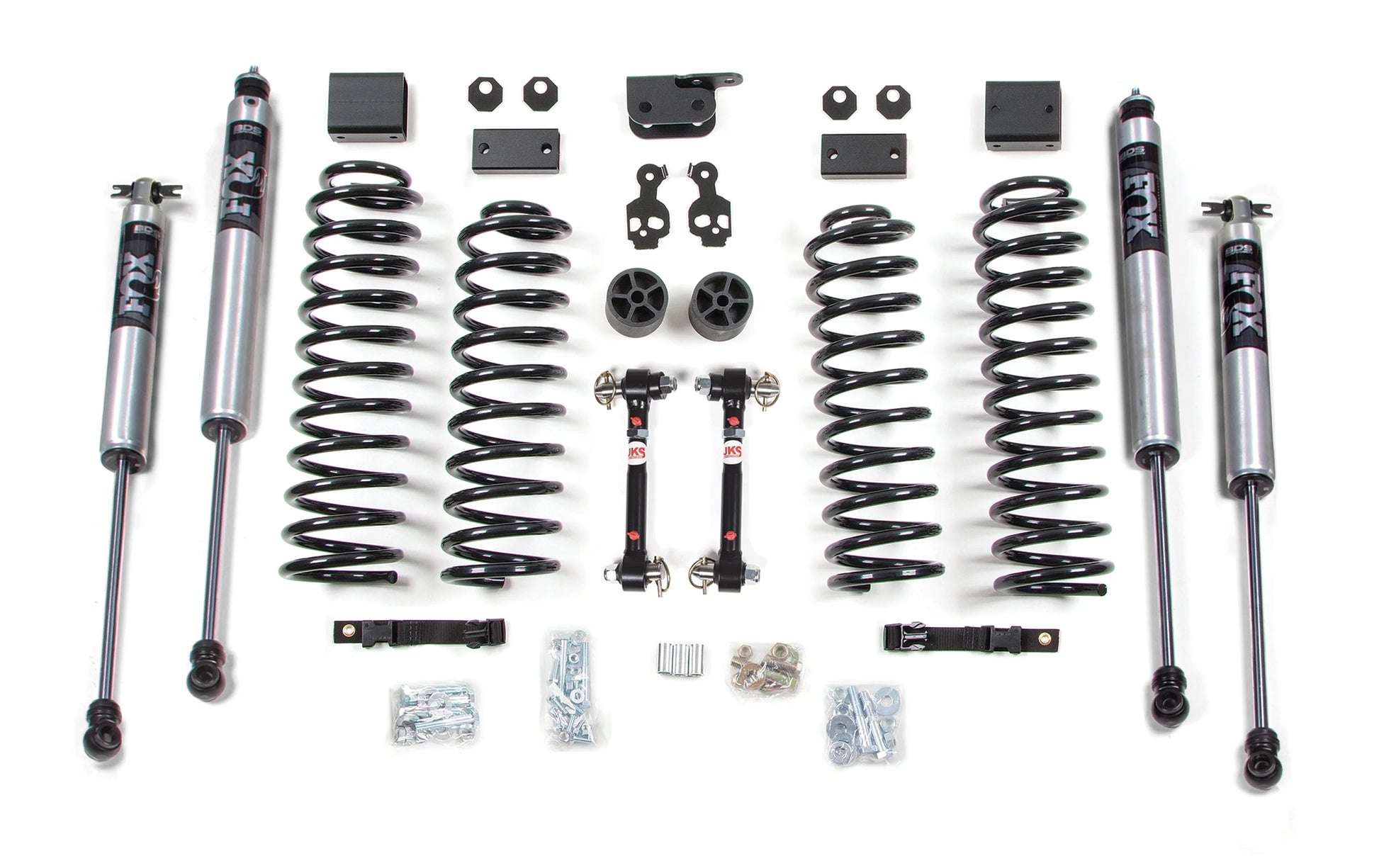

Brand New BDS Suspension 3" Lift Kit with FOX 2.0 Performance Series Shocks & Sway Bar Disconnects (Part #BDS1423FS).

Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 2 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes 3" Pro-Ride coil springs capable of full coil bind and 2" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links. In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift.

Compatible with:

• Jeep:

  • 2007-2011 Wrangler JK 2-Door


Notes:

• Fixed links required for use on Rubicon models with electronic disconnect.
• Exhaust modification may be required.

• This kit is right hand drive compatible.
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 16 x 8 and 4.5 in. Backspace


Features:

• ProRide coil springs offer improved ride quality and more articulation

• Sway bar quicker disconnects and extended rear link for improved off-road flex

• Rear track bar bracket repositions rear axle under vehicle

• Lower cam locks to correct caster for alignment

• Allows clearance for 35" tires

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Disconnects:

• Gain 30 percent more axle articulation by disconnecting your front sway bar

• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation

• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces

Specs:

• Front Lift Method: Coil Springs

• Rear Lift Method: Coil Springs
• Front Lift Height: 3"

• Rear Lift Height: 3"

You can view and download the assembly or instruction booklet here.
