BDS 2007-2018 JEEP WRANGLER JK 2 DOOR LONG ARM 5.5" LIFT KIT,FOX 2.0 SHOCKS

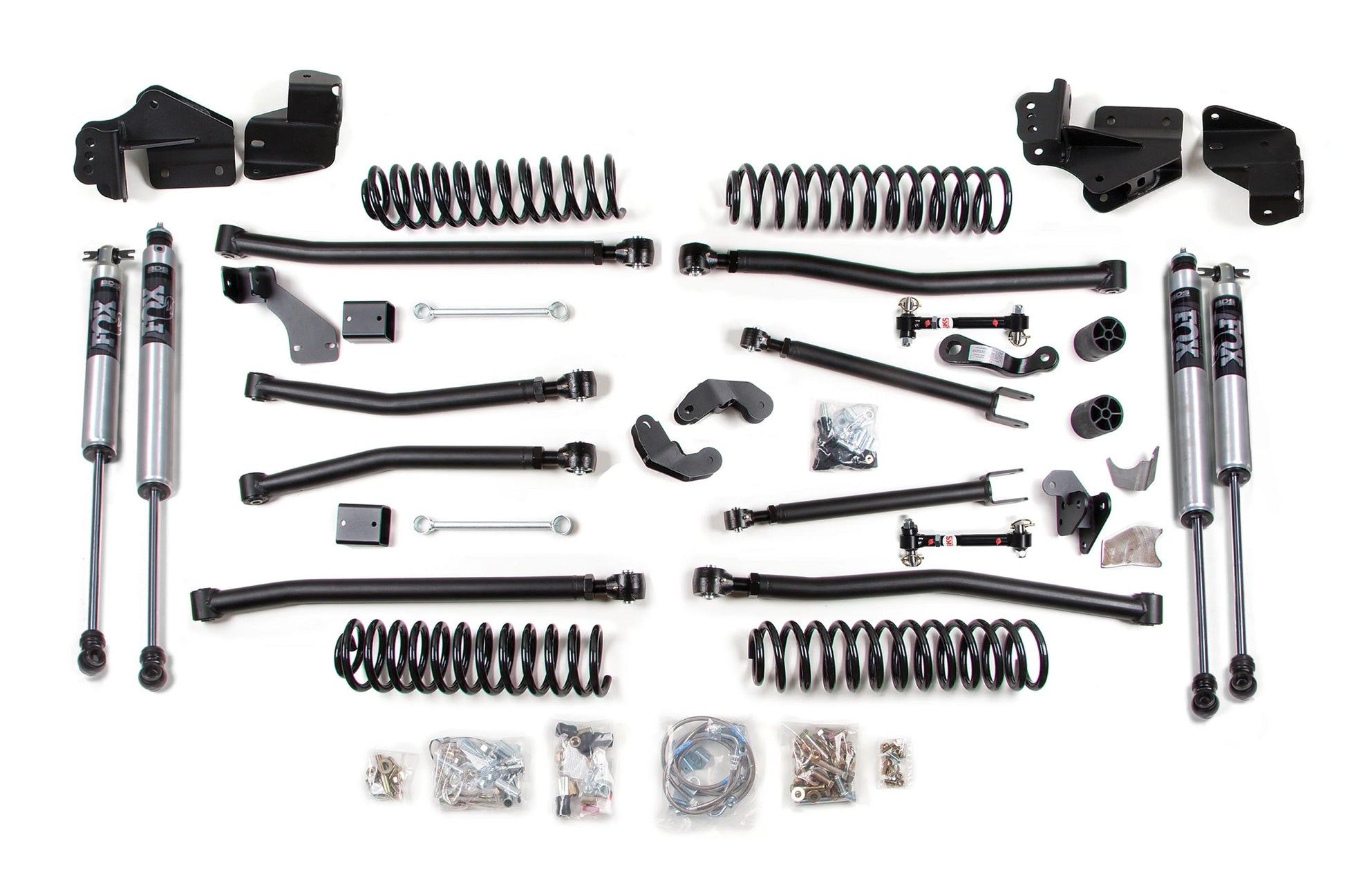

Brand New BDS Suspension 5.5 Inch Long Arm Lift Kit with Fox 2.0 Performance Shocks & Sway Bar Disconnects (Part #BDS1421FS).

Maximize the capability of your 2007-2018 Jeep Wrangler 2 Door with this 5.5-inch lift kit featuring a long-arm conversion from BDS Suspension. Designed to improve stance, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This 4-inch lift kit system enhances the factory 4-link by introducing a redesigned 4-link long arm, which improves articulation and offers better control throughout wheel travel. Up front, the lift kit includes new pivot mounts that are constructed from 1/4" thick steel and work with the latest heavy-duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4" Pro-Ride coil springs capable of full coil bind, and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, a front track bar relocation bracket, and a pitman arm, all designed to improve steering and handling geometry. In the rear, the kit utilizes new pivot mounts designed to work with the latest heavy-duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift.

Upgrading the standard control arms to a long arm adds strength, improves handling and takes off-road articulation to the next level. This upgrade consists of massive 1/4" steel frame mounted brackets to install the oversized upper and lower formed long arms. The arms are formed for maximum tire clearance and allow the stock control arm tabs to remain on the vehicle. The upper arms are solid stock while the heavy wall tubular lower arms utilize oversized greaseable polyurethane bushings for superior road vibration isolation.

Compatible with:

• Jeep:
• 2007-2018 Wrangler JK 4WD 2 Door

Notes:

• Fixed Links required for use on Rubicon models with electronic disconnect.
• Will not fit 2wd models.
• The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended.
• Exhaust modification may be required.

• Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 16 x 8 and 4.5 in. Backspace

Features:

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel
• ProRide coil springs offer improved ride quality and more articulation
• Rear track bar bracket repositions rear axle under vehicle
• Allows clearance for 37" tires

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Disconnects:

• Gain 30 percent more axle articulation by disconnecting your front sway bar

• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation

• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces

Specs:

• Front Lift Method: Coil Springs
• Front Lift Height: 5.5"
• Rear Lift Method: Coil Springs
• Rear Lift Height: 5"

You can view and download the complete assembly instruction booklets for this lift kit here and here.
