BDS 2007-2018 WRANGLER JK 2 DOOR LONG ARM 5.5" LIFT KIT,DISCONNECT,FOX 2.5 SHOCK

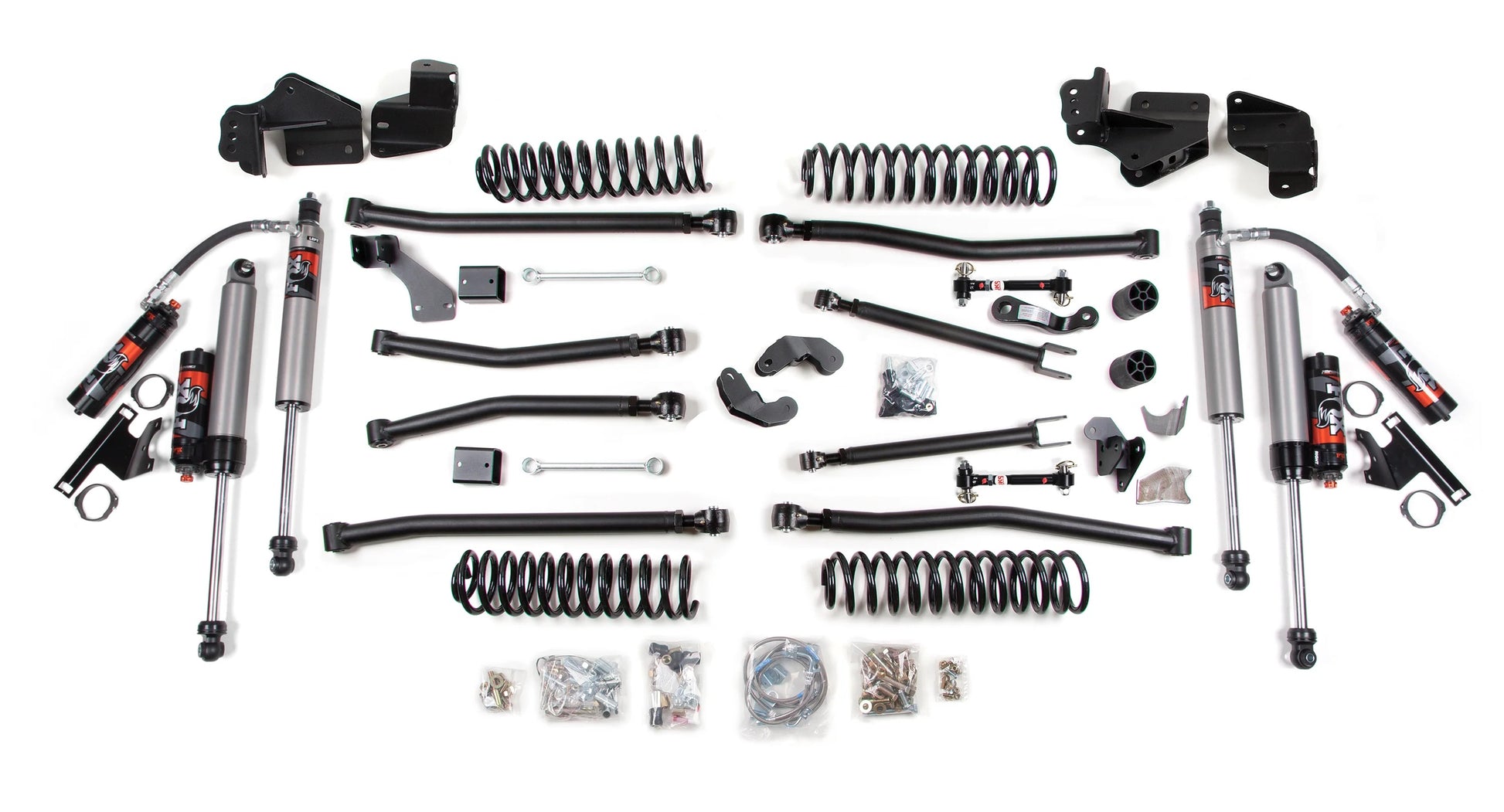

Brand New BDS Suspension 5.5" Lift Kit with FOX 2.5 Performance Series Shocks, Long Arms, & Sway Bar Disconnects (Part #BDS1421FPE).

Maximize the capability of your 2007-2018 Jeep Wrangler 2 Door with this 5.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This 5.5-inch lift kit system improves on the factory 4-link with a redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel.

Up front the lift kit includes new pivot mounts that are constructed from 1/4" thick steel and work with the new heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 5" Pro-Ride coil springs capable of full coil bind and 4" bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry.

In the rear the kit utilizes new pivot mounts designed to work with the new heavy duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 5.5" lift kit with your choice of specially tuned shocks to offer improved damper performance.

Upgrading the standard control arms to long arms adds strength, improves handling, and takes off-road articulation to the next level. This upgrade consists of massive 1/4" steel frame-mounted brackets to install the oversized upper and lower formed long arms. The arms are designed for maximum tire clearance, allowing the stock control arm tabs to remain in place on the vehicle. The upper arms are made of solid stock, while the heavy-wall tubular lower arms utilize oversized, greaseable polyurethane bushings for superior road vibration isolation.

Fits:

• Jeep:

• 2007-2018 Wrangler JK 4WD 2-Door (Except Rubicon)


Features:

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel

• ProRide coil springs offer improved ride quality and more articulation

• Sway bar quicker disconnects and extended rear link for improved off-road flex

• Rear track bar bracket repositions rear axle under vehicle

• Allows clearance for 37" tires

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use

Disconnects:

• Gain 30 percent more axle articulation by disconnecting your front sway bar

• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation

• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces

• Spherical bushings provide unrestricted 360 degrees of rotation and 11 degrees of misalignment capability

Specs:

• Front Lift Method: Coil Springs

• Front Lift Height: 5.5"
• Rear Lift Method: Coil Springs
• Rear Lift Height: 5"

You can view and download the assembly instruction booklet here and here.
