BDS 2007-2011 JEEP WRANGLER JK 4 DOOR 4.5" LIFT KIT,FOX 2.0 SHOCKS

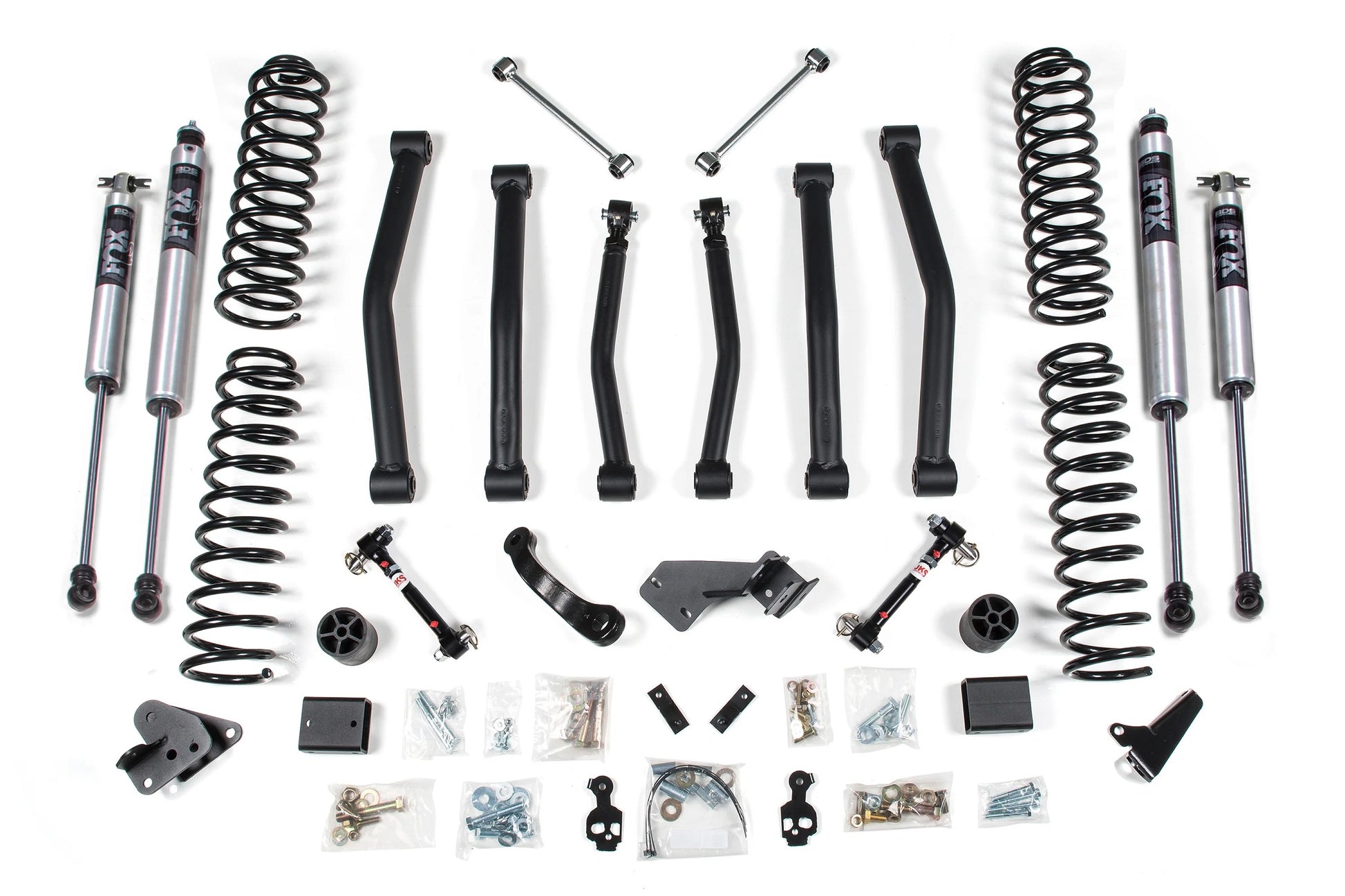

Brand New BDS Suspension 4.5" Lift Kit with FOX 2.0 Performance Series Shocks & Sway Bar Disconnects (Part #BDS1413FS).

Take your 2007-2011 Jeep Wrangler JK 4 Door to the next level and improve the ride with this 4.5-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front the lift kit includes 4" Pro-Ride coil springs capable of full coil bind and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed length lower control arms with OE grade rubber bushings that re-position the front axle for proper alignment. In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle this kit includes fixed length rear lower control arms and adjustable rear upper arms.

Compatible with:

• Jeep:

  • 2007-2011 Jeep Wrangler JK 4WD 4-Door


Notes:

• Will not fit 2wd models.
• Fixed links required for use on Rubicon models with electronic disconnect.
• The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan. Replacement of the front driveshaft is recommended.
• Exhaust modification may be required.

• Recommended Tires & Wheels (Trimming May Be Required) 37 x 12.5 with 16 x 8 and 4.5 in. Backspace


Features:

• ProRide coil springs offer improved ride quality and more articulation

• Sway bar quicker disconnects and extended rear link for improved off-road flex

• New control arms to properly control the front and rear axle positions

• Rear track bar bracket repositions rear axle under vehicle

• Allows clearance for 37" tires

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Disconnects:

• Gain 30 percent more axle articulation by disconnecting your front sway bar
• Convenient grease fittings ensure easy bushing lubrication for smooth, silent operation
• Stainless tapered mounting posts and self-align bushings allow you to connect or disconnect on unlevel surfaces

Specs:

• Front Lift Method: Coil Springs

• Front Lift Height: 4.5"
• Rear Lift Method: Coil Springs
• Rear Lift Height: 4"

You can view and download the assembly or instruction booklet here, here, and here.
