BDS 2007-2011 JEEP WRANGLER JK 4 DOOR 3" LIFT KIT,FOX 2.5 PERFORMANCE SHOCKS

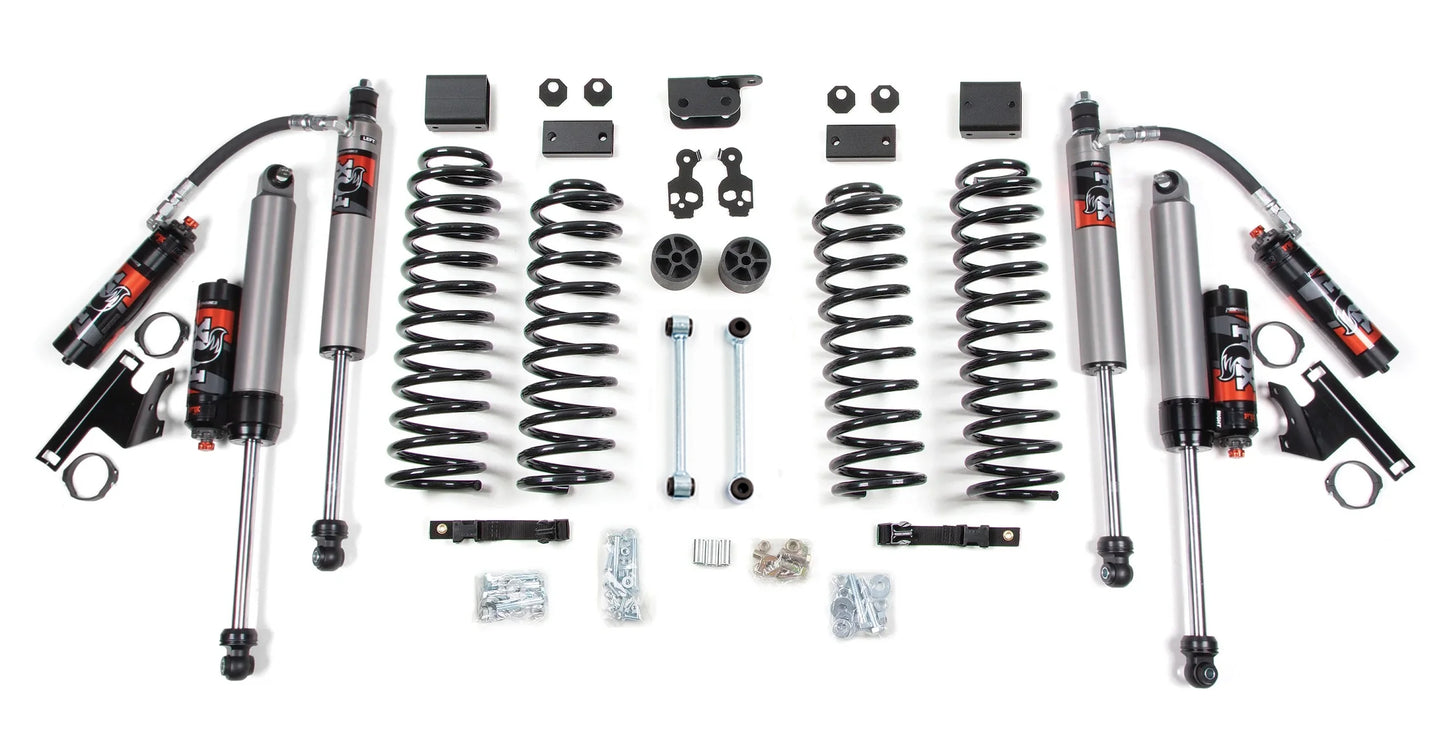

Brand New BDS Suspension 3" Lift Kit with FOX 2.5 Performance Series Shocks & Fixed Sway Bar Links (Part #BDS1412FPE).

Upgrade the ride and style of your 2007-2011 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes 3" Pro-Ride coil springs capable of full coil bind and 2" bump stop extensions to control the compression travel, but increase wheel travel. Also included are brake line brackets, alignment cams to fine tune front caster angles, and sway bar links. In the rear the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift.

Compatible with:

• Jeep:

  • 2007-2011 Wrangler JK 4-Door


Notes:

• Fixed links required for use on Rubicon models with electronic disconnect.

• This kit is right hand drive compatible.
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 16 x 8 and 4.5 in. Backspace


Features:

• ProRide coil springs offer improved ride quality and more articulation
• Rear track bar bracket repositions rear axle under vehicle

• Lower cam locks to correct caster for alignment

• Allows clearance for 35" tires
• Fixed Sway Bar Links

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities

• Easily adjust your shock for terrain, load and speed

• 2.5-inch Impact extruded aluminum body

• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft

• External reservoir design separates shock oil from the high-pressure nitrogen

• DSC - Dual Speed Compression Adjuster comes standard

• Fully serviceable for a lifetime of use


Fixed Links:

• Improves handling with proper sway bar operating angle

• Heavy-duty steel construction with zinc finish

• Polyurethane hourglass bushings for long life and quiet operation

Specs:

• Front Lift Method: Coil Springs
• Front Lift Height: 3"

• Rear Lift Method: Coil Springs
• Rear Lift Height: 3"

You can view and download the assembly or instruction booklet here.
