BDS 2007-2018 JEEP WRANGLER JK 4 DOOR LONG ARM 4.5" LIFT KIT,FOX 2.0 SHOCKS

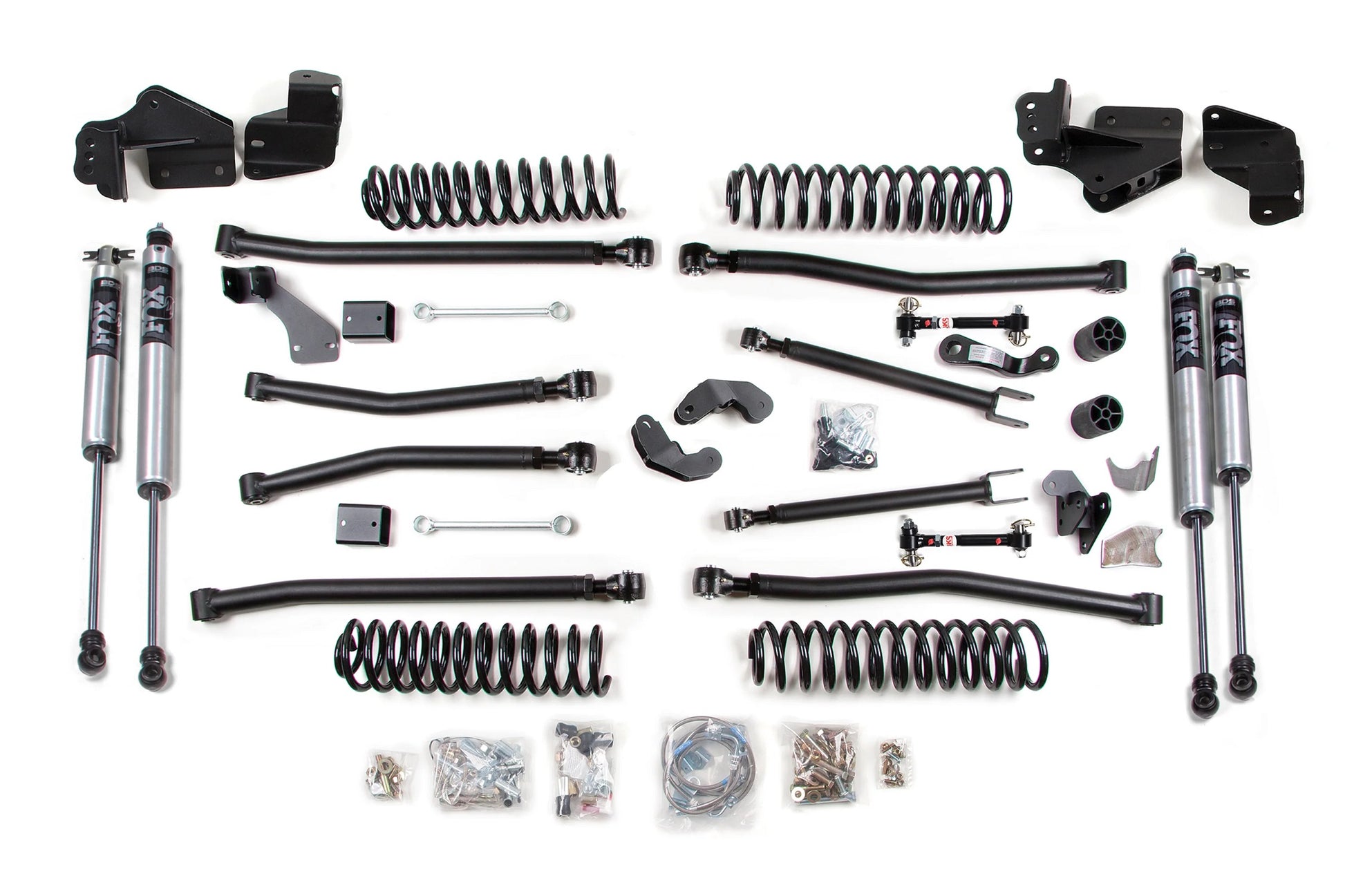

Brand New BDS Suspension 4.5" Lift Kit with FOX 2.0 Performance Series Shocks & Long Arm Conversion (Part #BDS1407FS).

Maximize the capability of your 2007-2018 Jeep Wrangler 4 Door with this 4.5-inch lift kit with long arm conversion from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This 4-inch lift kit system improves on the factory 4-link with a redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel.

Up front the lift kit includes new pivot mounts that are constructed from 1/4" thick steel and work with the new heavy duty lower flex arms and adjustable upper flex arms to optimize handling characteristics, 4" Pro-Ride coil springs capable of full coil bind and 3" bump stop extensions to control the compression travel, but increase wheel travel. Also included are braided stainless steel brake lines, sway bar links, and front track bar relocation bracket and pitman arm to improve the steering and handling geometry. In the rear the kit utilizes new pivot mounts designed to work with the new heavy duty lower flex arms and adjustable upper flex arms, Pro-Ride coil springs, sway bar drop brackets, and a rear frame mounted track bar relocation bracket to correct axle shift.

Compatible with:

• Jeep:

  • 2007-2018 Wrangler JK 4WD 4-Door


Notes:

• Will not fit 2WD models.

• The front and rear driveshafts are maxed out at full droop. The front driveshaft boot can contact the transmission pan at extreme articulation on some models. Replacement of the front and rear driveshafts are recommended.

• Exhaust modification may be required.
• Recommended Tires & Wheels (Trimming May Be Required) 37 x 12.5 with 16 x 8 and 4.5 in. Backspace


Features:

• Redesigned 4-link long arm to improve articulation and offer better control throughout wheel travel

• ProRide coil springs offer improved ride quality and more articulation

• Sway bar quicker disconnects and extended rear link for improved off-road flex

• Rear track bar bracket repositions rear axle under vehicle

• Allows clearance for 37" tires

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body

• Internal floating piston (IFP) monotube design

• CNC machined 6061-T6 aluminum mounting ends

• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft

• Race-developed high-flow piston design

• Application-specific valving to maximize performance

• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Coil Springs

• Front Lift Height: 4.5"
• Rear Lift Method: Coil Springs
• Rear Lift Height: 4"

You can view and download the assembly or instruction booklet here.
