BDS 2012-2018 JEEP WRANGLER JK,4-DOOR,4.5" LIFT KIT,FIXED LINKS,FOX 2.0 SHOCKS

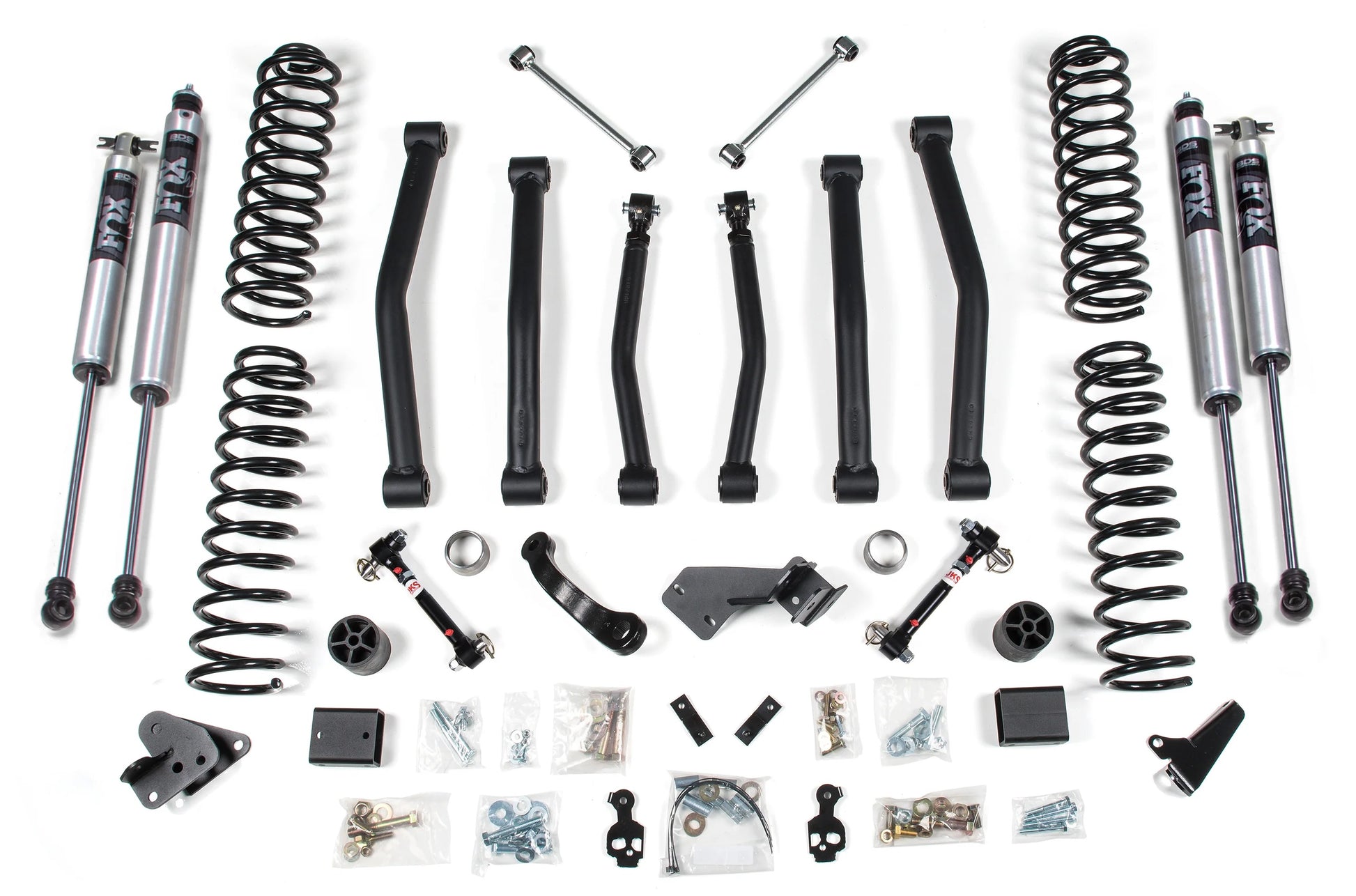

Brand New BDS Suspension 4.5" Lift Kit with FOX 2.0 Performance Series Shocks & Fixed Sway Bar Links (Part #BDS1406FS).

Take your 2012-2018 Jeep Wrangler JK 4 Door to the next level and improve the ride with this 4.5-inch lift kit from BDS Suspension. Designed to strengthen stance, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. Up front, the lift kit includes 4" Pro-Ride coil springs, capable of full coil bind, and 3" bump stop extensions to control compression travel while increasing wheel travel. Also included are brake line brackets, sway bar links, a front track bar relocation bracket, and a pitman arm, all designed to improve steering and handling geometry. The front suspension in this 4-inch lift kit is finished off with fixed-length lower control arms featuring OE-grade rubber bushings, which reposition the front axle for proper alignment. In the rear, the kit utilizes Pro-Ride coil springs, sway bar drop brackets, and a rear frame-mounted track bar relocation bracket to correct axle shift. For proper rear axle position and pinion angle, this kit includes fixed-length rear lower control arms and adjustable rear upper arms.

Compatible with:

• Jeep:

  • 2012-2018 Wrangler JK 4WD 4-Door

Notes:

• Will not fit 2wd models.
• Fixed links required for use on Rubicon models with electronic disconnect.
• The front driveshaft is maxed out at full droop and on certain models the driveshaft boot can contact the transmission pan.
• Exhaust modification may be required.
• Recommended Tires & Wheels (Trimming may be required): 37 x 12.5 with 16 x 8 and 4.5 in. Backspace

Features:

• ProRide coil springs offer improved ride quality and more articulation
• New control arms to properly control the front and rear axle positions
• Rear track bar bracket repositions rear axle under vehicle

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Fixed Links:

• Improves handling with proper sway bar operating angle
• Heavy-duty steel construction with zinc finish
• Polyurethane hourglass bushings for long life and quiet operation

Specs:

• Front Lift Method: Coil Springs
• Front Lift Height: 4.5"
• Rear Lift Method: Coil Springs
• Rear Lift Height: 4"

You can view and download the assembly or instruction booklet here, here, here, and here.
