BDS 1988-1991 CHEVY,GMC 1/2 TON SUV,4" LIFT KIT,ADD-A-LEAF,NITRO SHOCKS

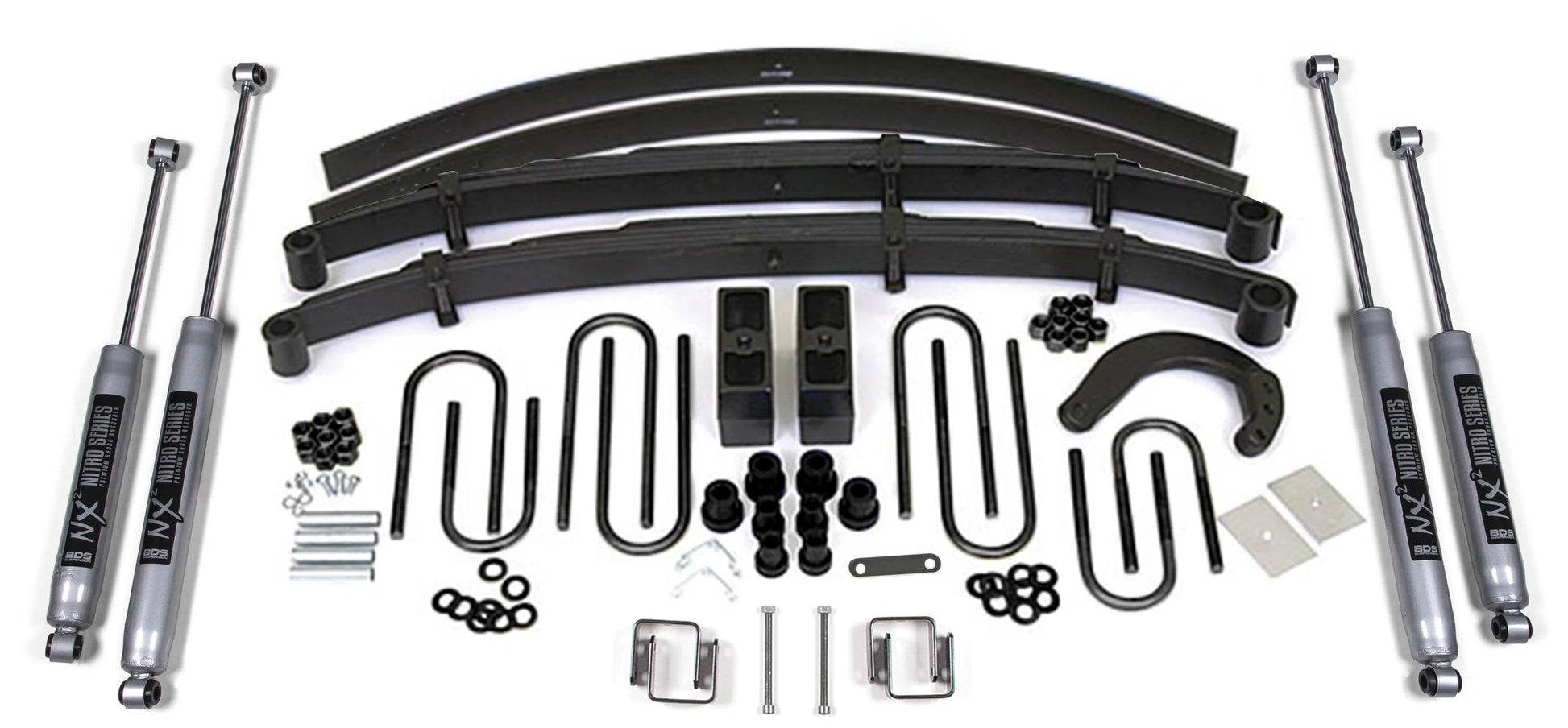

Brand New BDS Suspension 4" Lift Kit with NX Nitro Series Shocks, 4" Block Kit, & Add-A-Leaf (Part #BDS139H).

Designed to improve stance, performance, and capability. BDS Suspension has designed this 4-inch lift kit for your 1988-1991 Chevy K5 Blazer and GMC K5 Jimmy. This kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm for steering correction, and brake line brackets. In the rear this kit utilizes a high-strength lift block and longer u-bolts.

Compatible with:

• Chevrolet:
  • 1988-1991 Blazer

  • 1988 V10 Suburban
  • 1989-1991 V1500 Suburban
• GMC:
  • 1988-1991 Jimmy 4WD

Notes:

• The 1/2 ton commonly came with a factory 52" eye to eye rear leaf spring. However, some were produced with a 56" rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.

• If equipped with a factory front sway bar, order the front sway bar shackle link kit.

• Some vehicle came with factory front dual shocks. If you wish to replace the factory duals, you must order additional two auxiliary shocks.

• #001408 comes with OE style rubber bushings installed.

• Exhaust modification may be required to clear front driveshaft.
• Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Features:

• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks and add-a-leaf provide level stance from front to rear


NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Leaf Spring
• Front Lift Height: 4"
• Rear Lift Method: Block & Add-A-Leaf
• Rear Lift Height: 4"

You can view and download the assembly or instruction booklet here.
