BDS 1977-1987 CHEVY,GMC 3/4 TON TRUCK,SUV,8" LIFT KIT,LEAF SPRING,FOX 2.0 SHOCKS

Brand New BDS Suspension 8" Lift Kit with Fox 2.0 Performance Series Shocks & Leaf Springs (Part #BDS134FS).

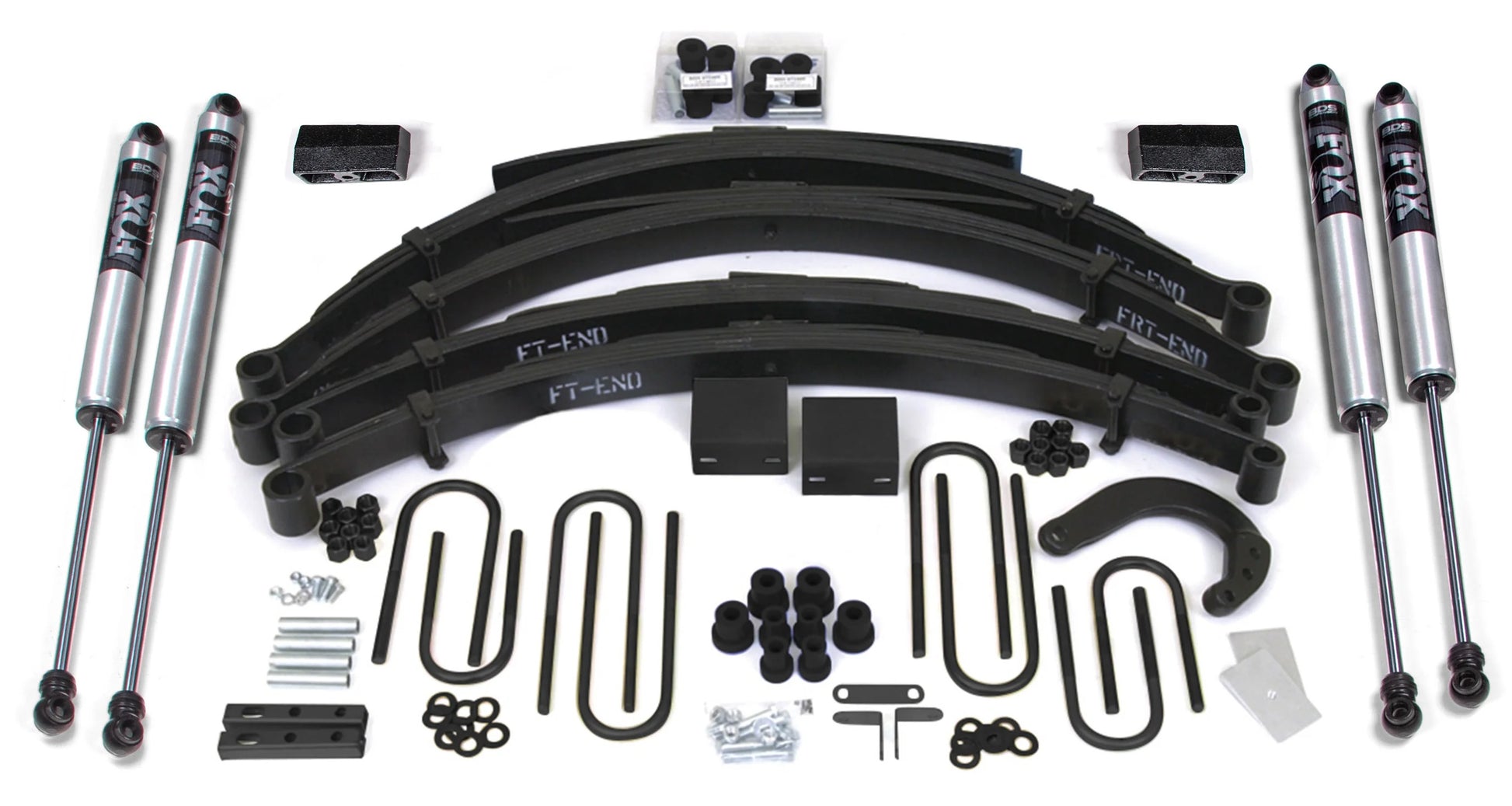

Go big with your 1977-1987 Chevy and GMC 3/4 ton truck or SUV to raise the bar to new heights with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm and 3" steering block for steering correction, brake line brackets, and sway bar drop brackets. In the rear this kit utilizes a set of Glide-Ride leaf springs for the ultimate performance on and off road and new u-bolts.

Compatible with:

• Chevrolet:
  • 1987 Blazer
  • 1977-1986 K5 Blazer 4WD
  • 1977-1986 K20
  • 1977-1986 K20 Suburban
  • 1987 V20
  • 1987 V20 Suburban
• GMC:
  • 1977-1987 Jimmy 4WD
  • 1977-1978 K25
  • 1977-1978 K25 Suburban
  • 1979-1986 K2500
  • 1979-1986 K2500 Suburban
  • 1987 V2500
  • 1987 V2500 Suburban

Notes:

• Both driveshafts may need to be lengthened.

• Aftermarket extended brake lines are required for installation.

• Exhaust modification may be required to clear the front driveshaft.

• Emergency brake cable extension kit may be required.

• #001608 come with OE style rubber bushings installed.

• The 3/4 ton commonly came with a factory 56" eye to eye rear leaf spring. However, some were produced with a 52" rear spring. This kit will not work with 52" rear springs. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.

• If equipped with a factory front sway bar, order the front sway bar shackle link kit.

• Some vehicle came with factory front dual shocks. If you wish to replace the factory duals, you must order additional two auxiliary shocks.
• Recommended Tires & Wheels (Trimming May Be Required) 38 x 13.5 with 15 x 10 and 3.5 in. Backspace

Features:

• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling


FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Leaf Spring
• Front Lift Height: 8"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 6"

You can view and download the assembly or instruction booklet here, here, and here.
