BDS 2023-2026 FORD F-450 2.5" LIFT KIT WITH RADIUS ARMS & FOX 2.5 ELITE SHOCKS

BDS 2023-2026 FORD F-450 2.5" LIFT KIT WITH RADIUS ARMS & FOX 2.5 ELITE SHOCKS

STU BDS1307FPE

$7,299.99
$7,299.99
View full details

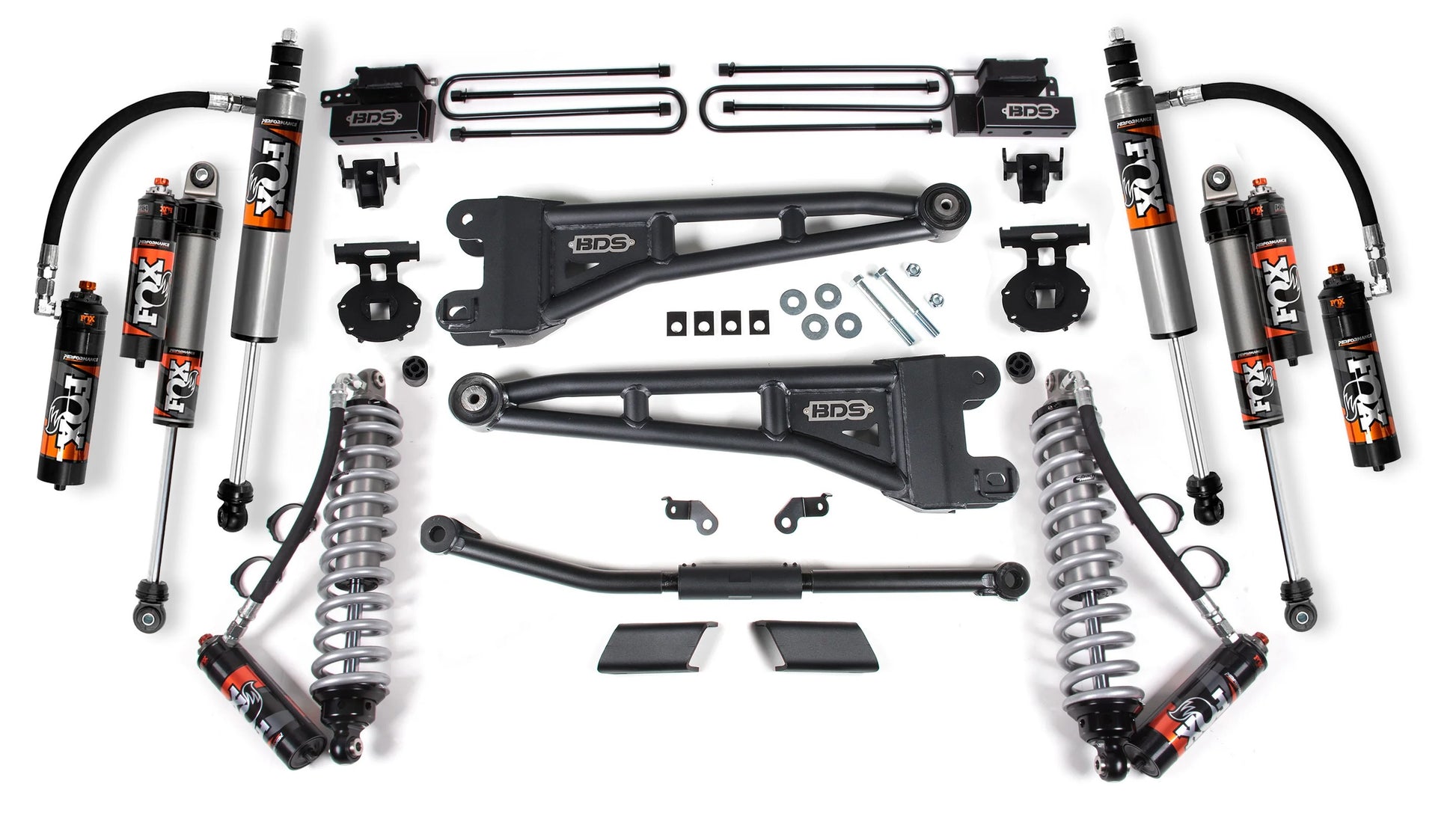

Brand New BDS Suspension 2.5" Radius Arm Lift Kit with Fox 2.5 Performance Elite Coilovers, Rear Fox 2.5" Shocks, & Blocks (Part #BDS1307FPE).

Build the ultimate 2023-2026 Ford F450 Super Duty diesel powered truck with this 2.5-inch radius arm lift kit with FOX 2.5 Performance Elite coilover shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific FOX 2.5 coilover shocks, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and secondary FOX 2.5 Performance Elite shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of FOX 2.5 Performance Elite shocks.

Fits:

  • Ford:
    • 2023-2026 F-450 4WD

Notes:

  • Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
  • Installation requires a torque wrench capable of 405 ft-lbs.
  • Recommended Tires & Wheels (Trimming may be required): Max Tire Size: 35x12.50, Front Wheel: 20x8.25, 8.76" BS, Rear Outer: 20x8.25, -3.33" BS, and Rear Inner: 20x8.25, 9.11" BS

Features:

  • FOX 2.5 Coilover mounts in factory coil bucket location
  • Adds additional secondary FOX 2.5 Performance Elite shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear

FOX 2.5 Performance Elite Series:

  • Increased off-road capabilities
  • Easily adjust your shock for terrain, load and speed
  • 2.5-inch Impact extruded aluminum body
  • Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
  • External reservoir design separates shock oil from the high-pressure nitrogen
  • DSC - Dual Speed Compression Adjuster comes standard
  • Fully serviceable for a lifetime of use

Specs:

  • Front Lift Method: Coilover
  • Front Lift Height: 2.5"
  • Rear Lift Method: Block
  • Rear Lift Height: 1"

You can view and download the assembly instruction booklet here.
