BDS 2023-2026 FORD F-450 2.5" LIFT KIT WITH FOX 2.0 PERFORMANCE SHOCKS

BDS 2023-2026 FORD F-450 2.5" LIFT KIT WITH FOX 2.0 PERFORMANCE SHOCKS

STU BDS1306FS

$2,465.72
$2,465.72
View full details

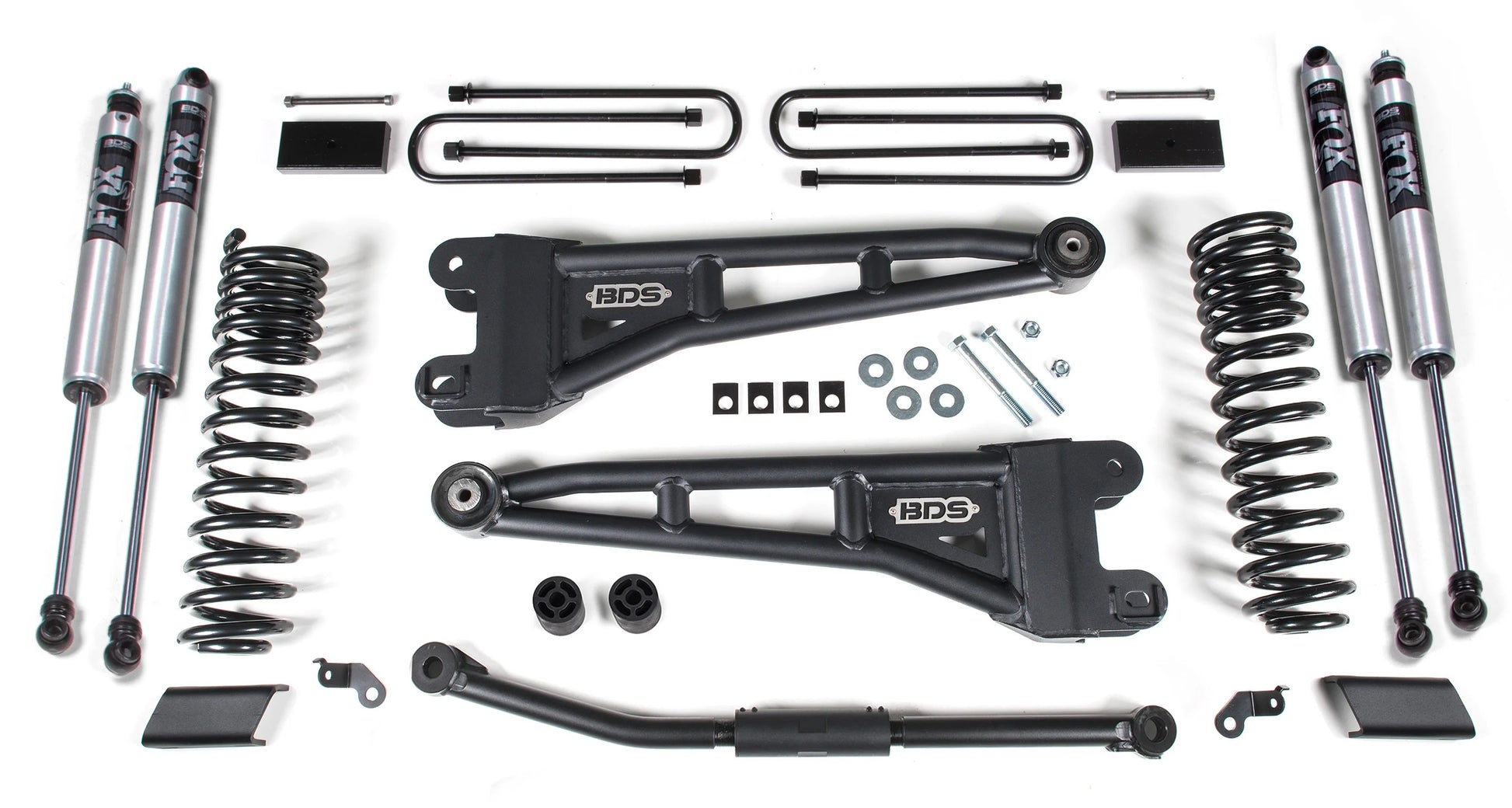

Brand New BDS Suspension 2.5" Radius Arm Lift Kit with Fox 2.0 Shocks, Coil Springs, & Blocks (Part #BDS1306FS).

Level out and take your Ford Super Duty diesel powered truck with this 2.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy duty replacement radius arms, high strength 1-3/8 inch solid steel track bar for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Fits:

  • Ford:
    • 2023-2026 F-450 4WD

Notes:

  • Diesel vehicles with radius arm mounted ride height sensors will require BDS123303
  • This kit does not work with Gas models equipped with ride height sensors.
  • Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
  • Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
  • Installation requires a torque wrench capable of 405 ft-lbs.
  • Re-calibration of your vehicles Advanced Driver Assistance System (ADAS) cameras, radars, light detection and ranging (LiDAR), and other sensors may be necessary by your local dealership or ADAS service center. This will ensure proper functionality of the vehicle features such as lane keeping, lane departure, parking assistance, blind-spot detection, adaptive cruise control systems, and other functions as they did prior to installation.
  • Recommended Tires & Wheels (Trimming may be required): Max Tire Size: 35x12.50, Front Wheel: 20x8.25, 8.76" BS, Rear Outer: 20x8.25, -3.33" BS, and Rear Inner: 20x8.25, 9.11" BS

Features:

  • Pro-Ride dual rate coil springs ride smooth through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Adjustable solid steel track bar designed to recenter the front axle
  • Fabricated steel blocks provide level stance from front to rear

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Coil Spring
  • Front Lift Height: 2.5"
  • Rear Lift Method: Block
  • Rear Lift Height: 1"

You can view and download the assembly instruction booklet here.
