BDS 1999-2004 F-250,F-350 SUPER,4WD,6" LIFT KIT,4" BLOCK,FOX 2.0 STRUTS

BDS 1999-2004 F-250,F-350 SUPER,4WD,6" LIFT KIT,4" BLOCK,FOX 2.0 STRUTS

STU BDS1305FSR

$2,733.55
$2,733.55
View full details

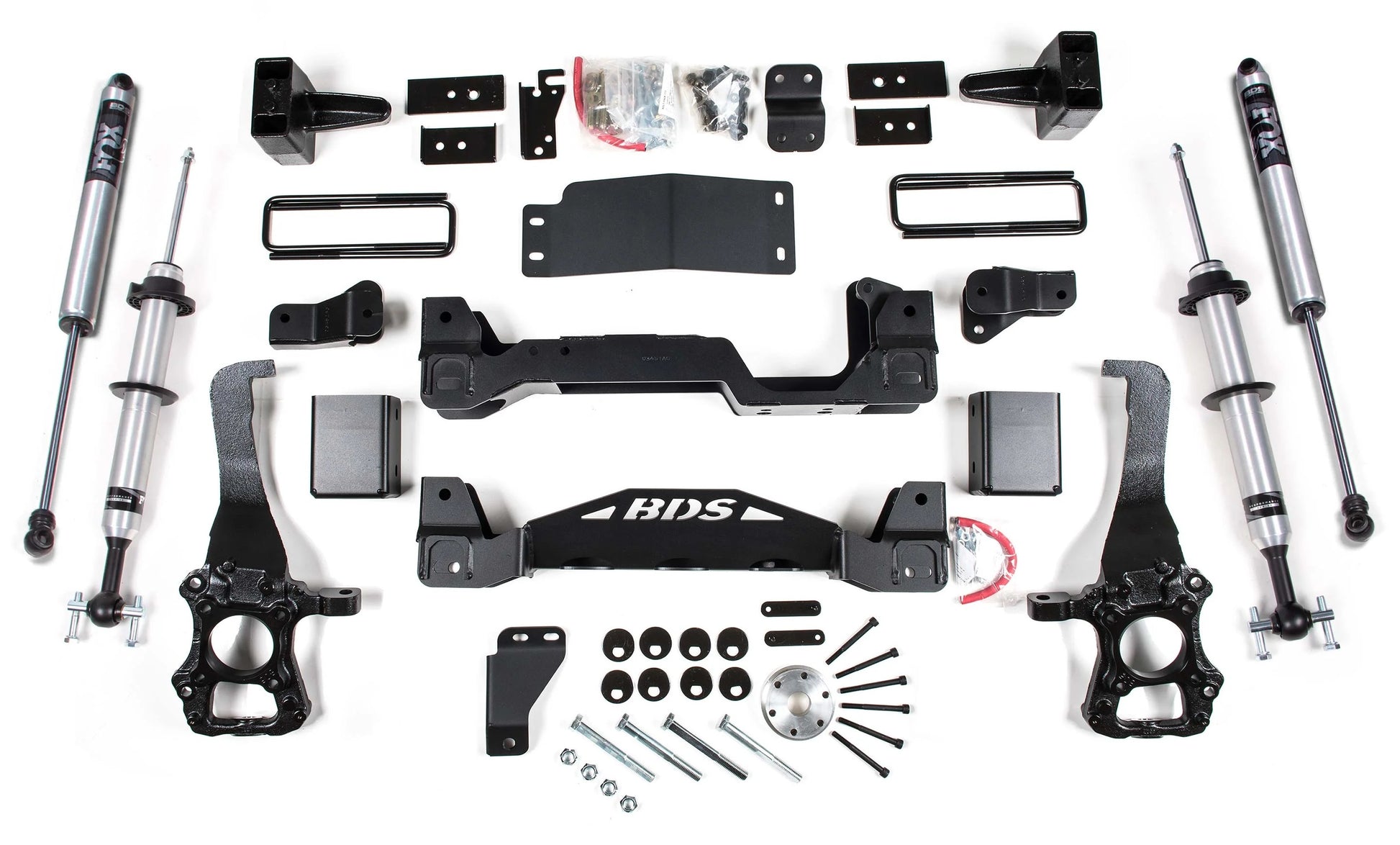

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 IFP Struts, Crossmembers, & 4 Inch Block Kit (Part #BDS1305FSR).

Prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and off-road protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skid plate designed for off-road protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance.

Fits:

  • Ford:
    • 2015-2020 F-150 4WD

Notes:

  • 18" wheels with 5-5.5" total backspacing should be tested prior to mounting tire to ensure proper clearance to BDS steering knuckle.
  • 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
  • E-brake bracket required for factory powersteps (123018)
  • Block kits replace factory 1-1/4" block.
  • Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
  • Will not fit HD models (7 lug).
  • Recommended Tires & Wheels (Trimming may be required): 35 x 12.5 with 20 x 9 and 5 in. Backspace or 37 x 12.5 with 20 x 9 and 5 in. Backspace

Features:

  • High clearance crossmembers improve strength and off-road capability
  • Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved off-road protection
  • 4" rear lift blocks and u-bolts to lift and level the stance

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Specs:

  • Front Lift Method: Crossmember
  • Front Lift Height: 6"
  • Rear Lift Method: Block
  • Rear Lift Height: 4"

You can view and download the assembly instruction booklet here.
