BDS 1999-2004 F-250,F-350 SUPER,4WD,6" LIFT KIT,OVERLOAD,RADIUS,NITRO SHOCKS

Brand New BDS Suspension 6" Lift Kit with NX Nitro Shocks, Block Kit, & Add-A-Leafs (Part #BDS1301H).

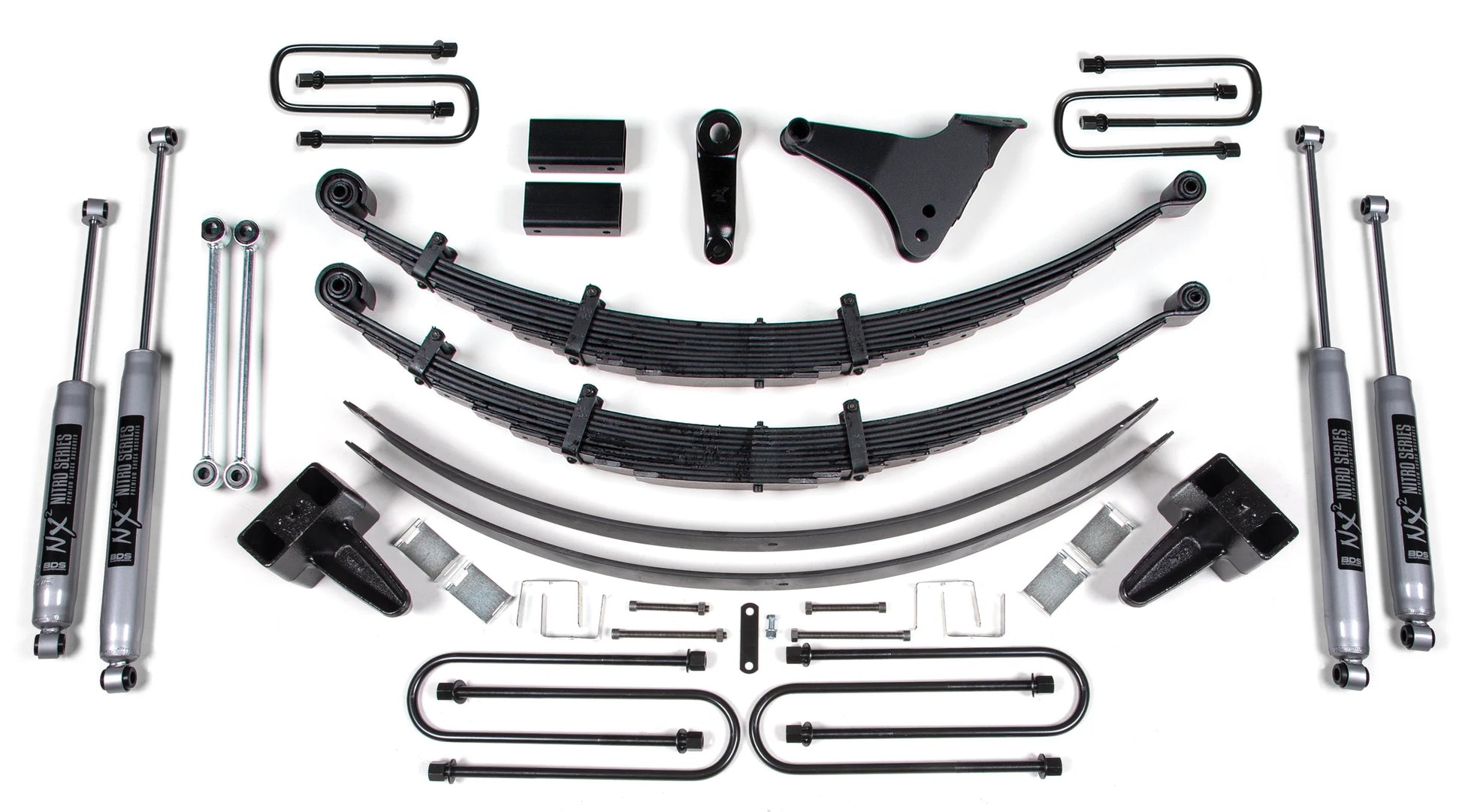

Take your 1999-2004 Ford F250 and F350 Super Duty truck to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires. Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, and bump stop brackets. In the rear the base kit utilizes a high-strength lift block and longer u-bolts.

Fits:

• Ford:
  • 1999-2004 F-250 Super Duty 4WD with Factory Overload Springs & with Radius U-Bolts
  • 1999-2004 F-350 Super Duty 4WD with Factory Overload Springs & with Radius U-Bolts

• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast U-bolt plate before ordering.
• Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
• The Super Duty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
• Will not fit dually applications.
• If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit.
• The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.
• Recommended Tires & Wheels (Trimming may be required): 36 x 12.5 with 16 x 10 and 4 in. Backspace

You can view and download the assembly instruction booklet here, here, and here.
