BDS 1999-2004 F-250,F-350 SUPER,4WD,6" LIFT KIT,OVERLOAD,RADIUS,FOX SHOCKS

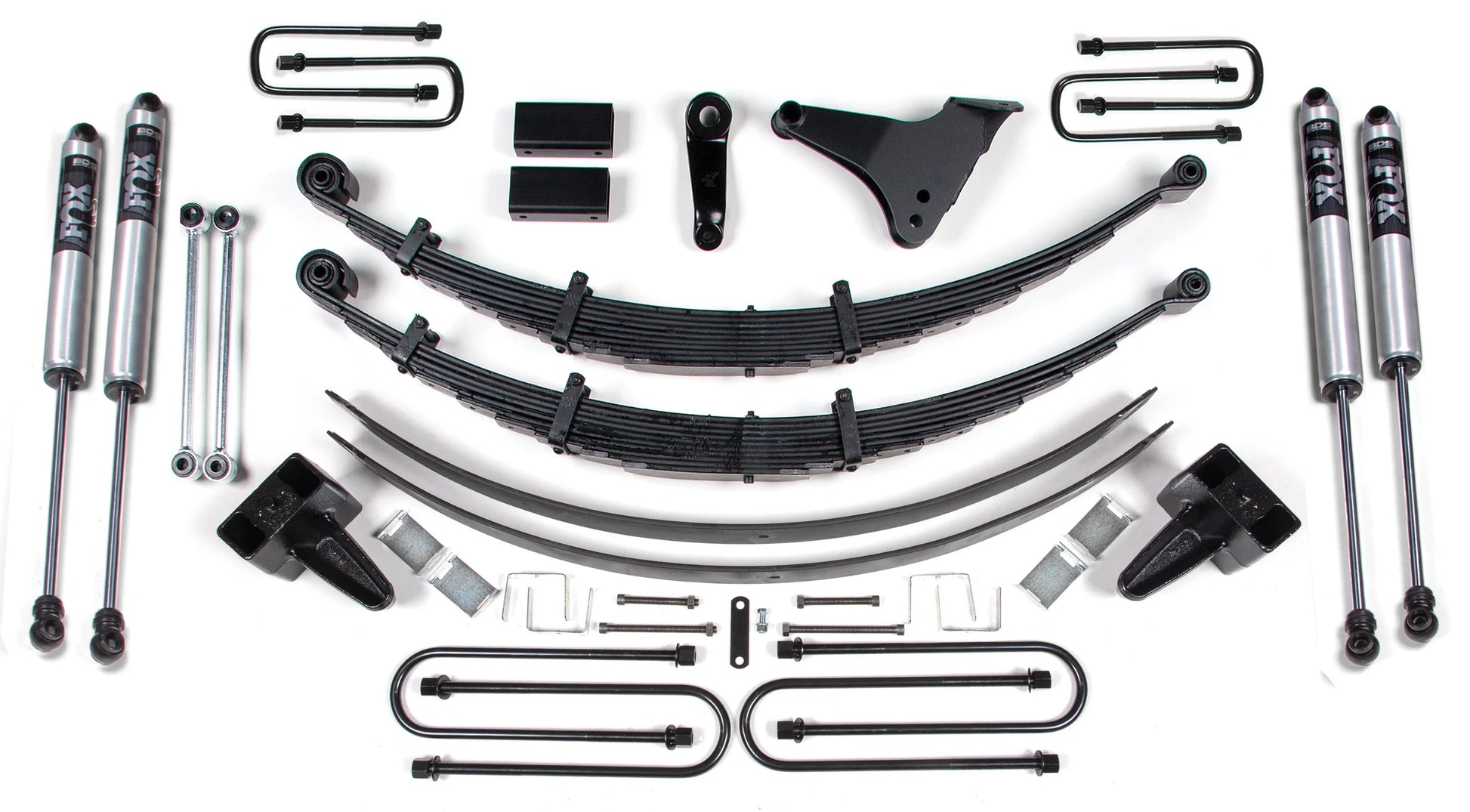

Brand New BDS Suspension 6" Lift Kit with Fox 2.0 Shocks, Front Leaf Springs, Block Kit, & Add-A-Leafs (Part #BDS1301FS).

Take your 1999-2004 Ford F250 and F350 Super Duty truck to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires.

Up front the lift kit includes Glide-Ride leaf springs, forged drop pitman arm and track bar bracket for steering correction, sway bar links, and bump stop brackets. In the rear the base kit utilizes a high-strength lift block and longer u-bolts.

This vehicle was manufactured with either square front U-Bolts or radiused front U-bolts. Typically, 1999-2000 are square and 2001-2004 are radiused, but that is not always the case. The radiused U-bolts aren't square or round, but rather have a gentle radius that matches a cast factory upper U-bolt plate on top of the factory spring. Vehicles manufactured prior to 2-28-99 require yet another different box kit due to a change in the factory track bar. Please make the appropriate selection for your particular vehicle.

Fits:

• Ford:
  • 1999-2004 F-250 Super Duty 4WD with Factory Overload Springs with Radius U-Bolts
  • 1999-2004 F-350 Super Duty 4WD with Factory Overload Springs with Radius U-Bolts

• Radius front U-bolt type (Purchase kit #BDS1301)

• Square front U-bolt type (Purchase kit #BDS1303)

• Square Prior to 2-28-99 (Purchase kit #BDS1924)
• Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
• These truck were manufactured with two different style front u-bolts. You will need to know if your front leaf spring u-bolts are square or are half way between round and square with a gentle radius around the OE cast U-bolt plate before ordering.
• Vehicles produced before 3/1/99 require a different box kit. You must check the production date on the door prior to ordering.
• The Super Duty came from the factory with a 2", 3", or 4" rear block. If you wish to truly level your vehicle it may be necessary to change the rear OE block.
• Will not fit dually applications.
• If your vehicle is equipped with a carrier bearing, you will want the 123402 drop kit.
• The front driveshaft will need to be lengthened and/or clearance ground depending on how the vehicle is equipped.
• Recommended Tires & Wheels (Trimming may be required): 36 x 12.5 with 16 x 10 and 4 in. Backspace

You can view and download the assembly instruction booklet here, here, and here.
