BDS 1977-1987 CHEVY,GMC 1/2 TON TRUCK,SUV,4" LIFT KIT,BLOCK,FOX 2.0 SHOCKS

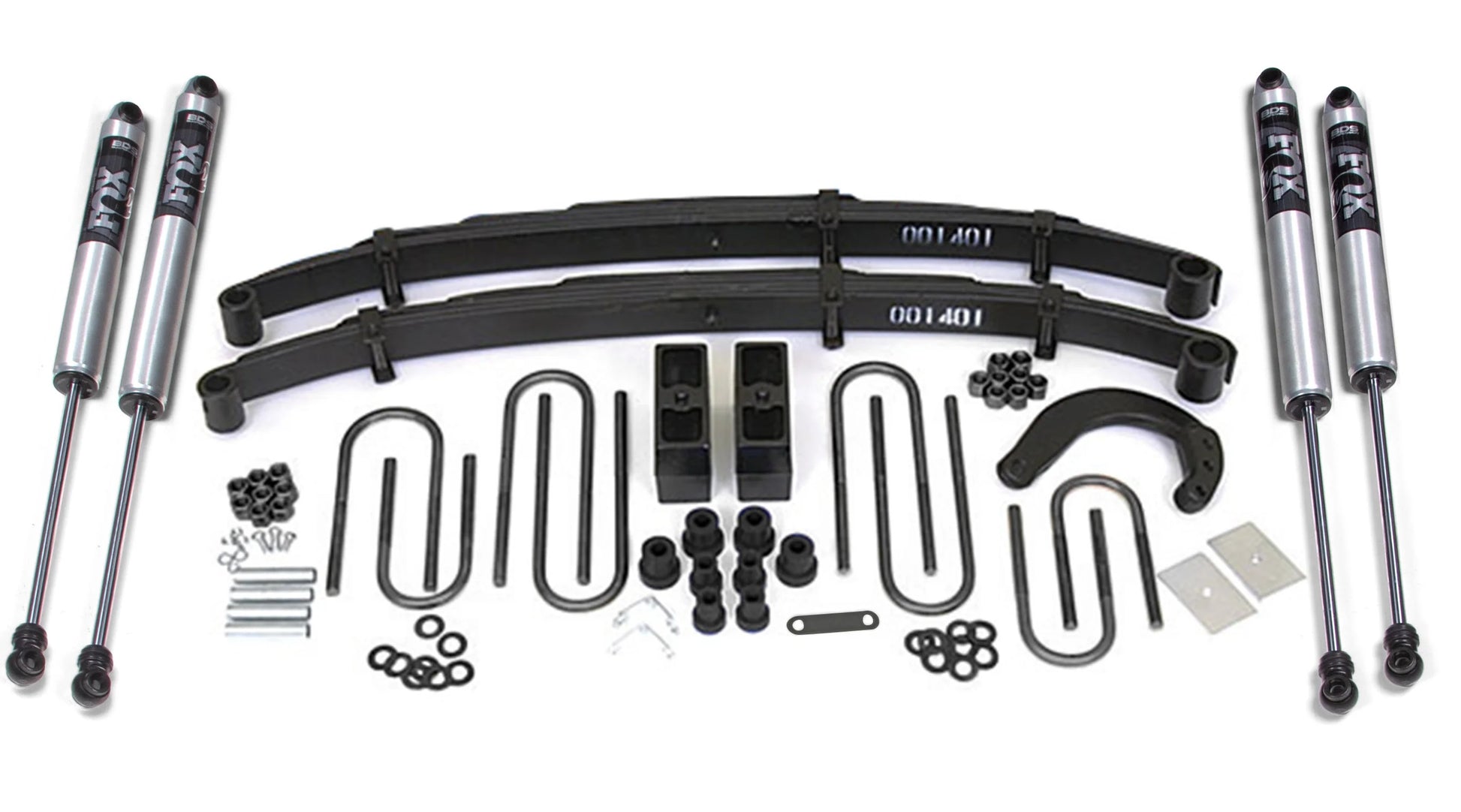

Brand New BDS Suspension 4" Lift Kit with Fox 2.0 Performance Series Shocks & 4" Block Kit (Part #BDS123FS).

Improve the style and handling of your 1977-1987 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm for steering correction, and brake line brackets. In the rear this kit utilizes a high-strength lift block and longer u-bolts.

Compatible with:

• Chevrolet:
  • 1987 Blazer
  • 1977-1986 K5 Blazer
  • 1977-1986 K10
  • 1977-1986 K10 Suburban
  • 1987 V10
  • 1987 V10 Suburban
• GMC:
  • 1977-1987 Jimmy 4WD
  • 1977-1978 K15
  • 1977-1978 K15 Suburban
  • 1979-1986 K1500
  • 1979-1986 K1500 Suburban
  • 1987 V1500
  • 1987 V1500 Suburban

Notes:

• The 1/2 ton commonly came with a factory 52" eye to eye rear leaf spring. However, some were produced with a 56" rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
• If equipped with a factory front sway bar, order the front sway bar shackle link kit.
• Some vehicle came with factory front dual shocks. If you wish to replace the factory duals, you must order additional two auxiliary shocks.
• #001408 come with OE style rubber bushings installed.
• Exhaust modification may be required to clear front driveshaft.
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Features:

• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling
• Cast steel blocks provide level stance from front to rear

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Leaf Spring
• Front Lift Height: 4"
• Rear Lift Method: Block
• Rear Lift Height: 4"

You can view and download the assembly or instruction booklet here.
