BDS 2011-2022 FORD F-250,F-350 SUPER-DUTY REAR DRIVESHAFT SPACER KIT

BRAND NEW BDS SUSPENSION REAR DRIVESHAFT SPACER, COMPATIBLE WITH 2017-2022 FORD F-250 & F-350 SUPER DUTY 4WD

WHEN LIFTING THE 2011-2022 MODEL FORD F250 OR F350 SUPER DUTY 6" OR MORE IT MAY BE NECESSARY TO EXTEND THE REAR DRIVESHAFT TO ENSURE ADEQUETE SPLINE ENGAGEMENT AT FULL DROOP OF THE SUSPENSION. WHILE ONE OPTION IS TO HAVE A CUSTOM EXTENDED LENGTH DRIVESHAFT BUILT, BDS SUSPENSION IS NOW OFFERING A MORE AFFORDABLE SOLUTION WITH THEIR NEW HIGH STRENGTH REAR DRIVESHAFT SPACER.

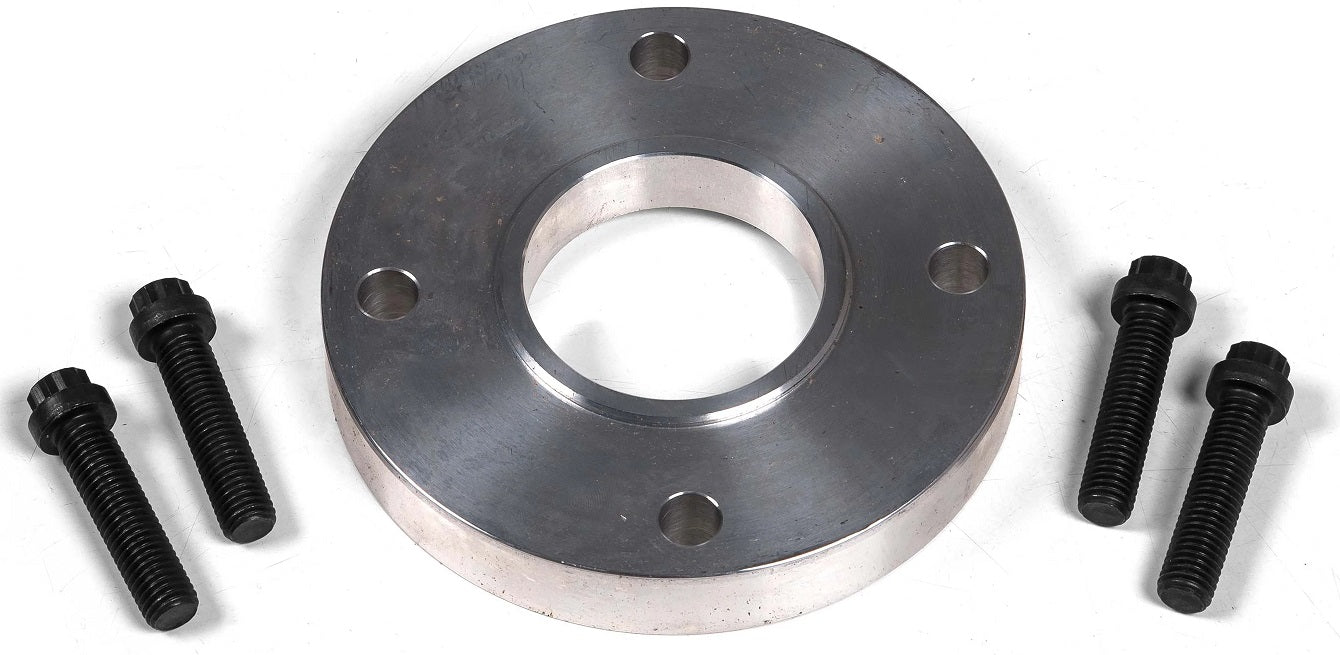

BUILT FROM T6061 BILLET ALUMINUM AND CNC MACHINED FOR A PRECISION FIT, THIS REAR DRIVESHAFT SPACER MOUNTS BETWEEN THE DRIVESHAFT AND REAR AXLE PROVIDING THE NECESSARY DRIVESHAFT SPLINE ENGAGEMENT.

NOTE: SOME VEHICLES MAY REQUIRE THE REAR DRIVESHAFT SPACER KIT TO MAINTAIN ADEQUATE REAR DRIVESHAFT ENGAGEMENT WITH 6"+ LIFT.

NOTE: ONLY COMPATIBLE WITH TRUCKS WITH A 4 BOLT FLANGE STYLE REAR DRIVESHAFT MOUNT ON THE AXLE.

COMPATIBLE WITH:

• FORD:
• 2017-2022 F-250 SUPER DUTY 4WD
• 2017-2022 F-350 SUPER DUTY 4WD

FEATURES:

• T6061 BILLET ALUMINUM CONSTRUCTION
• CNC MACHINED FOR A PRECISION FIT
• HIGH STRENGTH HARDWARE AND THREAD LOCKER INCLUDED
• ALLOWS ADDITIONAL REAR DRIVESHAFT SPLINE ENGAGEMENT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS REAR DRIVESHAFT SPACER HERE.
