BDS RAM 2500,3500 T-CASE INDEX,6 BOLT

BRAND NEW BDS SUSPENSION TRANSFER CASE INDEXING RING, 6 BOLT, COMPATIBLE WITH RAM 2014-2018 2500 & 2013-2018 3500 4WD DIESEL

PREVENT FRONT DRIVELINE ISSUES ON YOUR LIFTED DIESEL POWERED 2014-2018 RAM 2500 OR 2013-2018 RAM 3500 4WD TRUCK WITH THE BDS TRANSFER CASE INDEXING RING KIT. AT 6" OF LIFT AND ABOVE IT IS NECESSARY TO INDEX THE TRANSFER CASE TO ALLOW THE FRONT DRIVELINE TO RECONNECT AND REMOVE VIBRATIONS.

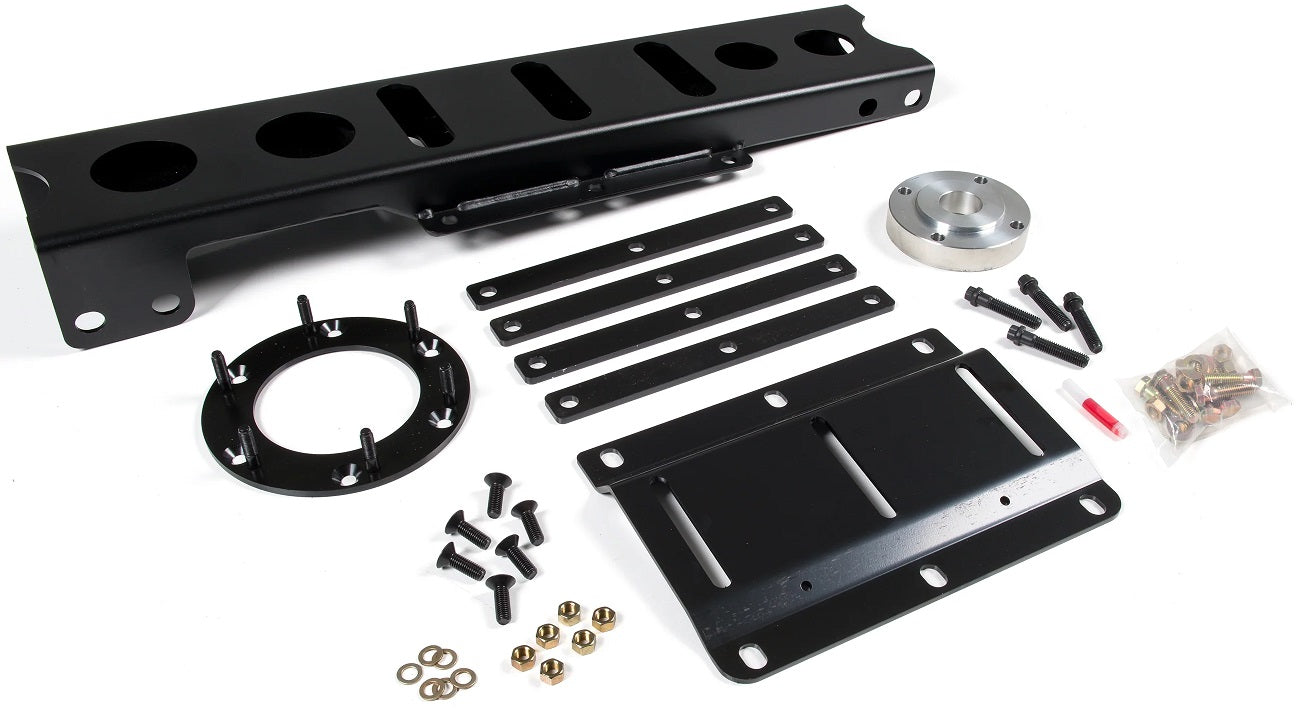

DESIGNED FOR 6-BOLT FLANGE TRANSMISSIONS, THE BDS T-CASE INDEX RING KIT HAS OPTIMAL SPLINE ENGAGEMENT AND IS DUAL-DRILLED TO ALLOW POSITIONING FOR COMPATIBILITY WITH A RANGE OF LIFT HEIGHTS. ROUNDING OUT THE 6-BOLT INDEXING KIT IS A BILLET ALUMINUM DRIVESHAFT SPACER AND ALL THE HARDWARE NEEDED TO COMPLETE THE INSTALLATION.

COMPATIBLE WITH:

• RAM:
• 2014-2018 2500 4WD DIESEL
• 2013-2018 3500 4WD DIESEL

FEATURES:

• INDEXING RINGS REMOVE FRONT DRIVELINE VIBRATIONS
• PROPER CLEARANCE PREVENTS CROSS-MEMBER INTERFERENCE
• HEAVY DUTY STEEL CONSTRUCTION FOR MAXIMUM STRENGTH
• DESIGNED WITH OPTIMAL SPLINE ENGAGEMENT TO PREVENT TRANSMISSION TO TRANSFER CASE DAMAGE

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TRANSFER CASE INDEXING RING KIT HERE.
