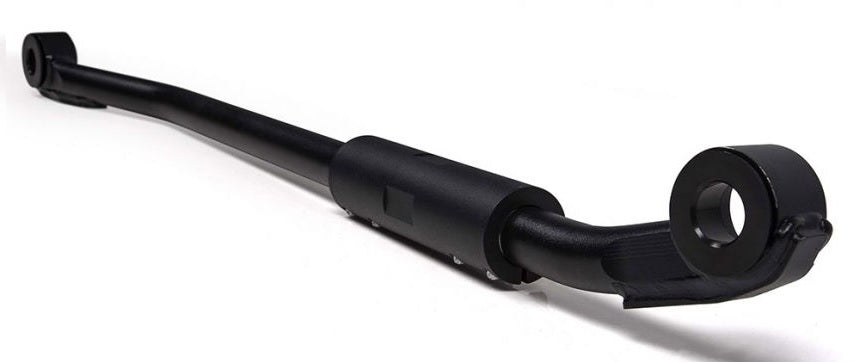

BDS 2014-2022 RAM 2500/3500 4WD FRONT ADJUSTABLE TRACK BAR

BRAND NEW BDS SUSPENSION HEAVY DUTY ADJUSTABLE FRONT TRACK BAR (PART #BDS122324).

BDS IS NOW OFFERED A HEAVY DUTY ADJUSTABLE FRONT TRACK BAR FOR THE RAM 2500 AND 3500 TRUCKS. THESE NEW TRACK BARS ARE A MASSIVE UPGRADE TO THE FACTORY UNIT, CONSTRUCTED FROM 1-3/8 SOLID STEEL STOCK REINFORCED WITH GUSSETED ENDS TO HANDLE WHATEVER ON-ROAD AND OFF-ROAD ABUSE YOU CAN THROUGH AT IT. ADJUSTMENTS ARE MADE AT THE 1-3/8-12 FINE THREADED CENTER TURNBUCKLE WITH PINCHBOLT ENDS TO ALLOW EASY TUNING TO PROPERLY RECENTER THE FRONT AXLE FOR A RANGE OF LIFT HEIGHTS. THE TRACK BAR IS FORMED FOR PROPER CLEARANCE AROUND CRITICAL FRONT END COMPONENTS AND IS DESIGNED TO EASY INSTALLATION WITHOUT THE NEED TO CLEARANCE THE FACTORY FRAME AND AXLE MOUNTS. BOTH ENDS USE HIGH-DUROMETER POLYURETHANE BUSHINGS WITH THICK-WALLED STEEL SLEEVES FOR STRENGTH AND RELIABILITY. PARTS COME WITH A HIGH QUALITY TEXTURED BLACK POWDERCOAT FINISH FOR A GREAT LOOK AND EXCELLENT CORROSION RESISTANCE. THE ARE DESIGNED FOR USE ON 0-4" OF LIFT AND CAN BE USED IN COMBINATION WITH MOST AFTERMARKET TRACK BAR BRACKETS TO BE USED ON TALLER LIFT HEIGHTS.

NOTE: DESIGNED FOR 0-4" OF LIFT IN STOCK LOCATION, CAN BE USED IN COMBINATION WITH TRACK BAR RELOCATION BRACKET ON TALLER LIFTS UP TO 8".

FITS:

• RAM:
  • 2014-2023 2500 4WD
  • 2013-2022 3500 4WD

FEATURES:

• HEAVY DUTY 1-3/8" SOLID STOCK STEEL CONSTRUCTION
• CENTER PINCH-BOLT STYLE TURNBUCKLE ADJUSTMENT
• ALLOWS FRONT AXLE TO BE RECENTERED AT A WIDE RANGE OF LIFT HEIGHTS
• SPECIALLY FORMED TO ALLEVIATE STRESS ON MOUNT POINTS
• READY TO INSTALL WITHOUT NEED TO CLEARANCE FACTORY FRAME/AXLE MOUNTS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS KIT HERE.
