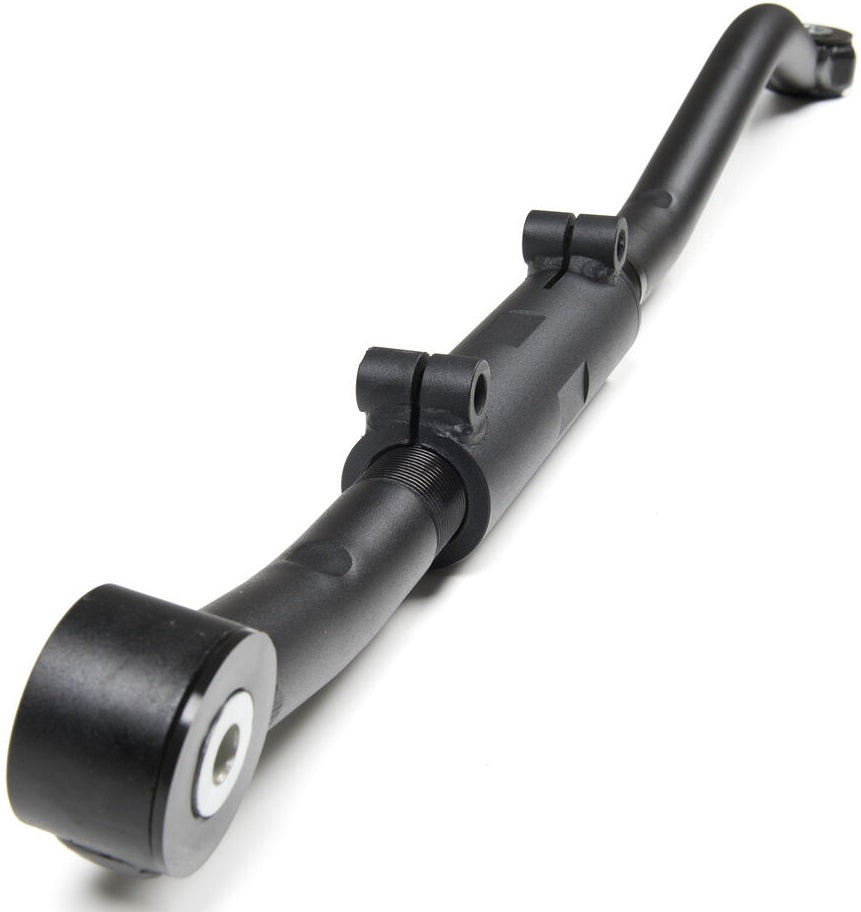

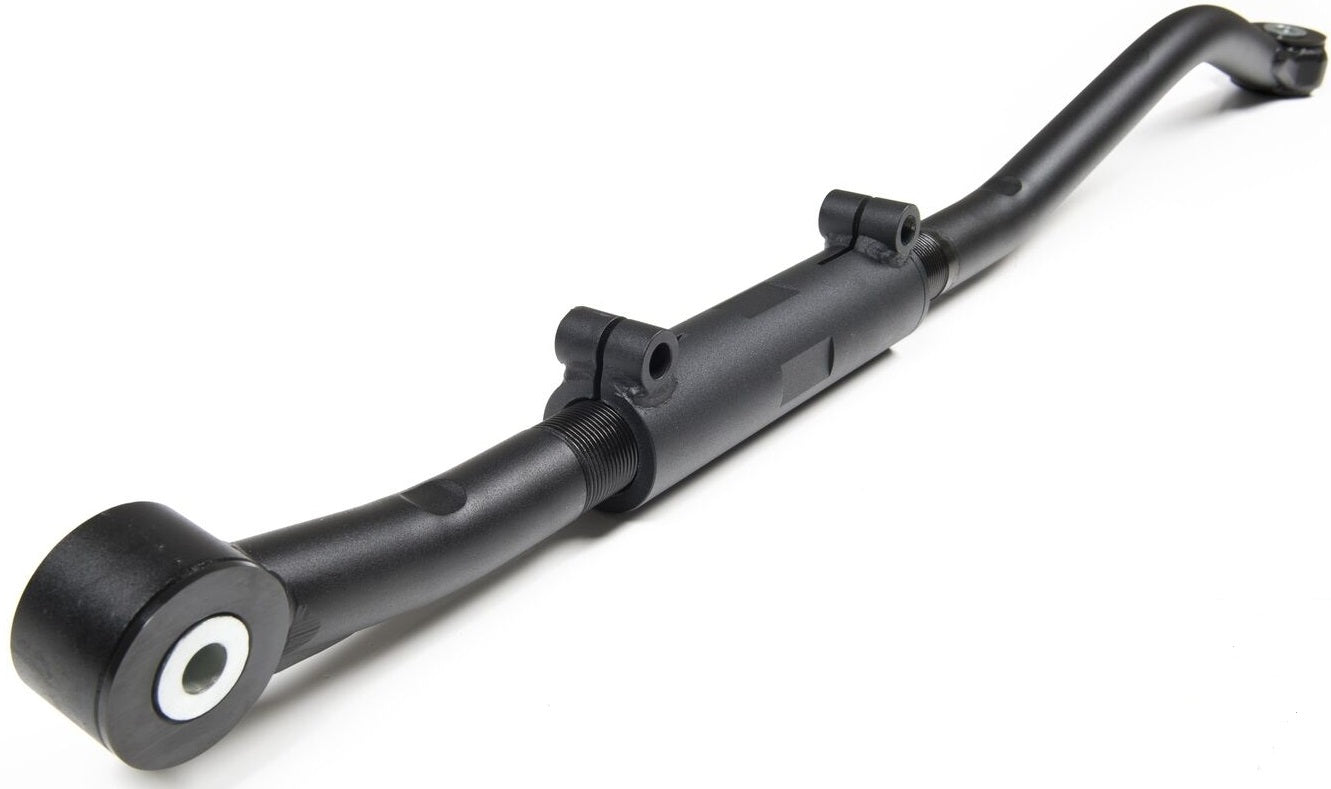

BDS 2003-2013 DODGE 2500 ADJUSTABLE TRACK BAR

BRAND NEW BDS FRONT ADJUSTABLE TRACK BAR 0-3" LIFT, BLACK, COMPATIBLE WITH 2003-13 DODGE RAM 4WD & 2500 2003-12 DODGE RAM 3500 4WD

THE BDS 122315 ADJUSTABLE FRONT TRACK BAR FOR THE RAM 2500 TRUCK WILL HELP TO MAINTAIN PROPER FRONT END GEOMETRY BY CENTERING THE AXLE SIDE TO SIDE. GREAT FOR VEHICLES WITH LEVELING KITS OR UP TO 3 INCH LIFT KITS USING STOCK TRACK BAR MOUNT LOCATIONS. CAN BE USED WITH LARGER LIFT KITS THAT ARE EQUIPPED WITH TRACK BAR RELOCATION BRACKETS.

REPLACE YOUR STOCK 2003-2013 DODGE RAM 2500 4WD ADJUSTABLE FRONT TRACK BAR WITH A HEAVY-DUTY BDS UPGRADE, CONSTRUCTED FROM 1-3/8" SOLID STEEL STOCK REINFORCED WITH GUSSETED ENDS. DESIGNED FOR USE ON 0- TO 3-INCHES OF LIFT AND CAN BE USED IN COMBINATION WITH MOST AFTERMARKET TRACK BAR BRACKETS TO BE USED ON TALLER LIFT HEIGHTS.

ADJUSTMENTS ARE MADE AT THE 1-3/8" X 12 FINE-THREADED CENTER TURNBUCKLE WITH PINCH-BOLT ENDS TO ALLOW EASY TUNING TO PROPERLY RECENTER THE FRONT AXLE FOR A RANGE OF LIFT HEIGHTS. TRACK BAR IS FORMED FOR PROPER CLEARANCE AROUND CRITICAL FRONT-END COMPONENTS, DESIGNED TO EASY INSTALLATION WITHOUT THE NEED TO CLEAR THE FACTORY FRAME AND AXLE MOUNTS. BOTH ENDS USE HIGH-DUROMETER POLYURETHANE BUSHINGS WITH THICK-WALLED STEEL SLEEVES FOR STRENGTH AND RELIABILITY.

COMPATIBLE WITH:

• DODGE:
• 2003-2013 RAM 2500 4WD
• 2003-2012 RAM 3500 4WD

INCLUDES:

• HD ADJUSTABLE TRACK BAR
• BUSHINGS
• SLEEVES
• LOCTITE
• INSTALL INSTRUCTIONS

FEATURES:

• HEAVY-DUTY 1-3/8" SOLID STOCK STEEL CONSTRUCTION
• CENTER PINCH-BOLT STYLE TURNBUCKLE ADJUSTMENT
• ALLOWS FRONT AXLE TO BE RECENTERED AT A WIDE RANGE OF LIFT HEIGHTS
• SPECIALLY FORMED TO ALLEVIATE STRESS ON MOUNT POINTS
• READY TO INSTALL WITHOUT NEED TO CLEAR FACTORY FRAME/AXLE MOUNTS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS TRACK BAR KIT HERE.
