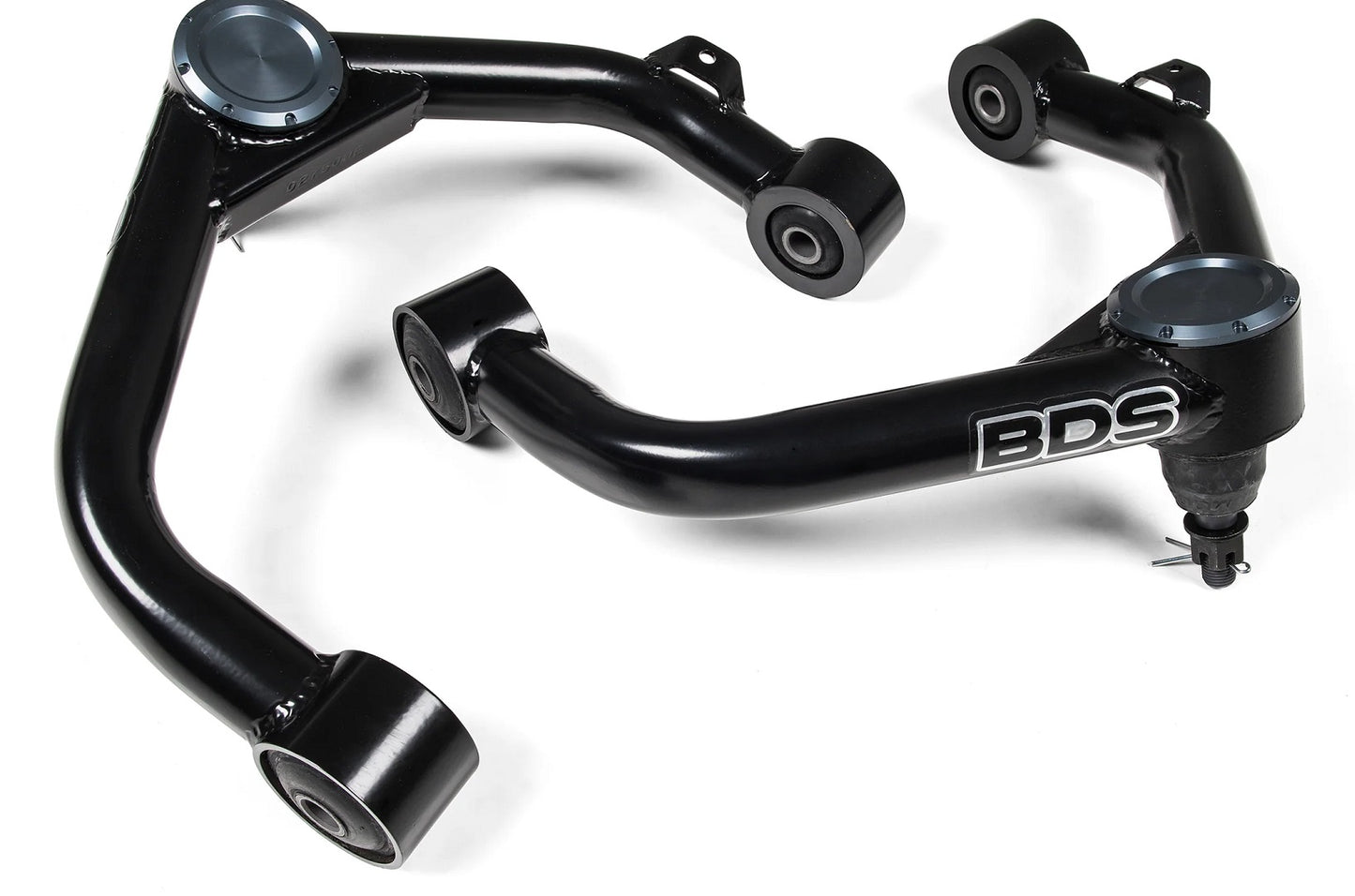

BDS 2006-2024 DODGE RAM 1500 UPPER CONTROL ARM KIT,4"-6" LIFT

Brand New BDS Suspension Upper Control Arm Kit, Compatible with 2006-2023 Dodge Ram 1500 4WD with 4-6" Lift (Part #BDS122252).

Increase wheel travel by upgrading the stock OE upper control arms (UCA) on your 2006-2024 Dodge Ram 1500 4WD to BDS performance. Specially designed for leveled and lifted applications, these arms are built from high-strength 1.5-inch OD x .120-wall steel tubing and feature an indexed ball joint cup to correct the ball joint positioning.

These UCAs can be used with BDS 6-inch lift kits and other lift and leveling kits on the market. The frame mounting ends feature durometer-specific rubber bushings and premium quality ball joints for smooth, quiet operation, and superior durability compared to arms featuring uniballs, poly bushings or heims.

NOTE:

• This kit is only the upper control arms to fix ball joint range of motion issues common to Ram 1500 trucks when used with spacer kits.

• Will not work with stock rims with a 12.50" wide tire, tire will rub the UCA at full steering lock. If the stock rim is reinstalled it will need to be with the stock size tire ONLY!

• (Dealer Note) The former BDS122251 UCA has been superseded to BDS122253 to be used for 2-3" lift heights, however, the products are the same.

• Will not work on factory air ride models due to frame variations to standard suspension models.

Compatible with:

• Dodge:

  • 2006-2010 Ram 1500 4WD
• Ram:
  • 2011-2023 1500 4WD

Features:

• High strength 1.5-inch tubular construction improves strength and durability over stock UCA

• Indexed ball joint cup allows for increased travel on leveled/lifted applications

• Factory style rubber bushings for long lasting, maintenance-free operation

• High quality greaseable ball joints and a protective cap to keep out debris

• Fully assembled and ready to install right out of the box

You can view and download the assembly/instruction booklet here.
