BDS 1973-1976 CHEVY,GMC 3/4 TON TRUCK,SUV,8" LIFT KIT,LEAF SPRING,NITRO SHOCKS

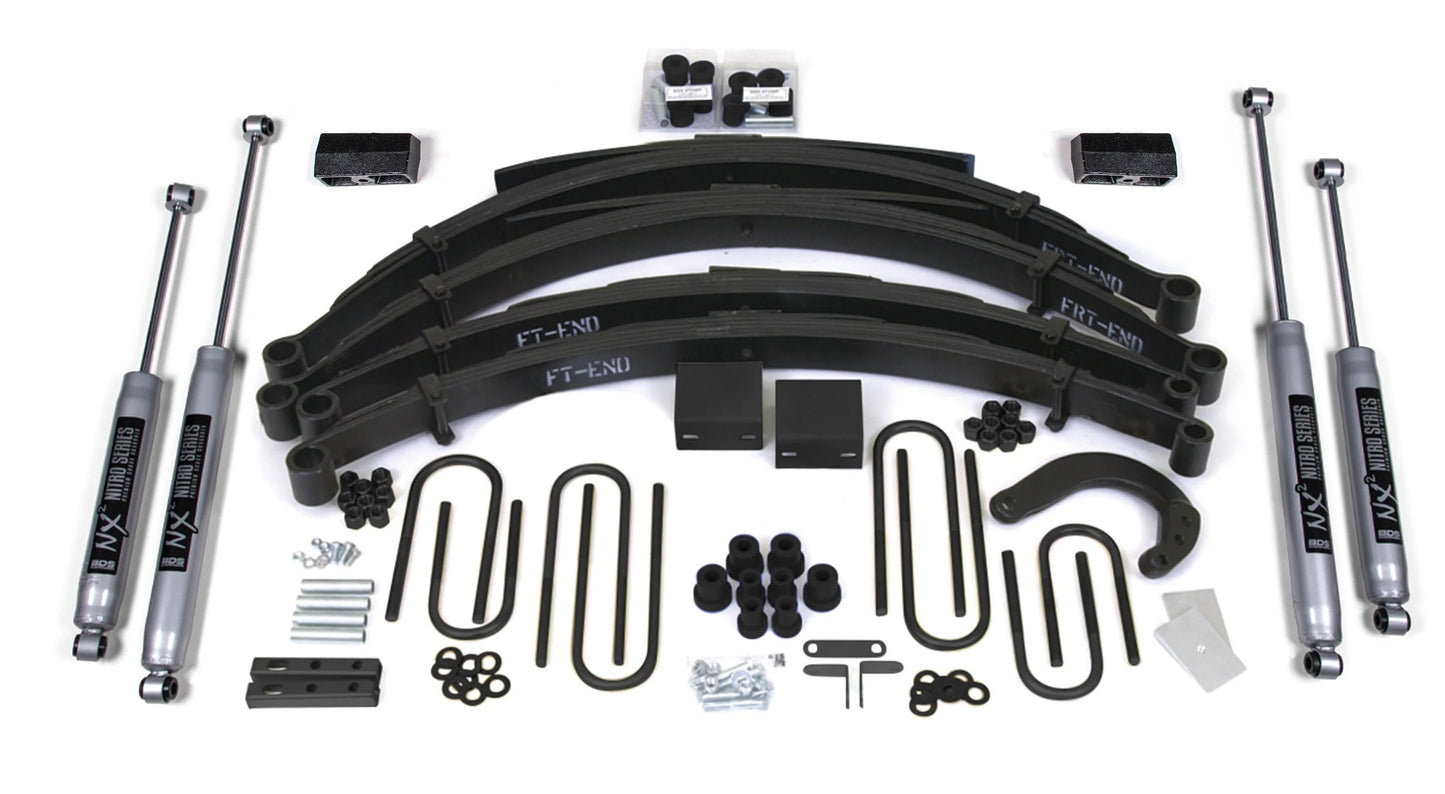

Brand New BDS Suspension 8" Lift Kit with NX Nitro Series Shocks & Leaf Springs (Part #BDS120H).

Go big with your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to raise the bar to new heights with this 8-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 38" tires. Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm and 3" steering block for steering correction, brake line brackets, and sway bar drop brackets. In the rear this kit utilizes a set of Glide-Ride leaf springs for the ultimate performance on and off road and new u-bolts.

Compatible with:

• Chevrolet:
  • 1975-1976 K5 Blazer
  • 1973 K20 Pickup
  • 1975-1976 K20
  • 1975-1976 K20 Suburban
• GMC:
  • 1975-1976 Jimmy 4WD
  • 1973-1974 K25/K2500 Pickup
  • 1973-1974 K25/K2500 Suburban
  • 1975-1976 K25
  • 1975-1976 K25 Suburban

Notes:

• The 3/4 ton commonly came with a factory 56" eye to eye rear leaf spring. However, some were produced with a 52" rear spring. This kit will not work with 52" rear springs. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
• Both driveshafts may need to be lengthened.
• Aftermarket extended brake lines are required for installation.
• Exhaust modification may be required to clear the front driveshaft.
• If your vehicle is equipped with a front anti-sway bar, order the anti-sway bar shackle link kit.
• #001608 come with OE style rubber bushings installed.
• Recommended Tires & Wheels (Trimming May Be Required) 38 x 13.5 with 15 x 10 and 3.5 in. Backspace

Features:

• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Leaf Spring
• Front Lift Height: 8"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 6"

You can view and download the assembly or instruction booklet here, here, and here.
