BDS 1973-1976 CHEVY,GMC 3/4 TON TRUCK,SUV,6" LIFT KIT,LEAF SPRING,NITRO SHOCKS

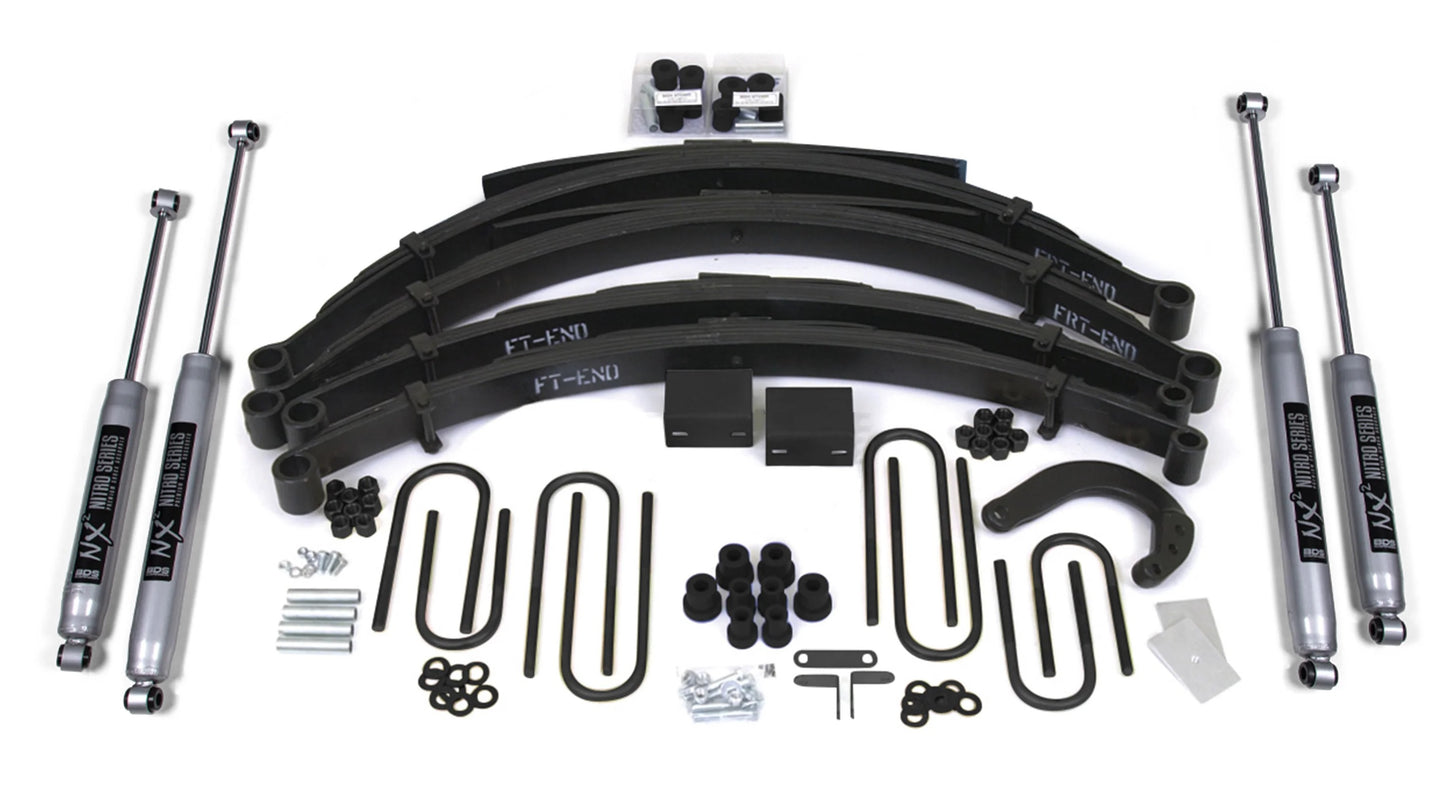

Brand New BDS Suspension 6" Lift Kit with NX Nitro Series Shocks & Leaf Springs (Part #BDS118H).

Take your 1973-1976 Chevy and GMC 3/4 ton truck or SUV to the next level with this 6-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K20 and K25, this kit includes everything necessary to set your truck up right with clearance for up to 36" tires. Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm for steering correction, and brake line brackets. In the rear this kit utilizes leaf springs and longer u-bolts.

Compatible with:

• Chevrolet:
  • 1975-1976 K5 Blazer
  • 1973 K20 Pickup
  • 1975-1976 K20
  • 1975-1976 K20 Suburban
• GMC:
  • 1975-1976 Jimmy 4WD
  • 1973-1974 K25/K2500 Pickup
  • 1973-1974 K25/K2500 Suburban
  • 1975-1976 K25
  • 1975-1976 K25 Suburban

Notes:

• The 3/4 ton commonly came with a factory 56" eye to eye rear leaf spring. However, some were produced with a 52" rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
• If equipped with a factory front sway bar, order the front sway bar shackle link kit.
• #001608 come with OE style rubber bushings installed.
• Exhaust modification may be required to clear the front driveshaft.
• Recommended Tires & Wheels (Trimming May Be Required) 36 x 12.5 with 15 x 8 and 3.5 in. Backspace

Features:

• Glideride leaf springs to provide full lift height and increased capacity
• New steering arm maintains proper steering angles for improved handling

NX2 Nitro Series:

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs:

• Front Lift Method: Leaf Spring
• Front Lift Height: 6"
• Rear Lift Method: Leaf Spring
• Rear Lift Height: 4.5"

You can view and download the assembly or instruction booklet here.
