BDS 1973-1976 CHEVY,GMC 1/2 TON TRUCK,SUV,4" LIFT KIT,ADD-A-LEAF,FOX 2.0 SHOCKS

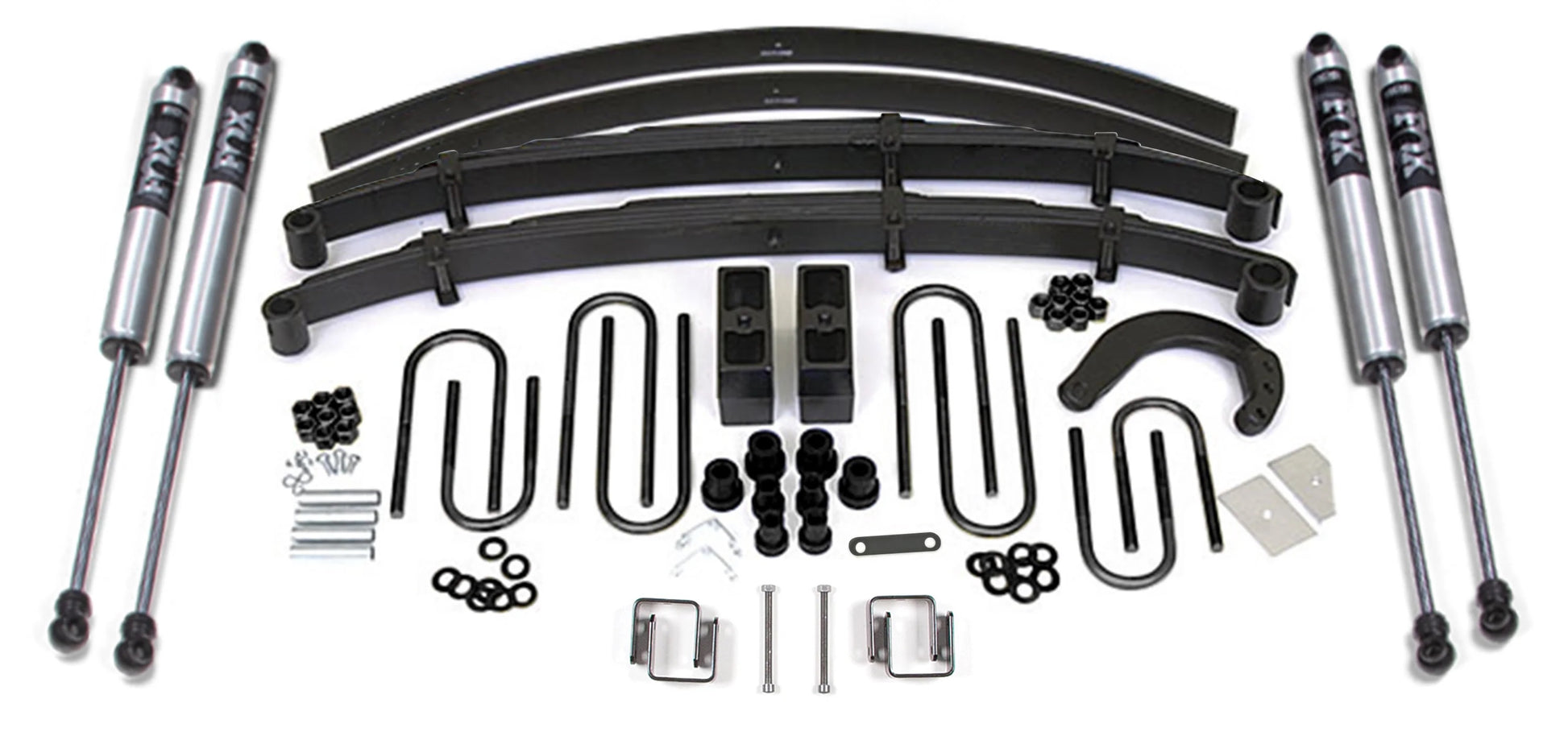

Brand New BDS Suspension 4" Lift Kit with Fox 2.0 Series Shocks, 4" Block Kit, & Add-A-Leaf (Part #BDS111FS).

Update the style of your 1973-1976 Chevy and GMC 1/2 ton truck or SUV with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability of the K5 Blazer, K10 and K15, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes Glide-Ride leaf springs, 4" steering arm for steering correction, and brake line brackets. In the rear this kit utilizes a high-strength lift block and longer u-bolts.

Compatible with:

• Chevrolet:
  • 1975-1976 K5 Blazer
  • 1973 K10 Pickup
  • 1975-1976 K10
  • 1975-1976 K10 Suburban
• GMC:
  • 1975-1976 Jimmy 4WD
  • 1973-1974 K15/K1500 Pickup
  • 1973-1974 K15/K1500 Suburban
  • 1975-1976 K15
  • 1975-1976 K15 Suburban

Notes:

• The 1/2 ton commonly came with a factory 52" eye to eye rear leaf spring. However, some were produced with a 56" rear spring. If ordering rear leaf springs, be sure to measure your factory rear spring before ordering.
• If equipped with a factory front sway bar, a sway bar drop kit is available.
• #001408 comes with OE style rubber bushings installed.
• Recommended Tires & Wheels (Trimming May Be Required) 35 x 12.5 with 15 x 8 and 3.5 in. Backspace

Features:

• New steering arm maintains proper steering angles for improved handling
• Glideride leaf springs to provide full lift height and increased capacity
• Cast steel blocks and add-a-leaf provide level stance from front to rear

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs:

• Front Lift Method: Leaf Spring
• Front Lift Height: 4"
• Rear Lift Method: Block & Add-A-Leaf
• Rear Lift Height: 4"

You can view and download the assembly or instruction booklet here.
