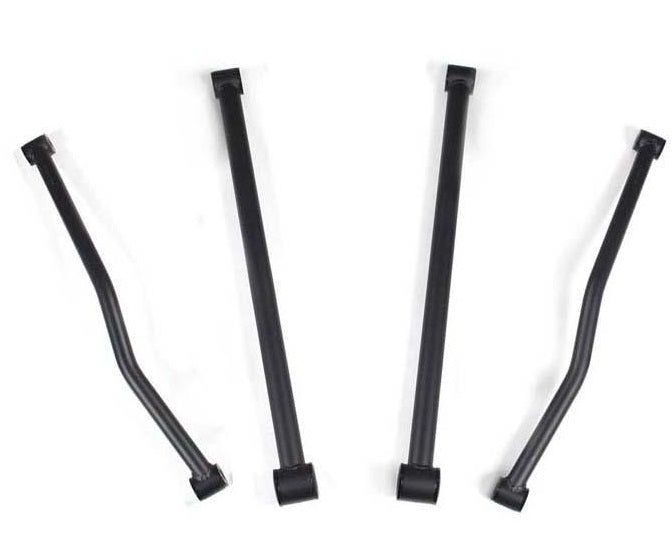

BDS DODGE CONTROL ARM BOX KIT

Brand New BDS Front Control Arm Box Upgrade Kit (Part #BDS012802).

Upgrade your 2003-2013 Dodge Ram 2500 or 2003-2012 Dodge Ram 3500 suspension system design to a superior one with a BDS 4-Link long arm upgrade. By utilizing independent upper and lower links to manage the axle's movement, the BDS 4-link kit ensures consistent caster angle throughout the wheel travel, resulting in exceptional handling. The arms come equipped with high-quality urethane bushings, which replace the factory rubber and provide a more stable steering wheel sensation both on and off the road. These arms when purchased with BDS012801 mount kit is a bolt-on upgrade that utilizes high-strength 1/4-inch steel brackets and massive 2 inch diameter tube control arms. For the best suspension system capable of handling the most demanding environments, opt for a BDS 4-Link system to upgrade your Dodge Ram 2500 or 3500.

Note: For 4-link control arm mounts Part #BDS012801 is required (Sold Separately).

Compatible with:

• Dodge:
  • 2003-2010 Ram 2500 4WD with Existing 6-8" Lift
  • 2003-2010 Ram 3500 4WD with Existing 6-8" Lift
• Ram:
  • 2011-2013 2500 4WD with Existing 6-8" Lift

  • 2011-2012 3500 4WD with Existing 6-8" Lift

Kit Includes:

• 4 - UCA Sleeve .750 X .095 X 2.33

• 2 - LCA Sleeve 1.00 X .1875 X 2.60

• 2 - LCA Sleeve 1.00 X 5/32 X 2.60 2010+ Only (18mm ID)

• 2 - LCA Sleeve 1.00 X .120 X 3.25

• 8 - 90 Degree Grease Zerk

• 1 - Upper Control Arm - Driver

• 1 - Upper Control Arm - Pass

• 2 - Lower Control Arm

• 8 - UCA Bushing - 3/4" ID

• 4 - LCA Bushing - Axle

• 4 - LCA Bushing - Frame

You can view and download the assembly or instruction booklet here.
