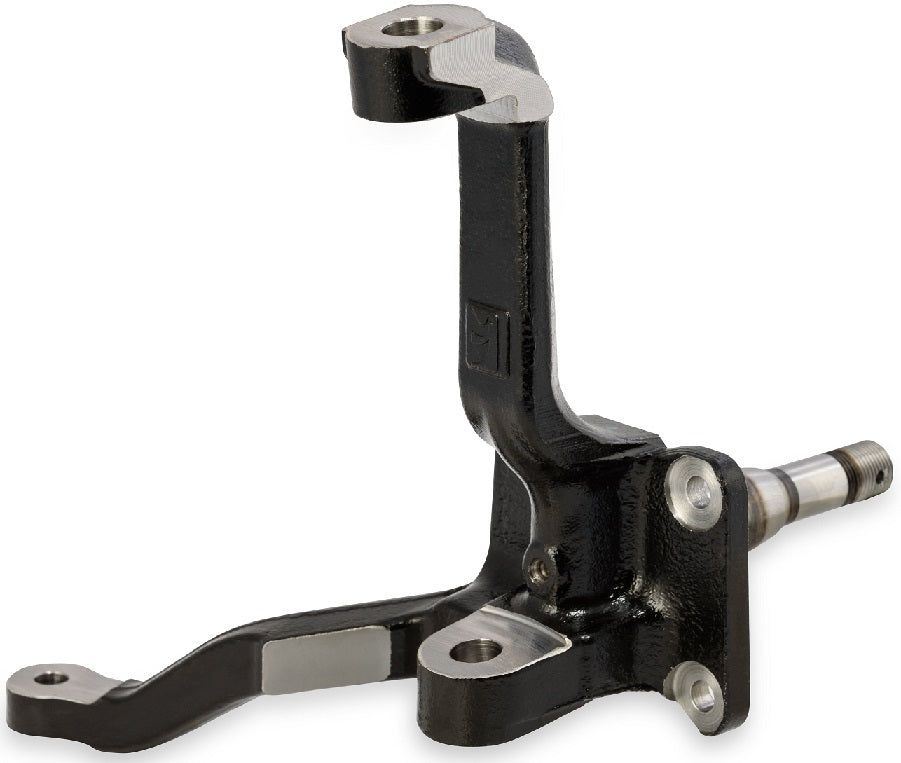

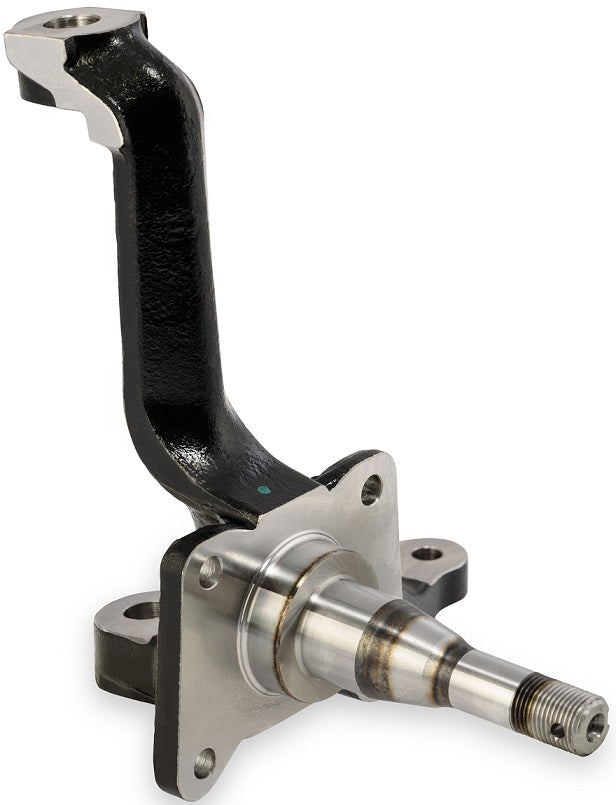

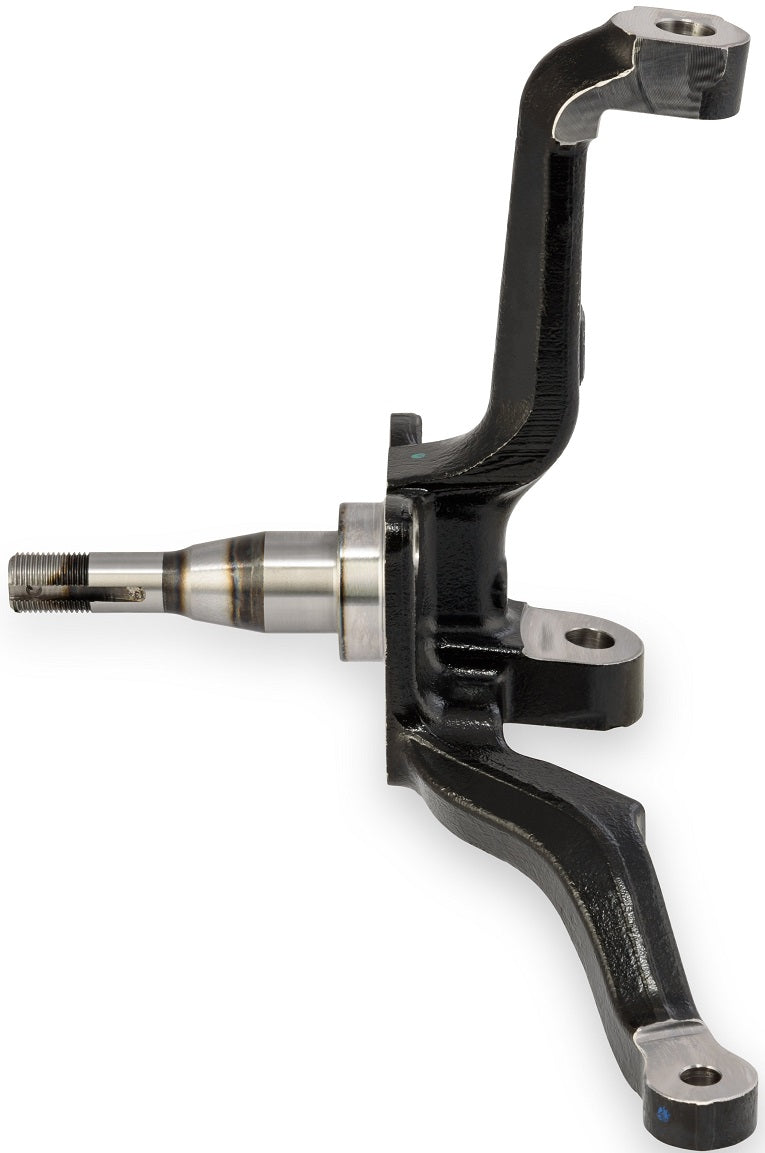

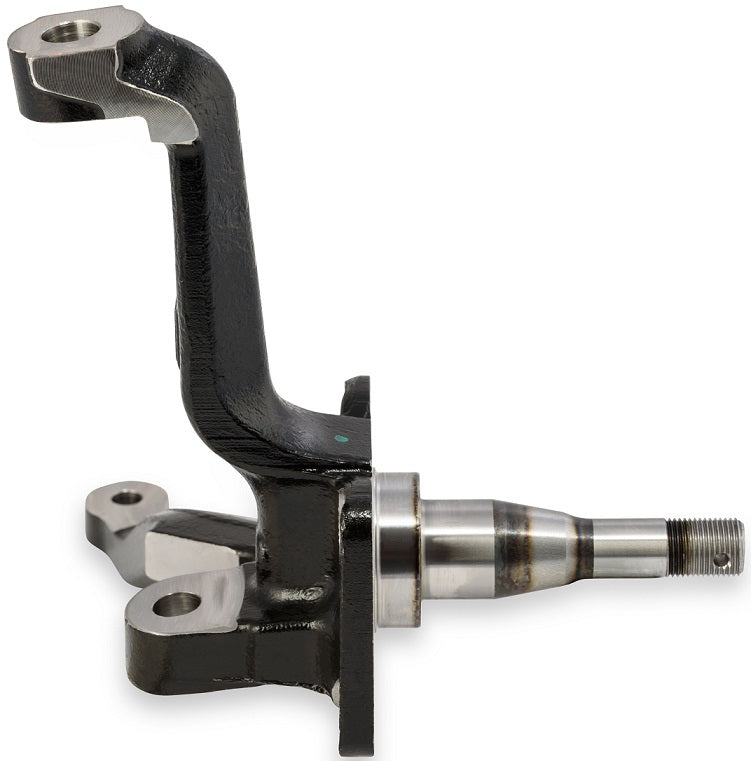

SPINDLE,LEFT,DRIVE SIDE,64-66 MUSTANG,V-8

BRAND NEW SCOTT DRAKE SPINDLE DRIVER SIDE V, BLACK, COMPATIBLE WITH 1964-1966 FORD MUSTANG 8 CYLINDER

THESE SPINDLES WERE OBSOLETED LONG AGO BY FORD AND HAVE BECOME INCREASINGLY EXPENSIVE AND EXTREMELY DIFFICULT TO FIND. SCOTT DRAKE USED A SET OF USED, BUT EXCELLENT CONDITION, FORD ORIGINALS, TO CREATE 3D SCANS WHICH WERE THEN USED FOR CAD MODELING AND THEN DOUBLE-CHECKED AGAINST ORIGINAL FORD BLUEPRINTS.

NO CORNERS WERE CUT ON THIS CRITICAL COMPONENT - THEY WERE CONSTRUCTED FROM FORGED ASTM 5140 GRADE STEEL, THEN WE APPLIED A PROTECTIVE, BLACK E-COATING, AND THEN ALL MOUNTING SURFACES WERE PRECISION MACHINED. WE TOOK SPECIAL CARE TO ENSURE BEARING TOLERANCES WERE IDENTICAL TO FORDS.

FOR AN EXTRA MEASURE OF SAFETY & DURABILITY, THE ENTIRE SPINDLE IS HEAT-TREATED AND THE BEARING SURFACE IS TREATED WITH ADDITIONAL INDUCTION HARDENING. ALL DRAKE SPINDLES ARE 100% MAGNETIC PARTICLE TESTED AS WELL. SOLD INDIVIDUALLY.

NOTE: DRIVER SIDE.

COMPATIBLE WITH:

• FORD:
• 1964-1966 MUSTANG

FEATURES:

• CONSTRUCTED USING PREMIUM FORGED JIS S45C GRADE STEEL
• HEAT-TREATED SNOUT VIA INDUCTION HARDENING
• ABLE TO BE USED WITH BOTH DISC & DRUM BRAKES
• FINISHED WITH BLACK E-COAT FOR INCREASED DURABILITY

SPECS:

• BRAND: SCOTT DRAKE
• COLOR: BLACK
• HUB INCLUDED: NO
• MATERIAL: STEEL
• MOUNTING HARDWARE INCLUDED: NO
• PRODUCT TYPE: STEERING KNUCKLE
