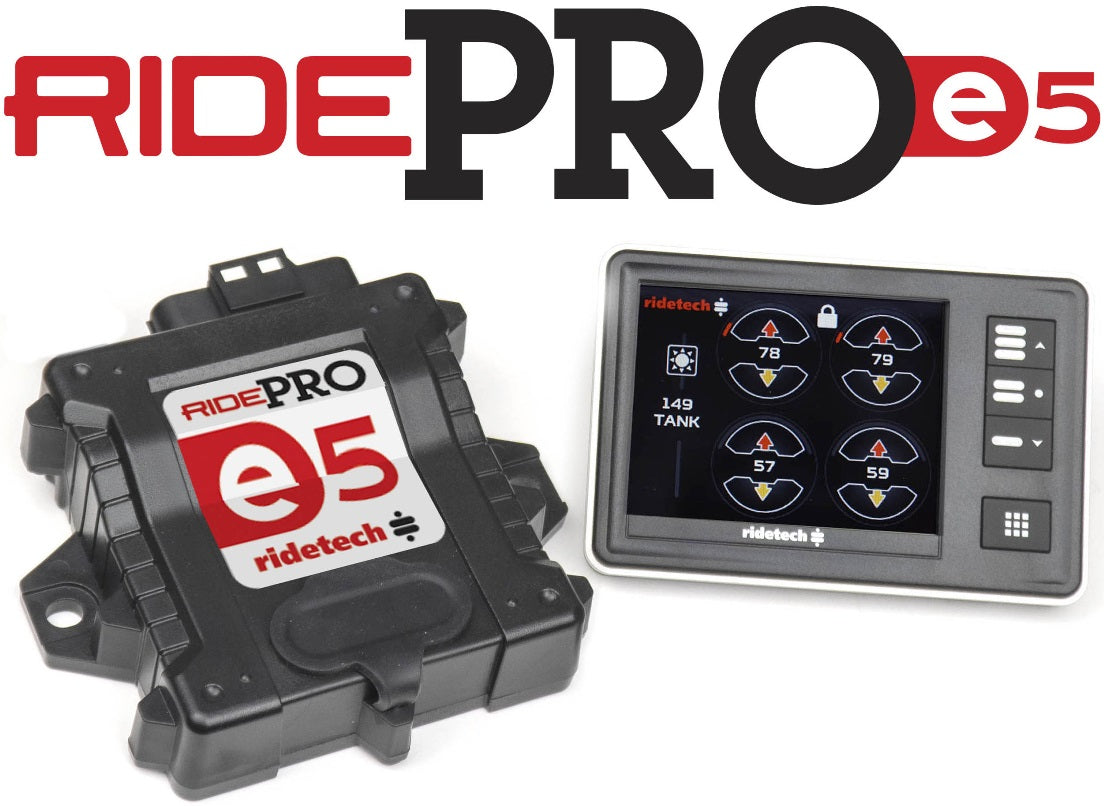

RIDEPRO E5 AIR RIDE CONTROL SYSTEM,5 GALLON DUAL COMP,1/4" VALVES

BRAND NEW RIDETECH RIDEPRO E5 AIR RIDE SUSPENSION CONTROL SYSTEM, 5 GALLON TANK, DUAL THOMAS COMPRESSORS, .25" VALVES, 3.5" LCD TOUCH SCREEN

ADJUST VEHICLE HEIGHT AT THE PUSH OF A BUTTON WHILE MAINTAINING BALANCED AIR SPRINGS. THE RIDEPRO E5 CONTROL SYSTEM TUNES AIR RIDE SUSPENSION FOR PROPER HANDLING & WORLD-CLASS RIDE QUALITY BY WAY OF SOPHISTICATED PRESSURE & HEIGHT ALGORITHMS. EACH TIME YOUR TURN THE IGNITION KEY, RIDEPRO E5 SELF ADJUSTS TO RIDE HEIGHT & COMPENSATES FOR CHANGES IN LOAD.

RIDEPRO E5 WILL CALCULATE PROPER AIR SPRING RATE & BALANCE, THEN WORK DILIGENTLY IN THE BACKGROUND TO MAINTAIN PROPER SPRING PRESSURES & VEHICLE HEIGHT. THE FULL COLOR TFT LCD. 3.5" DISPLAY WITH CAPACITIVE TOUCHSCREEN MAKE INTERACTING WITH THE CONTROL SYSTEM QUICK & EASY. ADJUSTING VEHICLE HEIGHT IS AS SIMPLE AS CHOOSING ONE OF THREE PRESETS. CONNECT A COMPATIBLE SMARTPHONE VIA BLUETOOTH & USE THE RIDEPRO E5 APP TO CONTROL THE SYSTEM WIRELESSLY.

NOTE: CHOOSE PRESSURE ONLY WITH THE RIDEPRO E5 AIR RIDE CONTROL SYSTEM OR PRESSURE & HEIGHT BY ADDING OPTIONAL RIDEPRO-HP HEIGHT SENSORS PART #30400036 FOR THE ULTIMATE ELECTRONIC AIR RIDE LEVELING CONTROL.

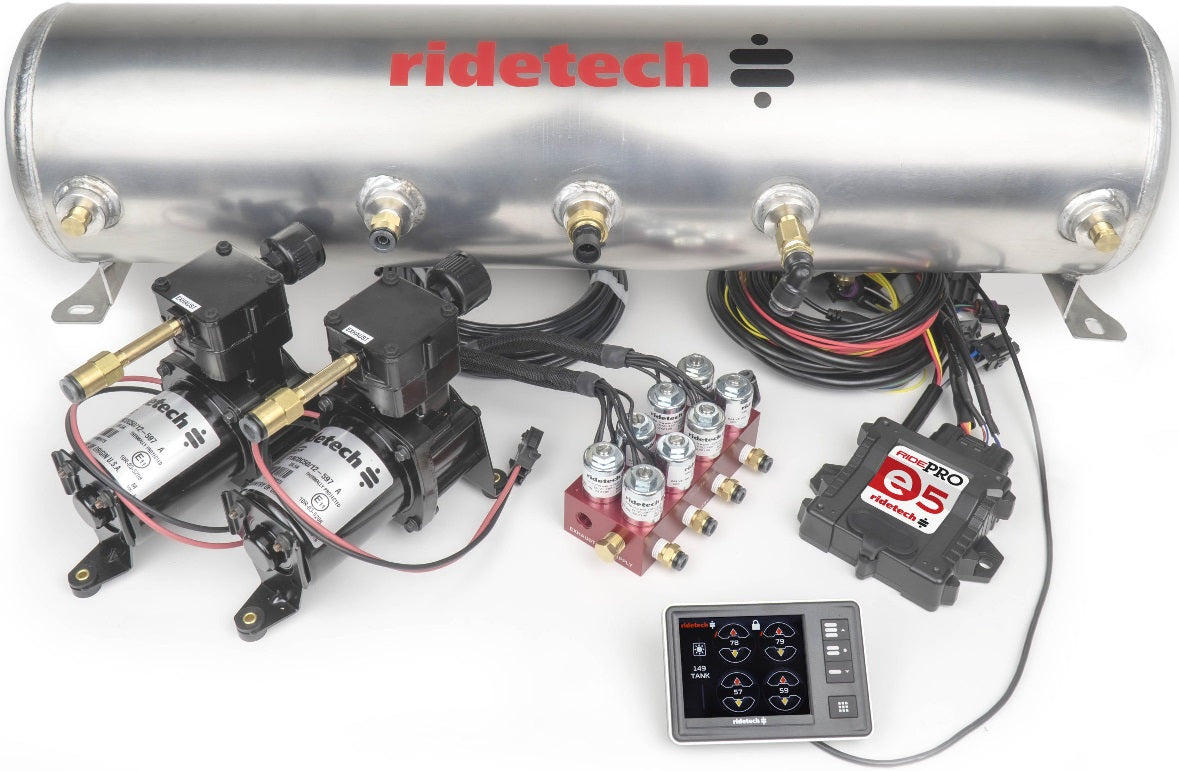

INCLUDES:

• ALUMINUM 5 GALLON TANK
• 2 THOMAS COMPRESSORS
• RIDEPRO VALVES
• 1/4" AIRLINES & FITTINGS

FEATURES:

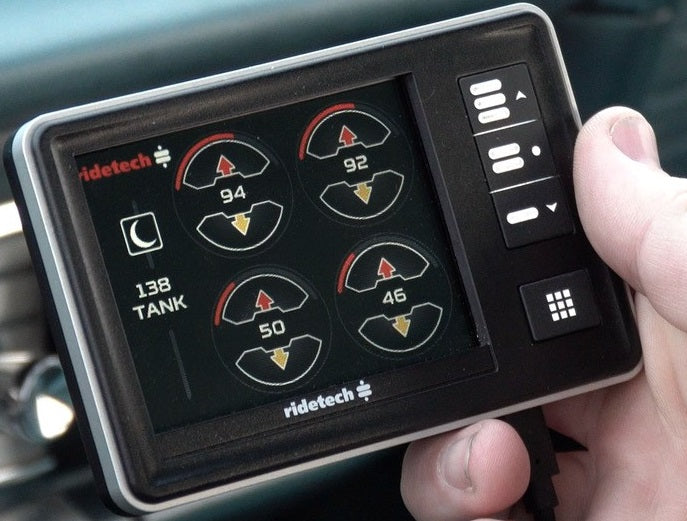

• FULL COLOR TFT LCD. 3.5" DISPLAY WITH MULTI-TOUCH CAPACITIVE TOUCHSCREEN
• 4-BUTTON SILICONE KEYPAD WITH BACKLIT SYMBOLS FOR QUICK VEHICLE HEIGHT CHANGES
• "RIDE HEIGHT ON START" AUTOMATIC LIFT & LEVEL FEATURE
• DISPLAY & SETUP VIA CONTROL PANEL, SMARTPHONE "APP" OR LAPTOP
• WEATHERPROOF ECM& HEAVY DUTY CONNECTORS
• AUTOMATIC WEIGHT COMPENSATION (WITH OPTIONAL HEIGHT SENSORS)
• RIDEPRO E5 SYSTEM IS UPGRADABLE TO RIDEPRO-HP (PRESSURE & HEIGHT) FOR THE MOST ACCURATE LEVELING SYSTEM AVAILABLE
• BLUETOOTH CONNECTIVITY TO MOST SMARTPHONES FOR WIRELESS CONTROL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS SUSPENSION CONTROL SYSTEM HERE.
