RIDEPRO E5 RIDE HEIGHT SENSOR KIT

BRAND NEW RIDETECH E5 RIDE HEIGHT SENSOR KIT

RIDEPRO-HP RIDE HEIGHT SENSORS UPGRADE YOUR EXISTING RIDEPRO E5 PRESSURE-BASED SYSTEM. THE ULTIMATE AIR SUSPENSION MANAGEMENT SYSTEM MEASURES BOTH PRESSURE & RIDE HEIGHT. WITH THE ADDITION OF RIDEPRO-HP, RIDE HEIGHT & SPRING BALANCE (LOADS) ARE ESTABLISHED BY COMPARING THE POSITION OF THE RIDE HEIGHT SENSOR TO THE AIR PRESSURE WITHIN EACH AIR SPRING.

YOUR CAR IS LEVELED WITH NO CROSS LOADING. THIS IS ESPECIALLY IMPORTANT FOR DYNAMIC DRIVING SCENARIOS WHERE QUICK TRANSITIONS OCCUR. EXAMPLES INCLUDE HIGH PERFORMANCE DRIVING, SUDDEN DIRECTIONAL CHANGES & PANIC STOPS. PRESSURE-ONLY SYSTEMS ARE GOOD AT HANDLING THESE LOAD CHANGES, BUT COMBINED PRESSURE & HEIGHT SYSTEMS WORK BEST. THE COMPLETE RIDEPRO-HP KIT IS EASY TO INSTALL.

NOTE: RIDEPRO-HP SENSORS CAN ONLY BE USED IN CONJUNCTION WITH RIDEPRO E5 DIGITAL CONTROL SYSTEM.

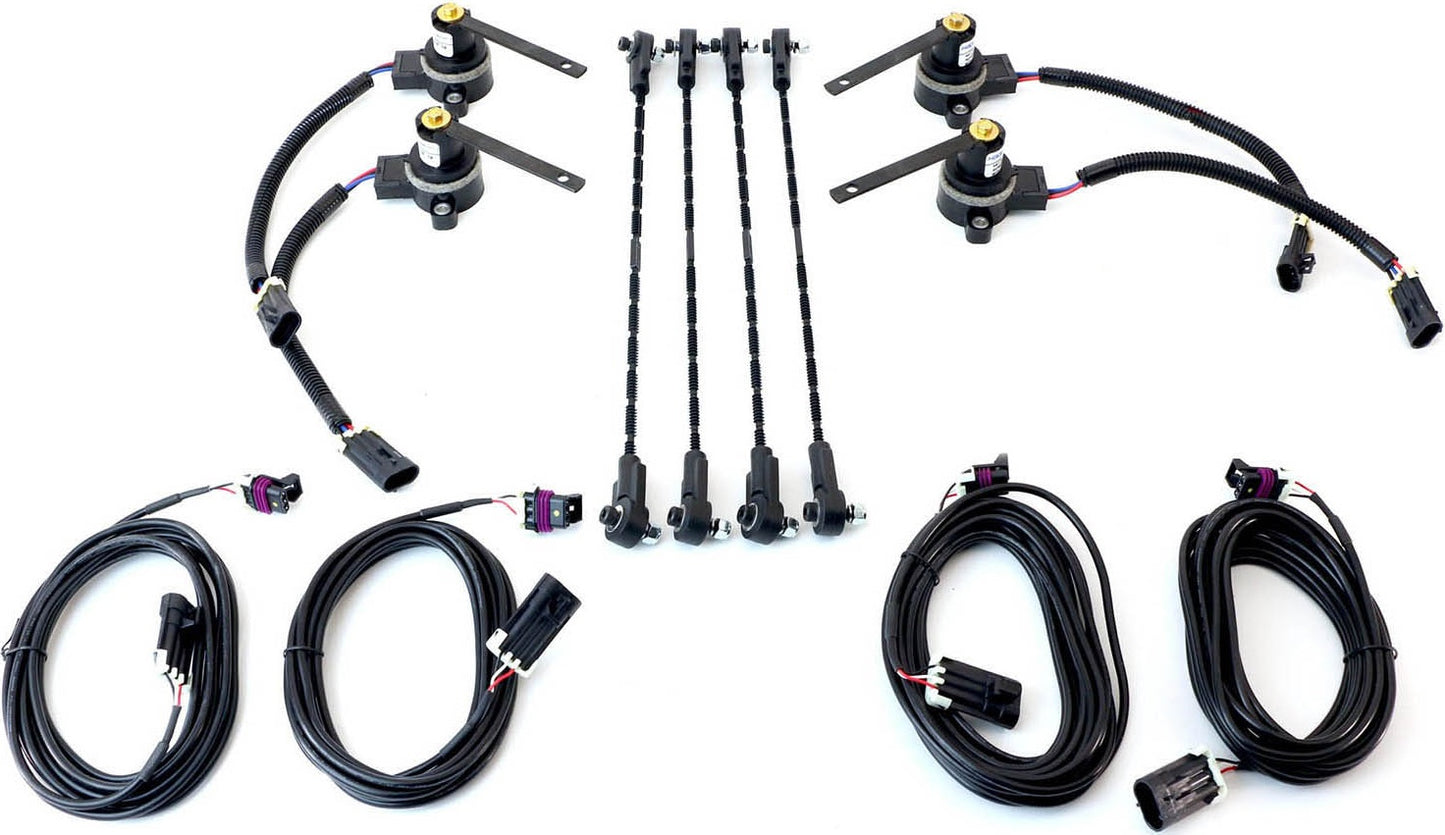

INCLUDES:

• 4 RIDE HEIGHT SENSORS
• 4 RIDE HEIGHT SENSOR LINKAGE KITS (WITH BENDABLE LINKAGE RODS & RUBBER ROD ENDS)
• GROUP HARNESS
• 1/4" SENSOR BOLTS WITH NYLOC NUTS & FLAT WASHERS
• MOUNTING TABS
• HEAT SHRINK TUBES & INSTALLATION GUIDE

FEATURES:

• WORKS WITH RIDEPRO E5 PRESSURE MEASUREMENT FOR ULTIMATE PRESSURE & HEIGHT ACCURACY
• HEAVY-DUTY RIDE HEIGHT SENSORS
• BENDABLE LINKAGE RODS WITH RUBBERIZED ROD ENDS
• WEATHERPROOF CONNECTORS & WIRING HARNESSES
• CAN BE ADDED ONTO EXISTING PRESSURE-ONLY SYSTEM INSTALLATIONS
