COILOVER SYSTEM,ARMS,FRONT & REAR,2019-2026 RAM 1500 4WD

Brand New Ridetech Performance Lowering System (Part #13130115).

This Ridetech 2019-2026 Ram 1500 lowering kit is 100% bolt-on, fully adjustable and made in the USA. It includes front and rear HQ Series Coilovers, tubular upper control arms, mounting brackets, panhard bar, sway bar end links and hardware.

Fits:

• Ram:
  • 2019-2026 1500 4WD

Notes:

• This system is not compatible with trucks equipped with factory air suspension.
• Will not fit 2019-2024 Ram 1500 Classic.

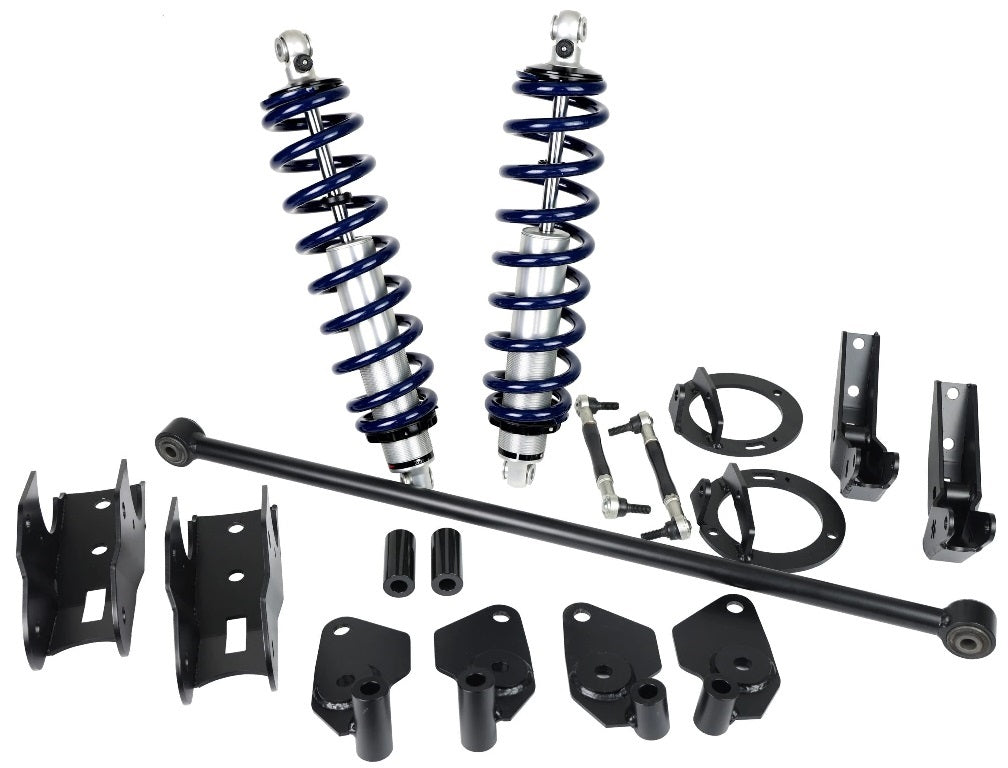

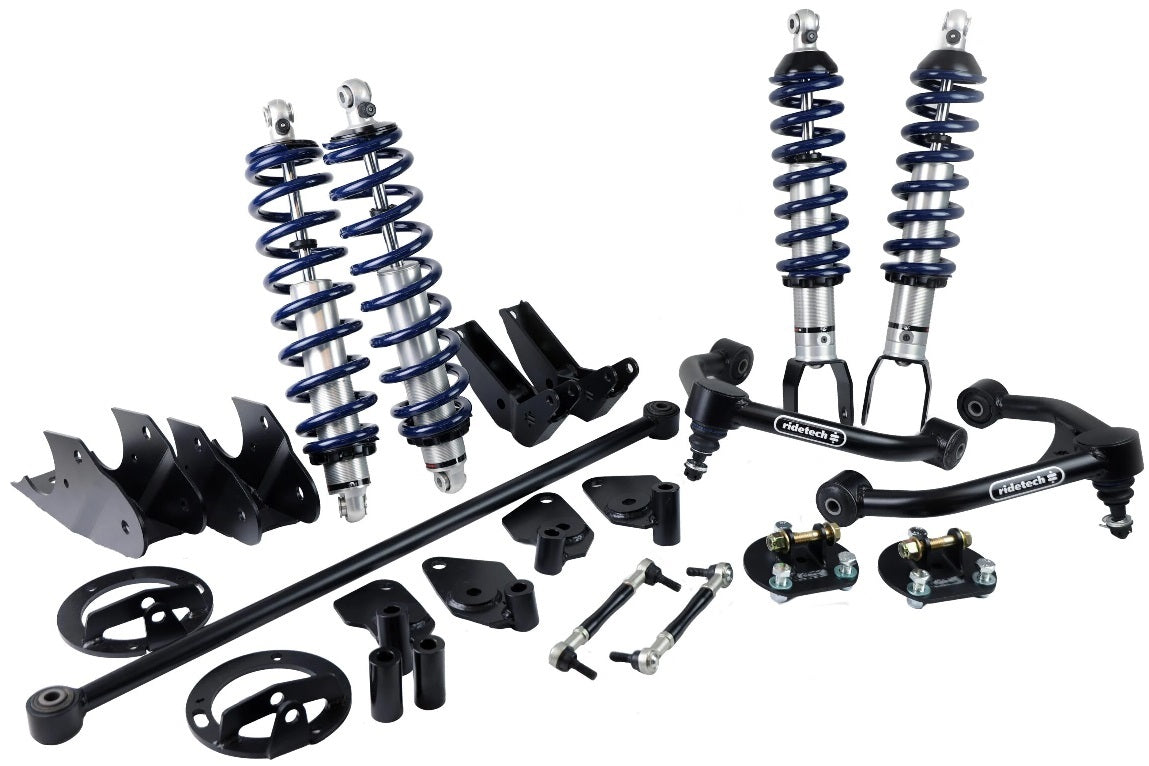

Includes:

• Front & Rear HQ Series Coilovers
• Upper StrongArms
• Panhard Bar
• Sway Bar End Links
• Mounting Hardware

Features:

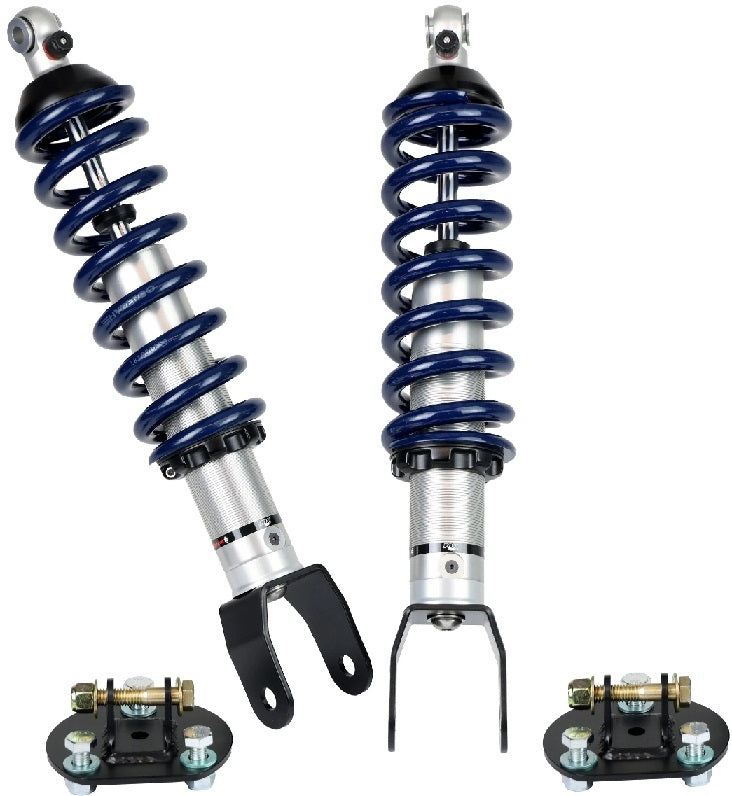

• HQ Series Coilovers:
  • Utilizes an impact forged aluminum body and monotube design to deliver excellent ride quality and handling.
  • They allow fine tuning of the ride quality and handling via the rebound knob that is located at the top of the shock for easy access.
  • Hyperco springs are used to provide a consistent spring rate that will last a lifetime.

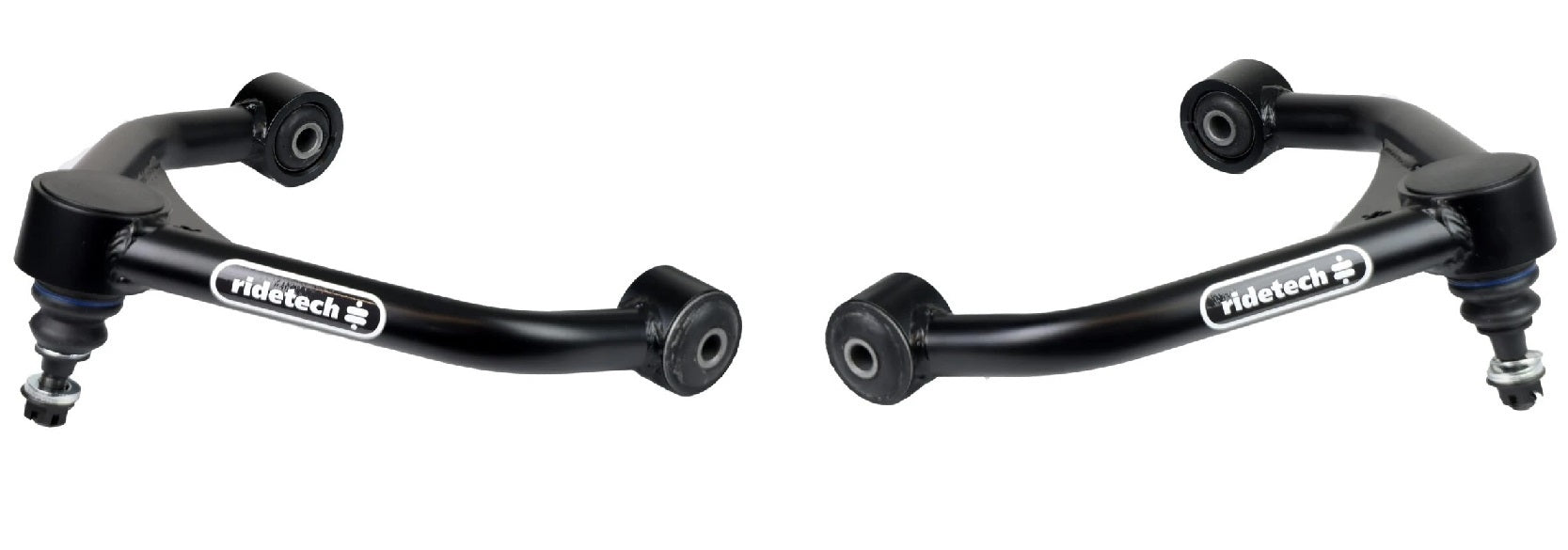

• Upper Front StrongArms:
  • Feature corrected ball joint angles and the upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel.
  • They are powder coated satin black and fully assembled with ball joints, bushing and cross shafts, ready for installation.
• Panhard Bar:
  • The system also includes a new panhard bar to re-center the axle.
  • New control arm mounts maintain optimal pinion angle and geometry at the new lowered stance.

You can view and download the assembly instruction booklet here.
