FRONT HQ COILOVERS,2015-2026 FORD F-150,2WD

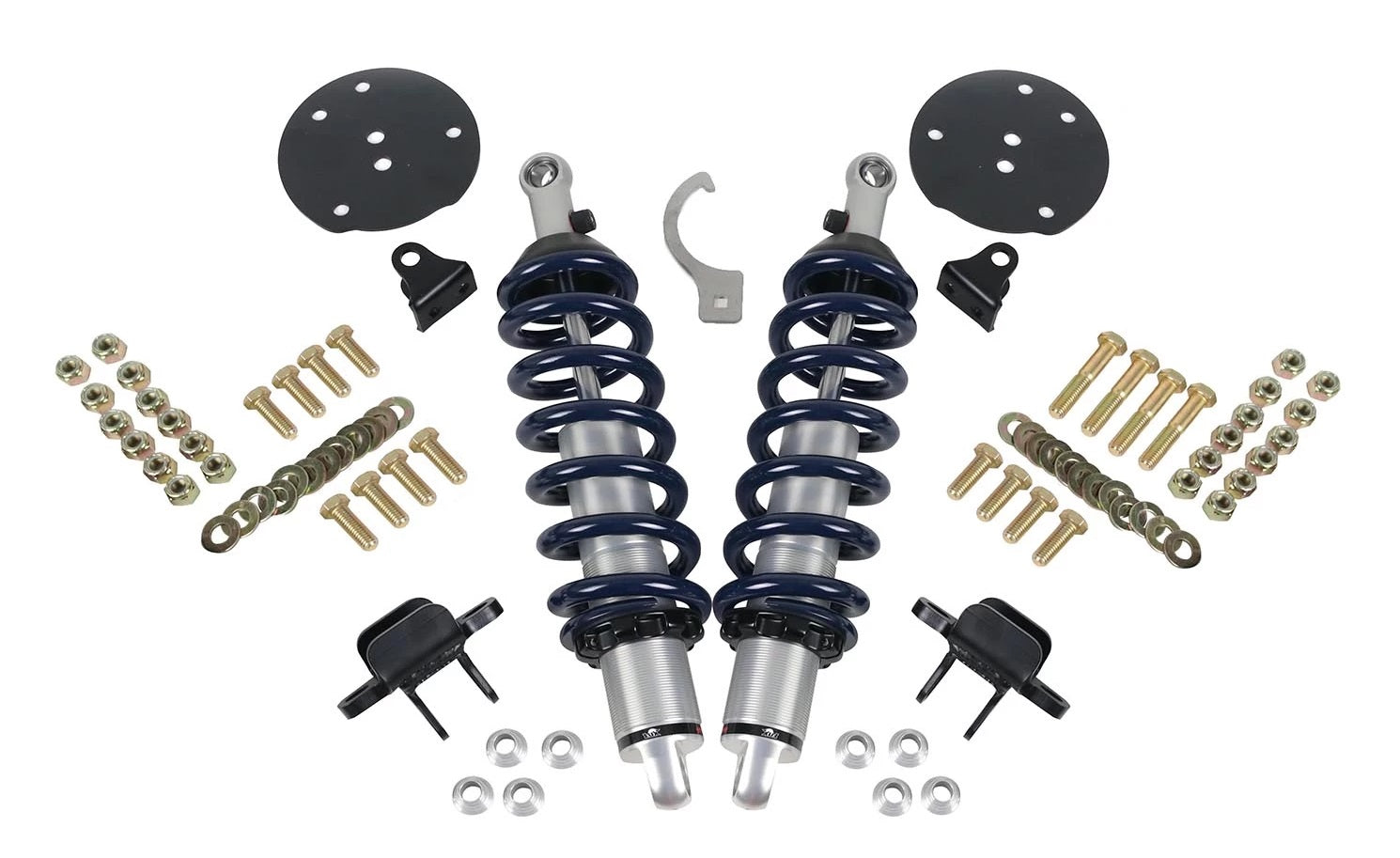

Brand New Ridetech Front HQ Series Coilovers (Part #12293110).

The Ridetech lowering kit is 100% bolt-on, fully adjustable and made in the USA. It includes everything you need to lower your GM Full size 1500 truck platform. Allows for a 1″-3″ lowered stance (2″ optimal) and are a direct replacement for factory shock and spring. They utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling. They allow fine tuning of the ride quality and handling via the rebound adjustment knob with 24 positions of adjustment. Premium Hyperco springs are used that are CNC cold wound with high tensile steel.

Fits:

• Ford:
  • 2015-2026 F-150 2WD

Notes:

• Requires Ridetech StrongArm tubular arms part #12293699 for proper camber, caster and ball-joint angles

• Does not fit PowerBoost Hybrid trucks (driveshaft clearance).

• Trucks equipped with headlight sensors require bracket kit part #12299501

Features:

• Lowered stance

• Adjustable ride height

• 1.5″ – 3” front drop

• Improved ride quality & sharper handling

• Aluminum Body

• Mono tube / gas pressure

• Adjustable valving

• Bolt-on installation

• No welding

• Adjustable ride height

• Front coil-overs adjustable spring seats

You can view and download the assembly or instruction booklet here.
