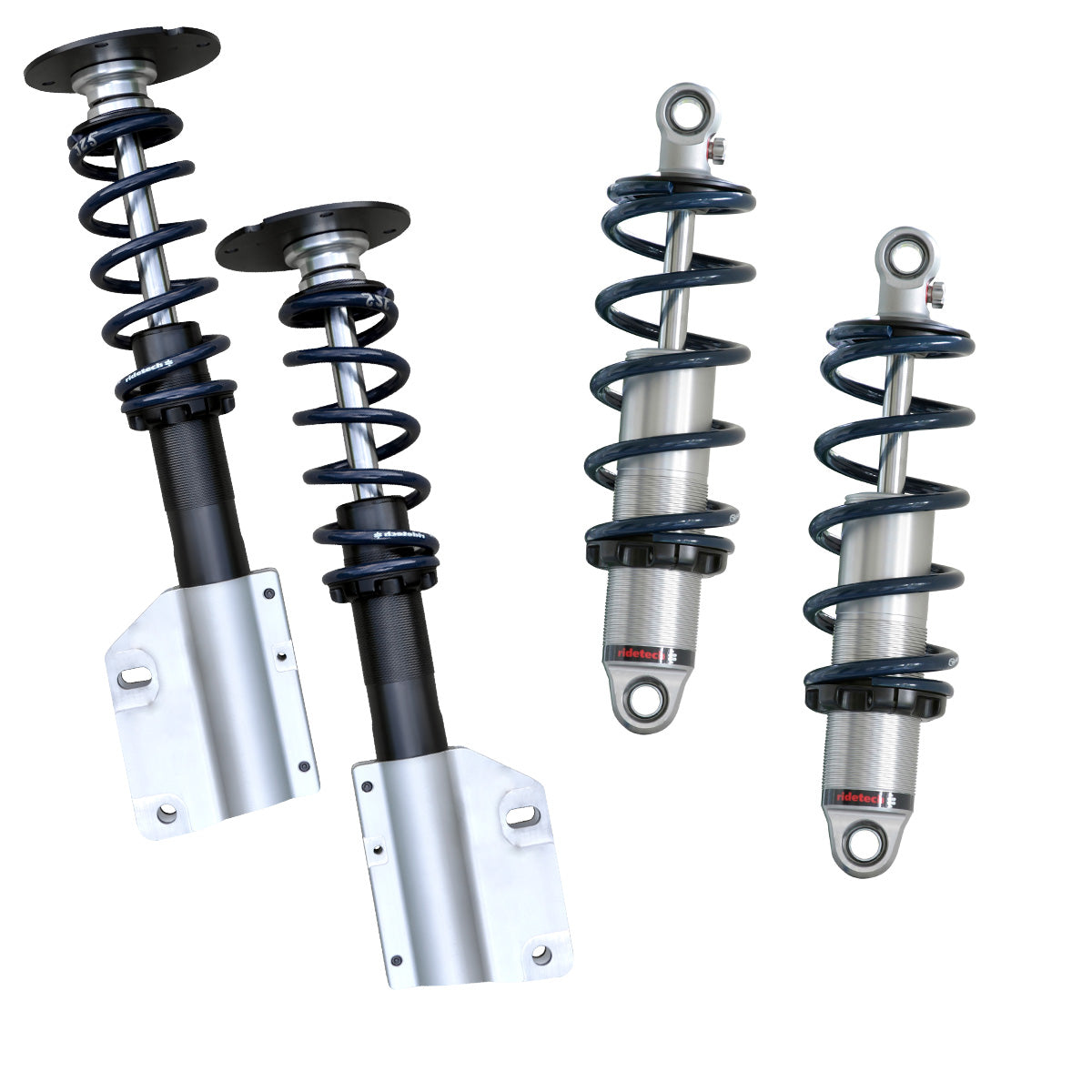

COILOVER SYSTEM,05-14 FORD MUSTANG

COILOVER SYSTEM,05-14 FORD MUSTANG

RDT 12150210

$2,500.00
$2,500.00
View full details

Brand New Ridetech HQ Series Coilover System, Monotube Shocks, 2.5" Coilover Springs, Fits 2005-2014 Ford Mustang. (Part #12150210).

Ridetech HQ coilover shocks are designed with handling performance and ride quality in mind. They feature impact-forged aluminum threaded body monotube gas-pressurized shocks that have been clear anodized for corrosion protection. Other features include: Over-sized rod guides for maximum strength and durability; Delrin coilover spring washers for easy spring retainer adjustments; stainless steel mounting brackets; CNC-machined billet hardware. The shocks include Hyperco Springs (made with high-tensile premium cold wound steel) that have a durable powder-coat finish. The unique pinch-clamp height adjusters offer finer threads for easy height adjustment.

Fits:

  • 2005-2014: Ford Mustang

Includes:

  • 2 Coil-Over Front Struts
  • 2 Coil-Over Rear Shocks; 4 Springs, With Proper Spring Rate

Features:

  • Performance Mono-Tube Strut:
    • Steel mono-tube strut design.
    • Oversized rod guides for maximum strength and durability.
    • Extruded aluminum clamp mount with integrated stainless brake line, ABS for bolt on installation.
    • Nitro carburized finish for a lasting durability.
    • Billet upper mounting bracket with built in camber/caster adjustment.
    • Integrated thrust bearing.
    • Includes hyperco springs (made with high tensile steel).
    • Delrin spring washers for easy spring retainer adjustment.
    • Available in: (Single Adjustable HQ) (Triple Adjustable TQ).

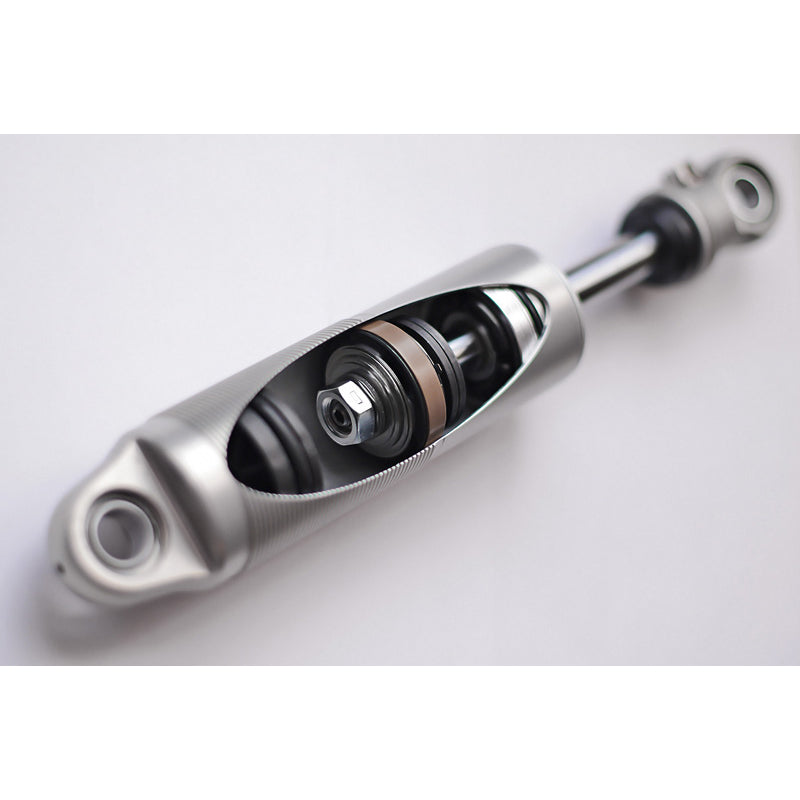

  • Ridetech Aluminum Monotube Shocks:
    • Monotube gas pressure design offers superior fade free performance.
    • Impact forged aluminum body provides superior strength and reliable service.
    • Larger 1.834" piston provides outstanding ride quality.
    • Double-sealed rod guide with dust cover eliminates oil leakage.
    • 5/8" chrome shock shaft.
  • Ridetech 2 1/2" Coilover Springs:
    • Anodized finish protects against corrosion.
    • Available as fixed valve or rebound single adjustable.
    • CNC machined billet hardware.
    • Unique pinch clamp height adjuster uses finer thread for easy adjustment.
    • Includes 1/2" bore x 1" kevlar lined bearings for noise free operation.

You can view and download the complete assembly instruction booklets HERE.
