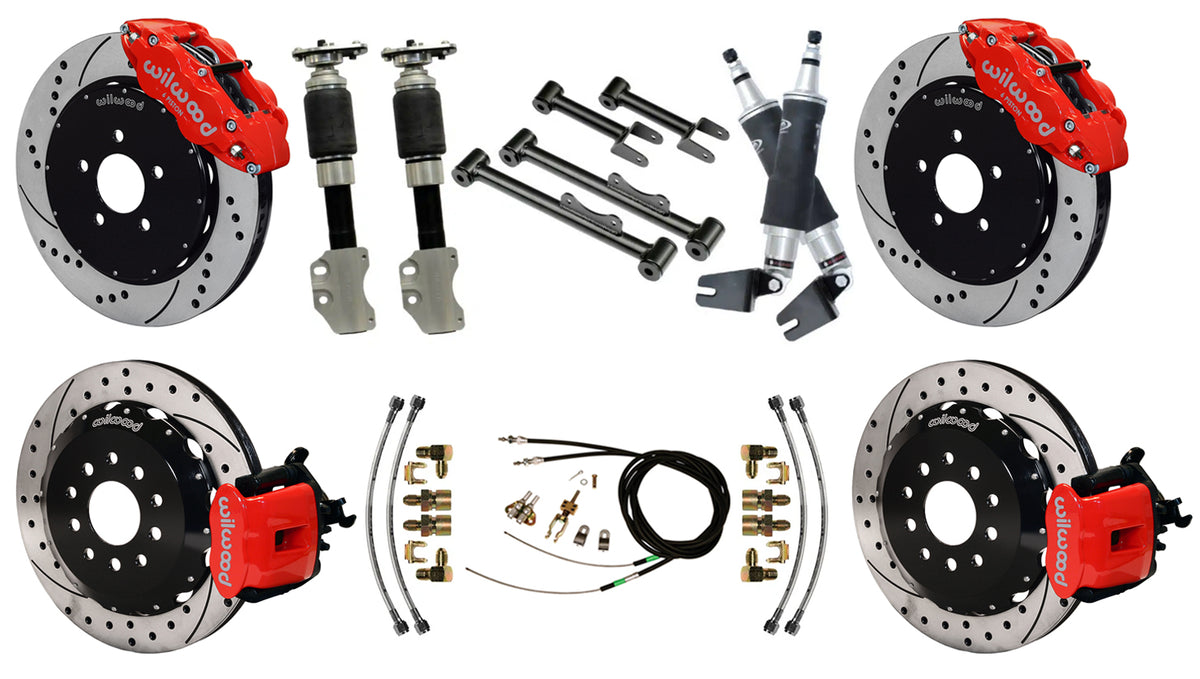

AIR RIDE SYSTEM,CURRIE REAR,WILWOOD BRAKES,14/13" DRILL,RED,94-04 FORD MUSTANG

Brand New Ridetech Front & Rear Air Suspension System and Wilwood Disc Brake Kit, including HQ Series Front ShockWaves, HQ Series Rear ShockWaves, Rear Upper and Lower StrongArms, 14" Front & 13" Rear Rotors, Brake Calipers, Brake Lines, Parking Brake Cable Kit, and more (Part #12140298-44).

Air Suspension System for 94-04 Mustang. Looking for the ultra-low stance without compromises? We offer a complete bolt-on system that will not only put your car in the weeds, but make it ride like a luxury car but still perform like a true track champion. Adding the Ridepro X System allows for 3 presets for fast and accurate ride height control.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Each kit is engineered specific for each vehicle.

We offer numerous configurations of these kits with many different options. Scroll to the bottom to the "Also Available" section to see everything we have in stock and ready to ship to you today.

Note: Air Ride Suspension control system not included.

Complete System Includes:

• HQ Series Front ShockWaves
• HQ Series Rear ShockWaves
• Rear Upper and Lower StrongArms
• Wilwood Front Disc Brake Kit with 14" Drilled Rotors and Red Calipers (140-9117-DR):

  • The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines.
  • These Brake kits require at least 18" diameter wheels.
  • Kit includes parts for both front wheels:
    • Drilled & Slotted, 1.25" Thick x 14.00" O.D. Rotors with Hats
    • Forged Narrow Superlite 6R Calipers - Red
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both front wheels
• Wilwood Rear Disc Brake Kit with 13" Drilled Rotors and Red Calipers (140-10158-DR):

  • Combination hydro-mechanical Parking Brake calipers use hydraulic pressure from the master cylinder for stopping power, and an internal mechanical lock within the caliper for a parking brake. CPB kits are built primarily for front wheel drive vehicles, and select rear wheel drive axles that are not well suited for internal shoe style parking brakes. The calipers are coupled with oversized two-piece rotor assemblies with aluminum hats and high friction BP-10 compound pads. CPB kits provide the correct balanced brake performance and matching style to compliment front big brake upgrade kits.
  • Kit includes parts for both rear wheels:
    • Drilled & Slotted, 1.00" Thick x 12.88" O.D. Rotors with Hats
    • Combination Parking Brake Calipers - Red
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Front & Rear Flexline Kits:
  • Steel braided brake lines, caliper fittings, and chassis fittings to connect the calipers to the hard lines
  • Also includes weld-on line tabs to install on your rear end
• Rear Parking Brake Cable Kit (330-11282):
  • Connects to the Wilwood Parking Brake Assemblies, then comes together to join the stock cable behind the transmission

Fits:

• Ford:
  • 1994-2004 Mustang

You can view and download the complete assembly instruction booklet for the Ridetech Kit, Front Brake Kit, and the Rear Brake Kit.
