COILOVER SYSTEM,94-04 FORD MUSTANG

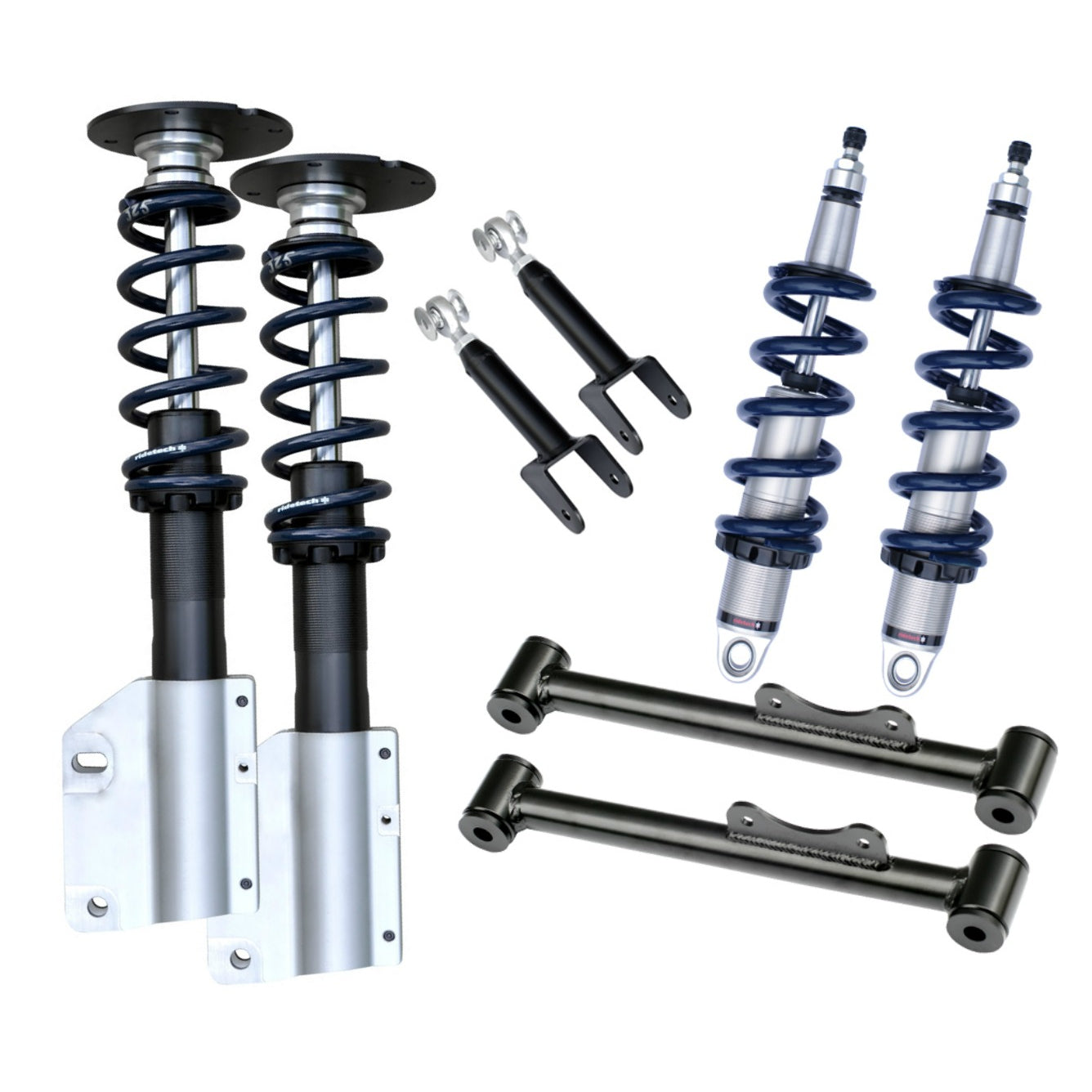

Brand New Ridetech HQ Series Coilover System, Monotube Shocks, 2.5" Coilover Springs, Rear Upper; Lower Strong Arms, Mounting Brackets; Hardware Fits 1994-2004 Ford Mustang. (Part #12140210).

The level 2 system provides adjustable rebound tuning with our front & rear HQ coilovers.

Fits:

• 1994-2004 Ford Mustang

Includes:

• 2 Coil-Over Front Struts
• 2 Coil-Over Rear Shocks & 4 Springs, W/ Proper Spring Rate

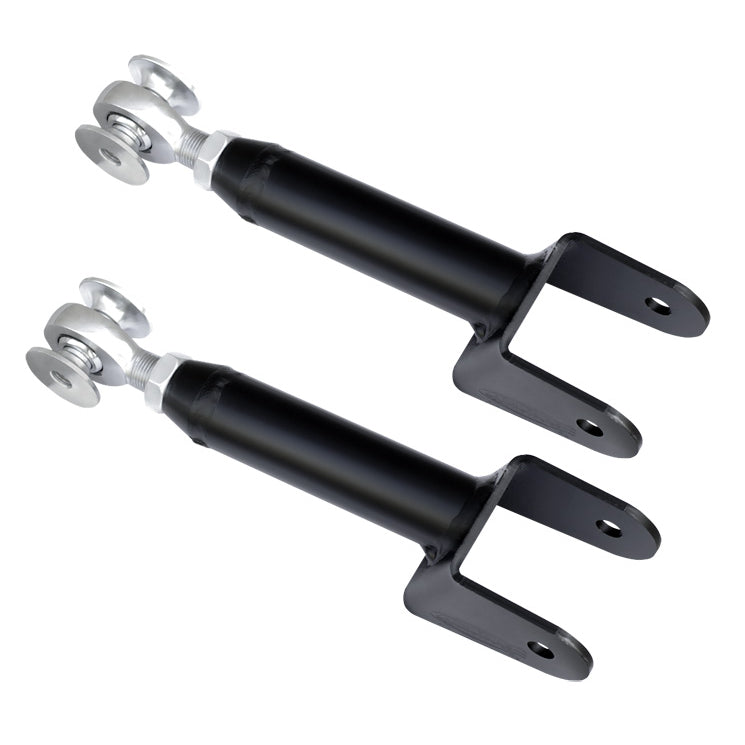

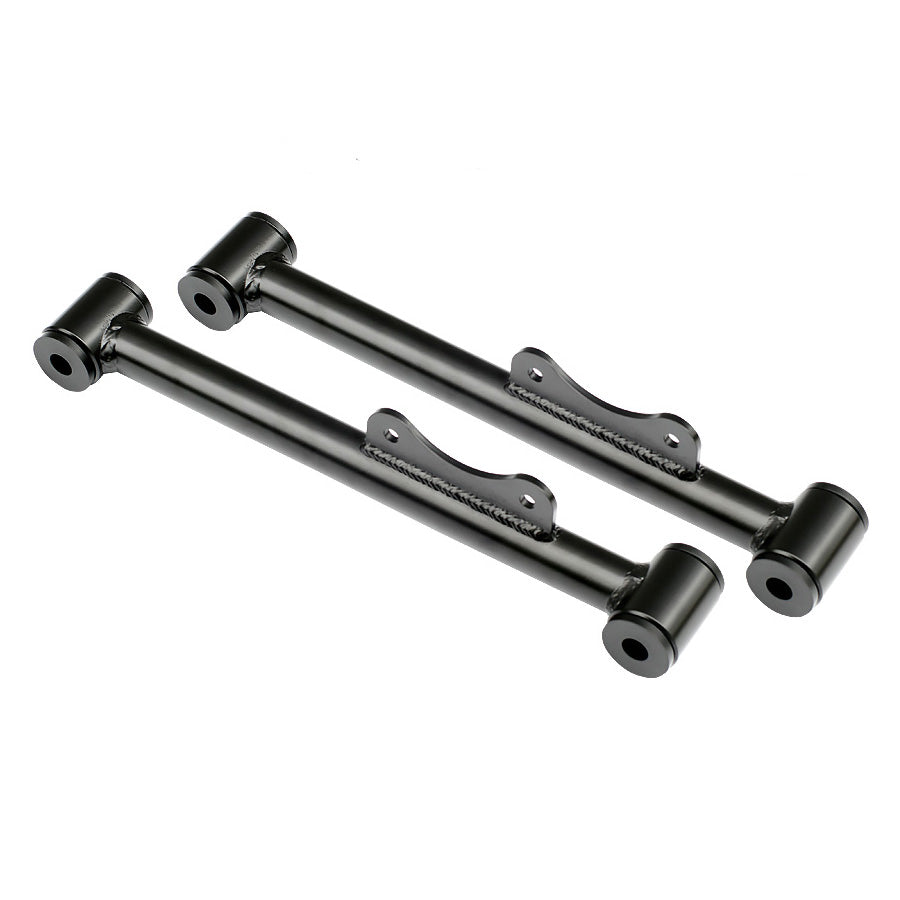

• Rear Upper & Lower Strongarms
• All Mounting Brackets & Hardware

Features:

• Front Performance Monotube Strut:
  • Steel Mono-tube strut design

  • Oversized rod guides for maximum strength & durability
  • Extruded aluminum clamp mount
  • Nitro Carburized Finish for a lasting durability
  • Billet upper mounting bracket w/ built in camber/caster adjustment
  • Integerated thrust bearing
  • Includes HyperCo Springs made w/ high tensile steel
  • Delrin spring washers for easy spring retainer adjustment
  • Available in single adjustable HQ

• Rear Ridetech 2 1/2" Coilover Springs:
  • High Tensile Premium Steel CNC Cold Wound, less weight, more resistant to bowing, increased travel w/ durable powered coated finish

  • Anodized finish protects against corrosion
  • Available as fixed valve or rebound single adjustable
  • CNC machined billet hardware
  • Unique pinch clamp height adjuster uses finer thread for easy adjustment
  • Includes 1/2" Bore x 1" Kevlar lined bearings for noise free operation

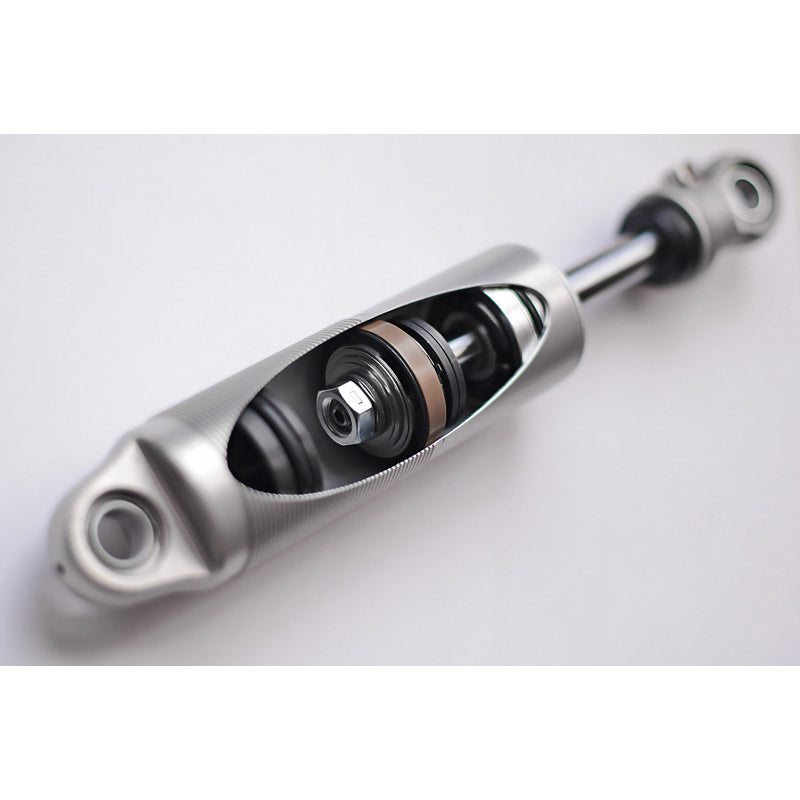

• Rear Ridetech Aluminum Monotube Shocks:
  • Monotube gas pressure design offers superior fade free performance

  • Impact forged aluminum body provides superior strength & reliable service
  • Larger 1.834" piston provides outstanding ride quality
  • Double sealed rod guide w/ dust cover eliminates oil leakage
  • 5/8" chrome shock shaft

You can view and download the complete assembly instruction booklets here for the level 2 coilover system, coilover instructions, and quick shock tuning guide.
