AIR RIDE SYSTEM,CURRIE REAR,WILWOOD BRAKES,11" BLACK,90-93 FORD MUSTANG

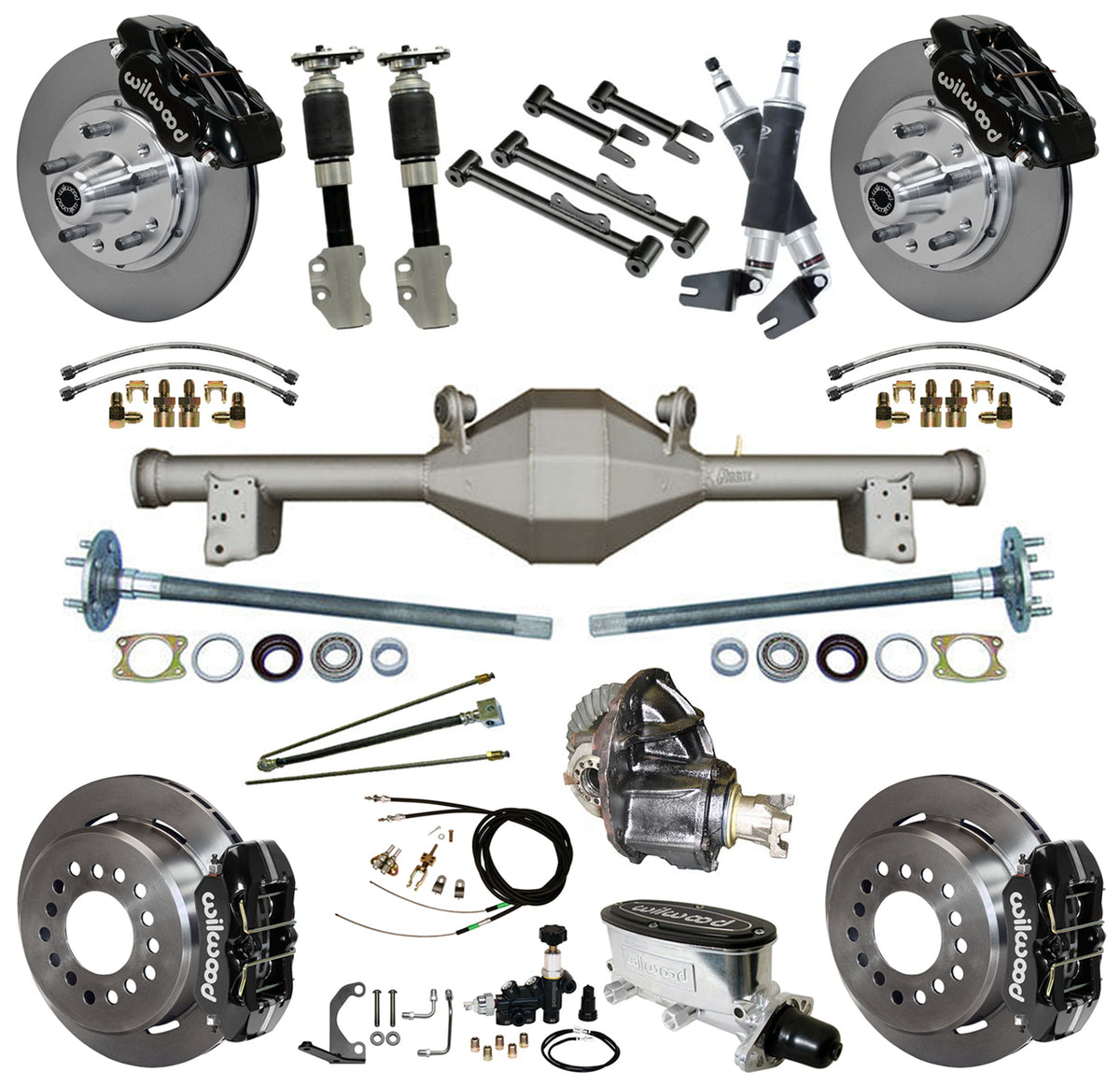

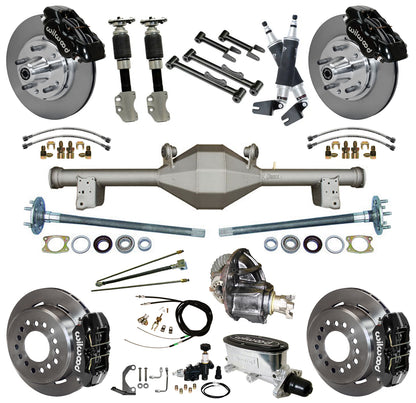

Brand New Ridetech Front and Rear Air Suspension System with Currie Ford Rear End, Southwest Speed Posi-Trac 3rd Member, and Wilwood Disc Brake Kit, including HQ Series Front Shockwaves, HQ Series Rear Shockwaves, Rear Upper and Lower StrongArms, 11" Rotors, Brake Calipers, Master Cylinder, Proportioning Valve, Brake Lines, Parking Brake Cable Kit, and more (Part #12130298-51).

Air suspension systems for the 1990-1993 Mustang platform are a great way to enhance cornering ability and improve ride quality over factory components. Ridetech strives to exceed expectations when it comes to performance handling and ride quality and this package checks each off those boxes. The system uses quality components designed specifically for the Mustang platform and come from our ISO 9001 certified facility in Jasper, Indiana.

This Currie F9 rear end has stock suspension brackets installed in the stock location for an easy bolt-in installation, and urethane upper control arm bushings are installed in the upper control arm housing brackets. The Southwest Speed 3rd member is the perfect compliment to the Currie rear end. It comes completely assembled and ready to bolt in the Currie housing, with a 31 spline posi-trac unit, premium ring & pinion, and solid shim set. This kit comes with a 3.70 ratio gear, which is a good cruising ratio. We have ratios from 3.50 to 5.00 that can be substituted in for no additional cost. If you would like a different ratio besides the 3.70, just make sure to request that.

Wilwood brake kits consist of specifically engineered & matched groups of components designed to provide superior brake system performance & custom appeal over a wide range of applications. These kits are the perfect compliment to wheel, tire, and suspension upgrades. Each kit is engineered specific for each vehicle.

We offer numerous configurations of these kits with many different options. Scroll to the bottom to the "Also Available" section to see everything we have in stock and ready to ship to you today.

Note: Air Ride Suspension control system not included.

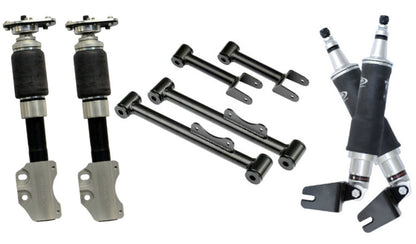

Complete System Includes:

• HQ Series Front Shockwaves
• HQ Series Rear Shockwaves
• Rear Upper and Lower StrongArms
• Currie F9 Fabricated Rear End with 31 Spline Axles:
  • F9 Fabricated heavy duty housing
  • 31 Spline performance axle package
  • Built to the stock overall width (59 1/2") and pinion offset specs
    • 59 1/2" is measured outside-of-axle-flange to outside-of-axle-flange, in other words, where the wheel bolts on to where the wheel bolts on
  • Stock suspension brackets are installed in the stock location for an easy bolt-in installation, and urethane upper control arm bushings are installed in the upper control arm housing brackets
  • Housing includes all 3rd member studs installed
  • These are 9" Ford center sections, so they do require a 9" Ford 3rd Member (sometimes referred to as a Chunk);  if you don't currently have one, we do offer them in several ratios.
  • Axles include:
    • Stock 5 x 4 1/2" wheel bolt pattern
    • Wheel studs installed
    • 1/4" Thick heavy-duty bearing retainer plates
    • Tapered Timken style wheel bearings pressed on
  • The Axle flanges on this rear end are the Big Bearing Ford (New Style), also known as "Torino", which fit the Wilwood brakes perfectly
• Southwest Speed 9" Ford Rear End Third Member with Posi Trac-Loc:
  • This kit comes with a 3.70 ratio gear, which is a good cruising ratio. We have ratios from 3.50 to 5.00 that can be substituted in. If you would like a different ratio besides the 3.70, just make sure to request that.
  • 9" Ford case is reconditioned and sold completely assembled with:
    • New 31 Spline Trac-Loc Posi Unit
      • 4 Pin limited slip trac loc
      • Brand new, not rebuilt
      • This is a clutch style posi unit
      • Using this product does require friction modifier in the gear lube
    • New Premium Ring & Pinion
    • New Solid Shim Set
    • New Bearings
    • New Pinion Yoke
    • 3rd Member Gasket
    • Instructions Detailing Proper Break-In Procedure
  • Professionally set up with proper lash
  • Pinion is precision matched to ring gear
  • Pinion yoke is 1310 series "short" yoke; Accepts 1310 series u-joints, which have 1 1/16" outside diameter cups and measure 3 7/32" wide to the outside of the cups
  • In addition to this kit, we have driveshafts that will fit this application. We would just need to know what length your specific vehicle requires.
• Wilwood Front Disc Brake Kit with 11" Standard Rotors and Black Calipers (140-11018):
  • FDL Pro Series front hub kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, & heavyweight drag cars.  Based on the venerable Forged Billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements & style preferences for a daily driver, serious competition, or the most discriminating show enthusiast.  Most kits require no modification for installation.  These kits can be used with either manual or power boost master cylinders.
  • These Brake kits require at least 15" diameter wheels.
  • Kit includes parts for both front wheels:
    • .810" Thick x 11.00" O.D. Rotors
    • Forged Dynalite Calipers - Black
    • Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • Hubs, Bearings, Seals
    • All Hardware necessary to install the complete braking system on both front wheels
• Wilwood Rear Disc Brake Kit with 11" Standard Rotors and Black Calipers (140-11389):
  • Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Kit includes parts for both rear wheels:
    • .810" Thick x 11.00" O.D. Rotors with Hats
    • Low-Profile Dynapro Calipers - Black
    • Drum Parking Brake Assemblies with Caliper Mounting Brackets
    • BP-10 Smart Compound Brake Pads
    • All Hardware necessary to install the complete braking system on both rear wheels
• Front & Rear Flexline Kits:
  • Steel braided brake lines, caliper fittings, and chassis fittings to connect the calipers to the hard lines
  • Also includes weld-on line tabs to install on your rear end
• Rear Hard Line Kit:
  • Steel hard brake line tubing to connect the chassis fittings to the included rubber hose
  • Rubber hose connects those hard lines to the line on the frame
  • Note: Tubing bending is generally necessary for the installation of these lines
  • **The front flexline kit connects to the stock hard lines on your car**
• Rear Parking Brake Cable Kit:
  • Connects to the Wilwood Parking Brake Assemblies, then comes together to join the stock cable behind the transmission
• Wilwood Polished Master Cylinder & Proportioning Valve Set:
  • Polished Tandem Chamber Master Cylinder:
    • 1" Bore cylinder
    • Wilwood tandem chamber master cylinders represent the latest refinements in brake pressure actuation and fluid control. The exclusive Wilwood features incorporated in this innovative and unique new design make it the perfect choice for a wide range of custom manual or power brake applications.
    • High-pressure die casting of a premium alloy produces a high-capacity body that is lightweight, looks great, and has the durability for competition. A black anodized, machined billet lid captures a pressure balanced bellows gasket with 100% sealing against moisture invasion or fluid leakage.
    • Each master cylinder is configured with full separation between the front and rear reservoir chambers and fluid outlets. There is pressure access on both sides of the piston bore for right or left hand plumbing based on mount location. A total piston stroke of 1.10" is distributed at a 2:1 volume ratio between the primary and secondary chambers.
    • Diagram shown at the bottom
  • Adjustable Combination Proportioning Valve:
    • Simplifies mounting, fluid circuit plumbing, brake light wiring, and brake bias adjustments on modified, custom built, or competition vehicles equipped with brake system upgrades
    • Maintains full separation between the front and rear fluid circuits
    • Bias proportioning adjustment is provided in the rear fluid circuit
    • The front circuit has a single inlet and two outlets for optional line routing
    • A fluid port with a pressure switch responds instantly to pressure in the front fluid circuit for brake light activation. A wiring pigtail with a protective boot is included with the switch
    • Diagram shown at the bottom
  • Stainless Steel Fluid Tubes:
    • Precision bent with preinstalled stainless tube nuts for a simple bolt-on installation
  • Mounting Bracket:
    • Black e-coating will give years of durable, rust-free performance
  • Stainless Steel Button Head Bolts

Fits:

• Ford:
  • 1990-1993 Mustang with V-8 spindles only, 5-lug

You can view and download the complete assembly instruction booklet for the Ridetech Kit, Front Brake Kit, and the Rear Brake Kit.
