COILOVER SYSTEM,90-93 FORD MUSTANG

COILOVER SYSTEM,90-93 FORD MUSTANG

RDT 12130210

$3,180.00
$3,180.00
View full details

BRAND NEW RIDETECH HQ SERIES COILOVER SYSTEM, MONOTUBE SHOCKS, 2.5" COILOVER SPRINGS, REAR UPPER & LOWER STRONGARMS, MOUNTING BRACKETS & HARDWARE FITS 1990-1993 FORD MUSTANG

RIDETECH 1990-93 MUSTANG AIR SUSPENSION SYSTEMS PROVIDE THE PERFECT SOLUTION TO THE PERFECT STANCE AT THE PERFECT PRICE. THESE SYSTEMS WILL ALSO IMPROVE THE RIDE QUALITY AND HANDLING WITH AN EMPHASIS ON FUNCTION AND SAFETY FOR YOUR CLASSIC.

FITS:

  • 1990-1993: FORD: MUSTANG

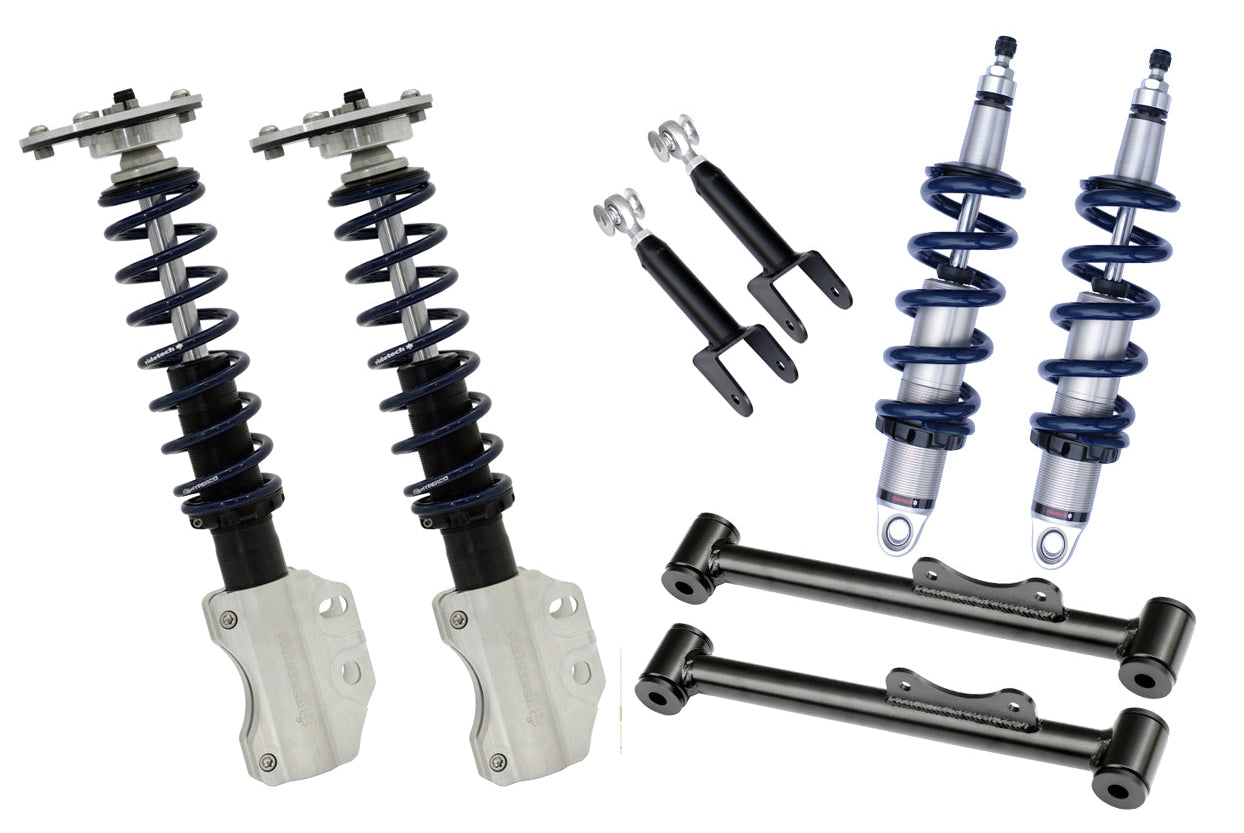

INCLUDES:

  • 2 COIL-OVER FRONT STRUTS
  • 2 COIL-OVER REAR SHOCKS & 4 SPRINGS, W/ PROPER SPRING RATE
  • REAR UPPER & LOWER STRONGARMS
  • ALL MOUNTING BRACKETS & HARDWARE

FEATURES:

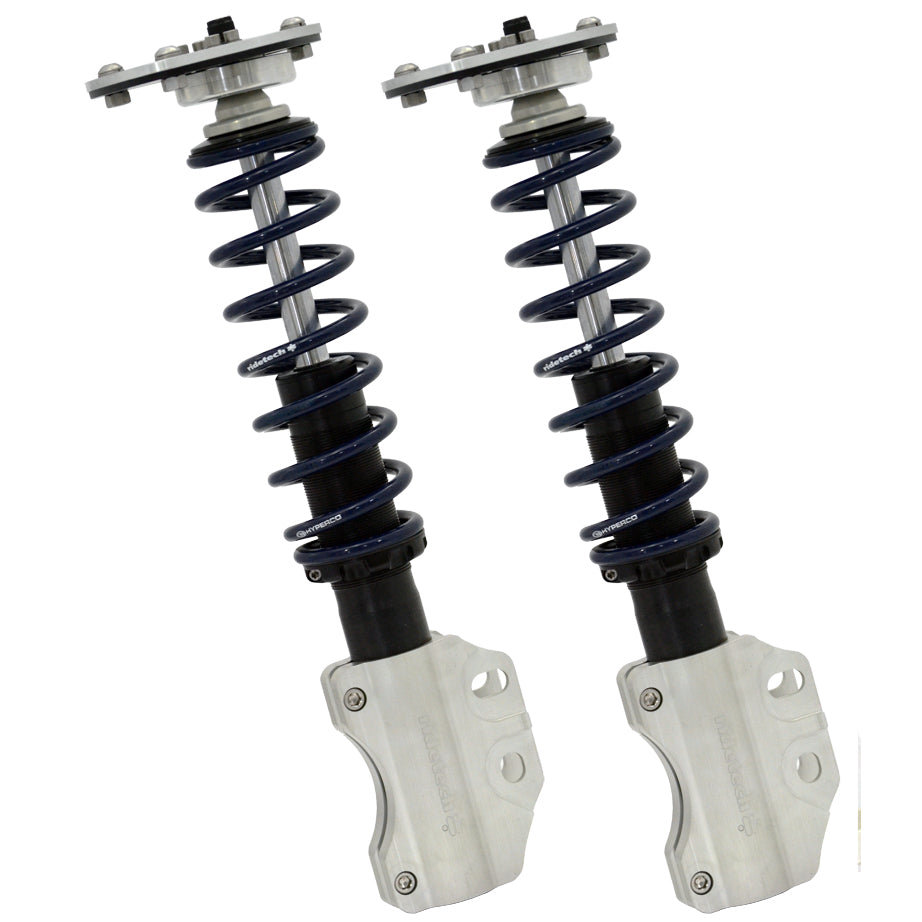

  • FRONT PERFORMANCE MONOTUBE STRUT:
    • STEEL MONO-TUBE STRUT DESIGN.
    • OVERSIZED ROD GUIDES FOR MAXIMUM STRENGTH & DURABILITY.
    • EXTRUDED ALUMINUM CLAMP MOUNT.
    • NITRO CARBURIZED FINISH FOR A LASTING DURABILITY.

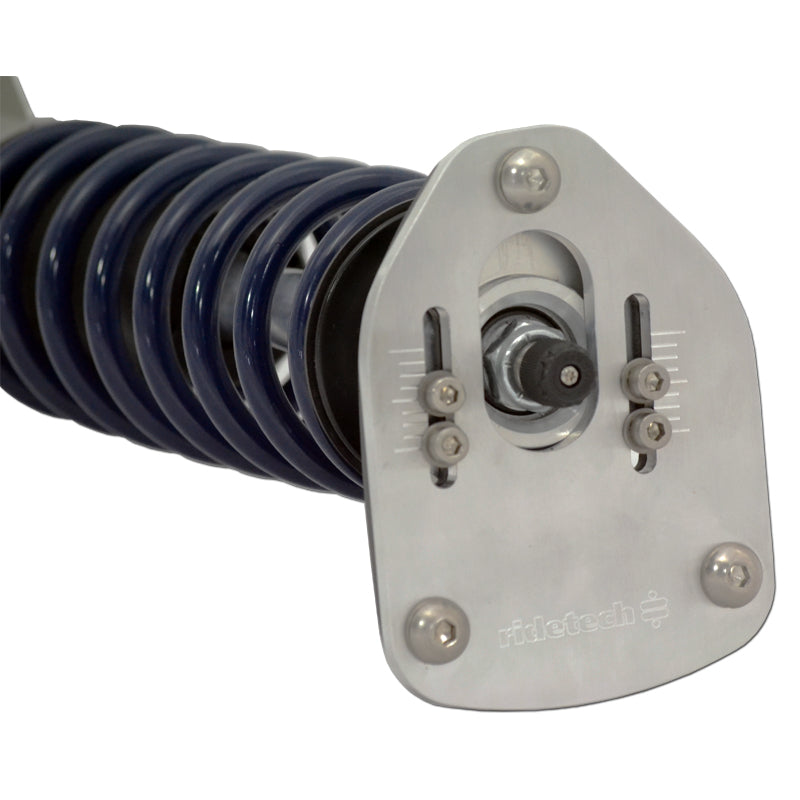

    • BILLET UPPER MOUNTING BRACKET W/ BUILT IN CAMBER/CASTER ADJUSTMENT.
    • INTEGERATED THRUST BEARING.
    • INCLUDES HYPERCO SPRINGS MADE W/ HIGH TENSILE STEEL.
    • DELRIN SPRING WASHERS FOR EASY SPRING RETAINER ADJUSTMENT.
    • AVAILABLE IN SINGLE ADJUSTABLE HQ.
  • REAR RIDETECH 2 1/2" COILOVER SPRINGS:
    • HIGH TENSILE PREMIUM STEEL CNC COLD WOUND, LESS WEIGHT, MORE RESISTANT TO BOWING, INCREASED TRAVEL W/ DURABLE POWERED COATED FINISH.
    • ANODIZED FINISH PROTECTS AGAINST CORROSION.
    • AVAILABLE AS FIXED VALVE OR REBOUND SINGLE ADJUSTABLE.
    • CNC MACHINED BILLET HARDWARE.
    • UNIQUE PINCH CLAMP HEIGHT ADJUSTER USES FINER THREAD FOR EASY ADJUSTMENT.
    • INCLUDES 1/2" BORE X 1" KEVLAR LINED BEARINGS FOR NOISE FREE OPERATION.

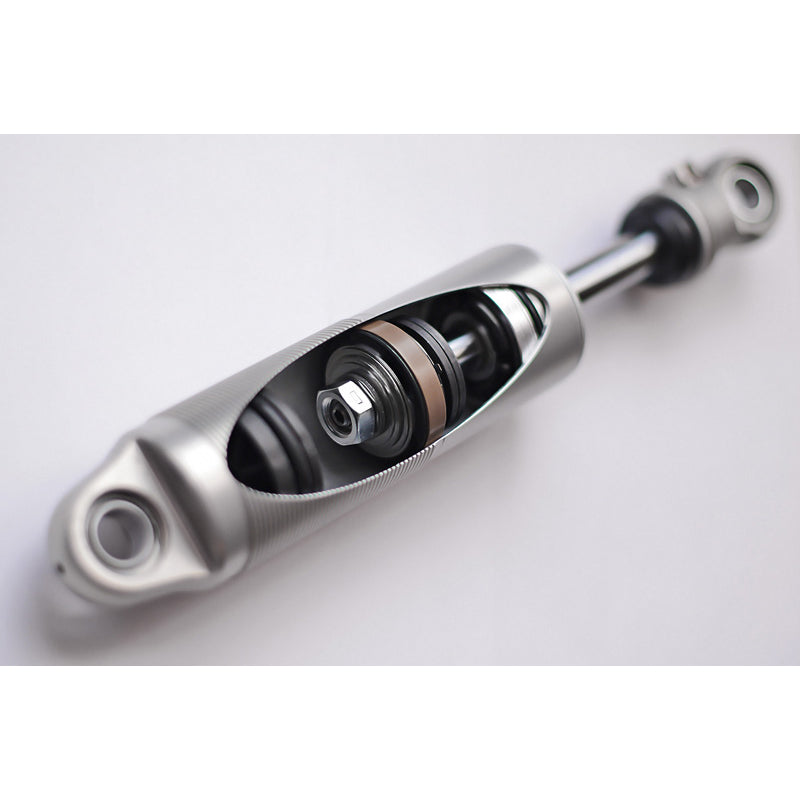

  • REAR HQ SERIES SHOCKWAVES:
    • MONOTUBE GAS PRESSURE DESIGN OFFERS SUPERIOR FADE FREE PERFORMANCE.
    • IMPACT FORGED ALUMINUM BODY PROVIDES SUPERIOR STRENGTH & RELIABLE SERVICE.
    • LARGER 1.834" PISTON PROVIDES OUTSTANDING RIDE QUALITY.
    • DOUBLE SEALED ROD GUIDE W/ DUST COVER ELIMINATES OIL LEAKAGE.
    • 5/8" CHROME SHOCK SHAFT.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS HERE FOR THE LEVEL 2 COILOVER SYSTEM, COILOVER INSTRUCTIONS, AND QUICK SHOCK TUNING GUIDE.
