COILOVER SYSTEM,79-89 FORD MUSTANG

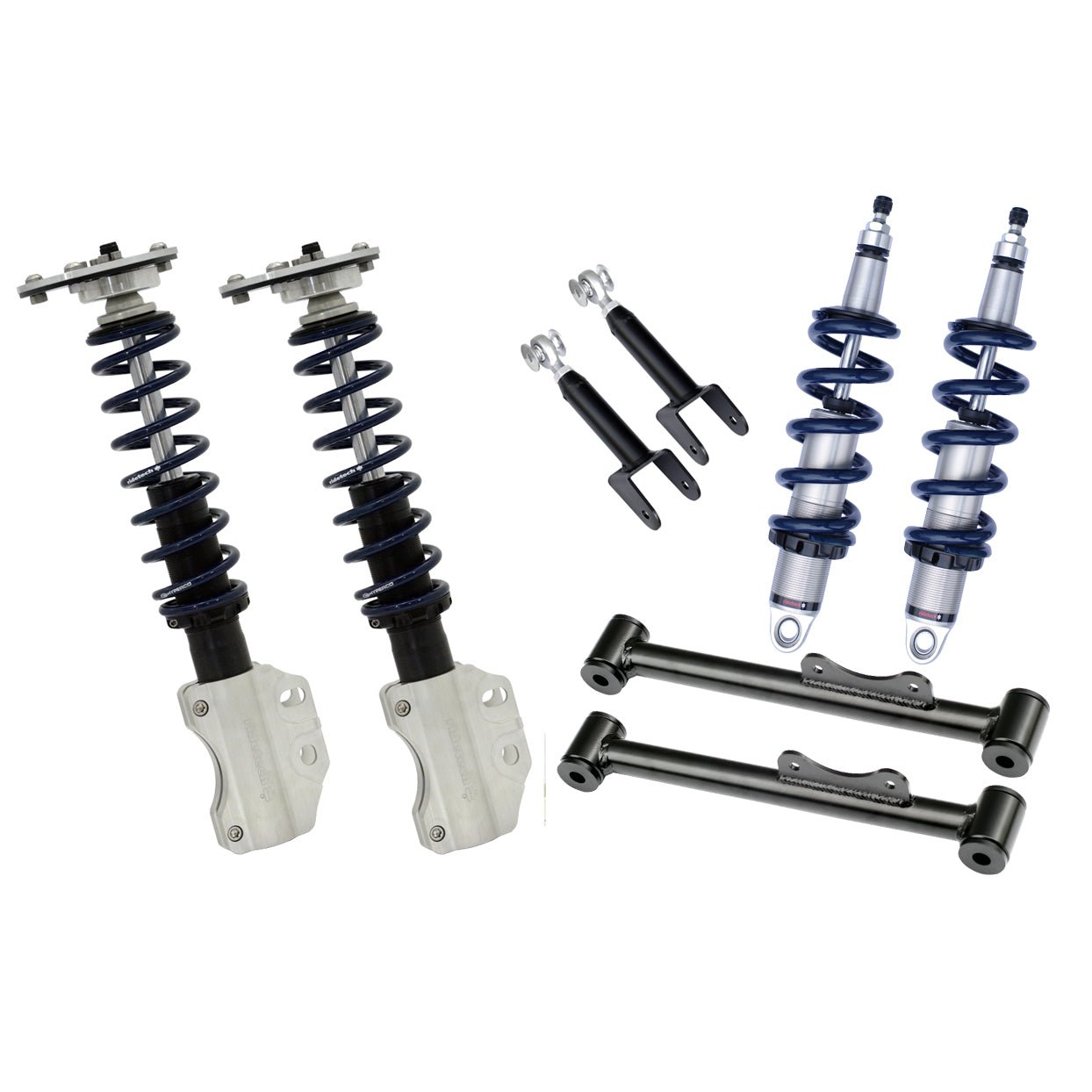

BRAND NEW RIDETECH HQ SERIES COILOVER SYSTEM, MONOTUBE SHOCKS, 2.5" COILOVER SPRINGS, REAR UPPER & LOWER STRONGARMS, MOUNTING BRACKETS & HARDWARE FITS 1979-1989 FORD MUSTANG

THE LEVEL 2 SYSTEM PROVIDES ADJUSTABLE REBOUND TUNING WITH OUR FRONT & REAR HQ COILOVERS.

FITS:

• 1979-1989: FORD: MUSTANG

INCLUDES:

• 2 COIL-OVER FRONT STRUTS
• 2 COIL-OVER REAR SHOCKS & 4 SPRINGS, W/ PROPER SPRING RATE

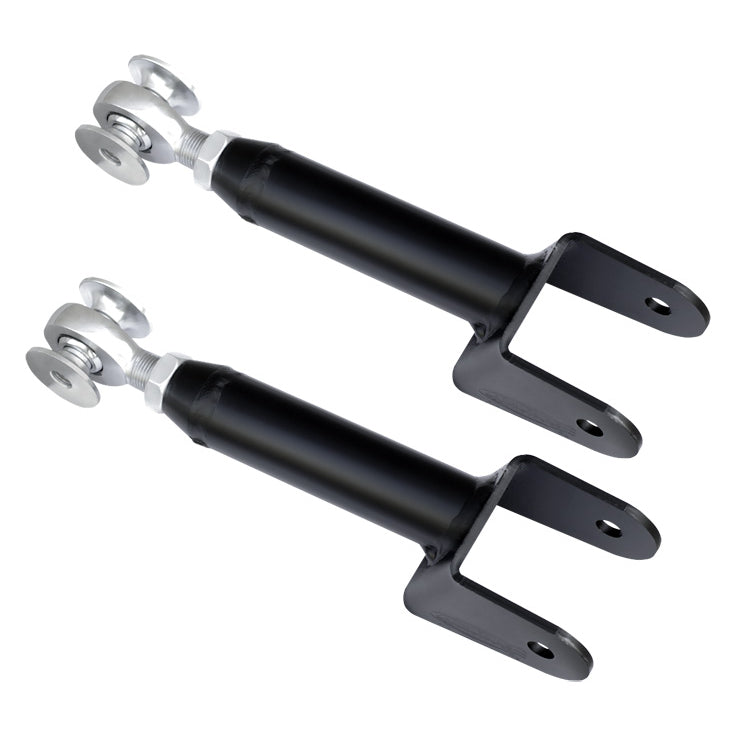

• REAR UPPER & LOWER STRONGARMS
• ALL MOUNTING BRACKETS & HARDWARE

FEATURES:

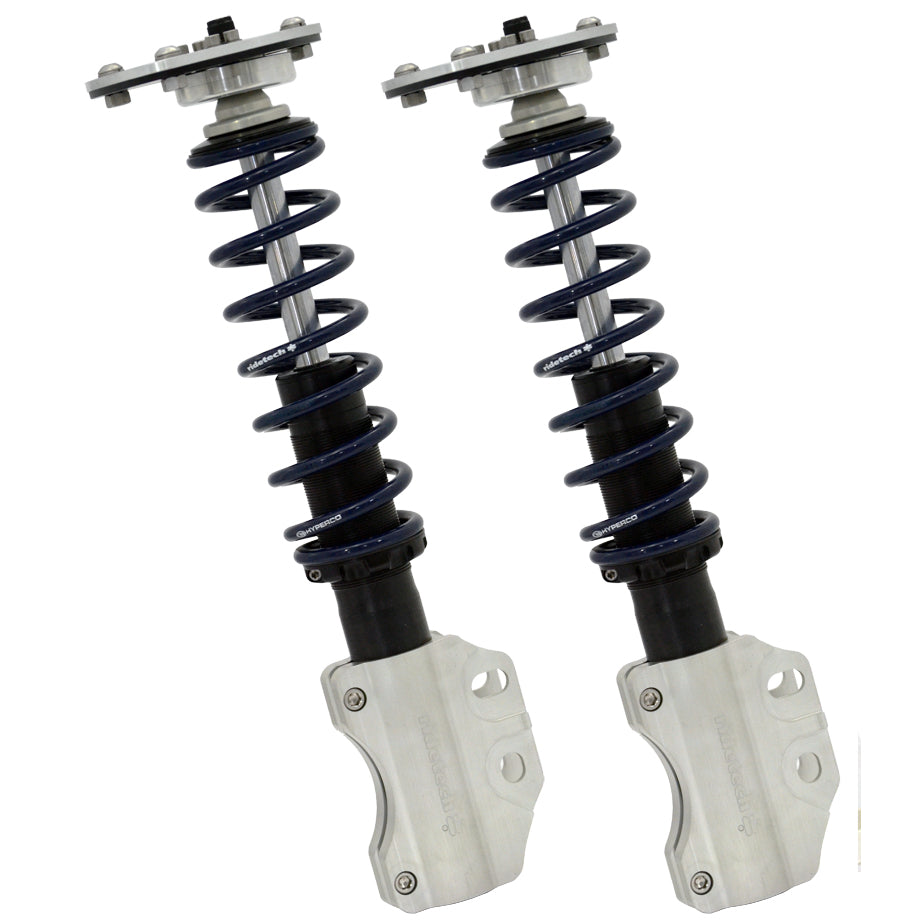

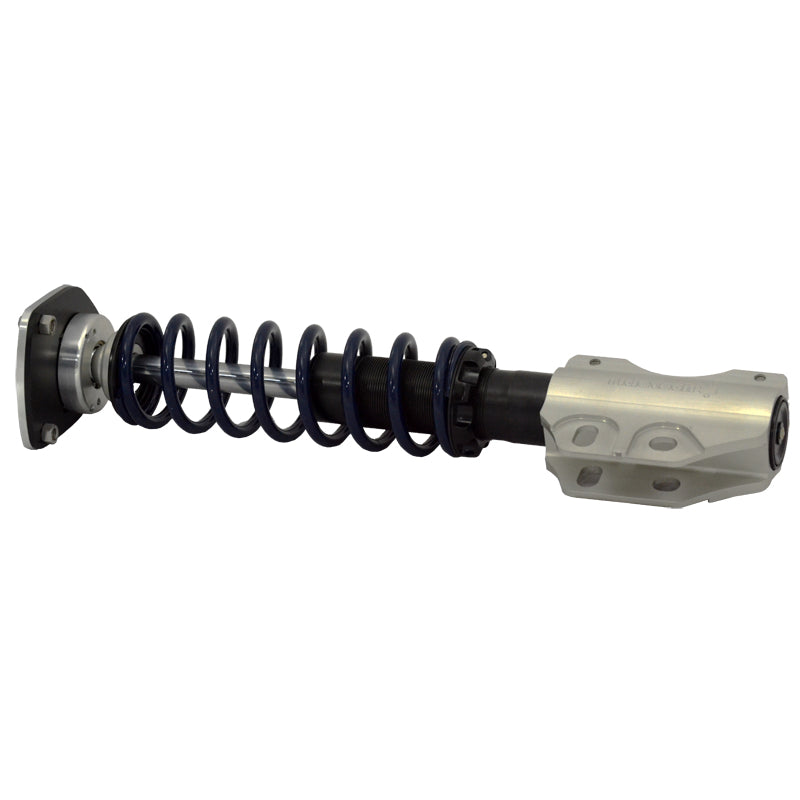

• FRONT PERFORMANCE MONOTUBE STRUT:
• STEEL MONO-TUBE STRUT DESIGN.
• OVERSIZED ROD GUIDES FOR MAXIMUM STRENGTH & DURABILITY.
• EXTRUDED ALUMINUM CLAMP MOUNT.
• NITRO CARBURIZED FINISH FOR A LASTING DURABILITY.
• BILLET UPPER MOUNTING BRACKET W/ BUILT IN CAMBER/CASTER ADJUSTMENT.
• INTEGERATED THRUST BEARING.
• INCLUDES HYPERCO SPRINGS MADE W/ HIGH TENSILE STEEL.
• DELRIN SPRING WASHERS FOR EASY SPRING RETAINER ADJUSTMENT.
• AVAILABLE IN SINGLE ADJUSTABLE HQ.
• REAR RIDETECH 2 1/2" COILOVER SPRINGS:
• HIGH TENSILE PREMIUM STEEL CNC COLD WOUND, LESS WEIGHT, MORE RESISTANT TO BOWING, INCREASED TRAVEL W/ DURABLE POWERED COATED FINISH.
• HIGH TENSILE PREMIUM STEEL CNC COLD WOUND, LESS WEIGHT, MORE RESISTANT TO BOWING, INCREASED TRAVEL W/ DURABLE POWERED COATED FINISH.
• AVAILABLE AS FIXED VALVE OR REBOUND SINGLE ADJUSTABLE.
• CNC MACHINED BILLET HARDWARE.
• UNIQUE PINCH CLAMP HEIGHT ADJUSTER USES FINER THREAD FOR EASY ADJUSTMENT.
• INCLUDES 1/2" BORE X 1" KEVLAR LINED BEARINGS FOR NOISE FREE OPERATION.
• REAR RIDETECH ALUMINUM MONOTUBE SHOCKS:
• MONOTUBE GAS PRESSURE DESIGN OFFERS SUPERIOR FADE FREE PERFORMANCE.
• IMPACT FORGED ALUMINUM BODY PROVIDES SUPERIOR STRENGTH & RELIABLE SERVICE.
• LARGER 1.834" PISTON PROVIDES OUTSTANDING RIDE QUALITY.
• DOUBLE SEALED ROD GUIDE W/ DUST COVER ELIMINATES OIL LEAKAGE.
• 5/8" CHROME SHOCK SHAFT.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS HERE FOR THE LEVEL 2 COILOVER SYSTEM, COILOVER INSTRUCTIONS, AND QUICK SHOCK TUNING GUIDE.
