COILOVER & 4-LINK SYSTEM,ARMS,64-66 MUSTANG

BRAND NEW RIDETECH COILOVER SUSPENSION SYSTEM, FITS 1964-1966 FORD MUSTANG

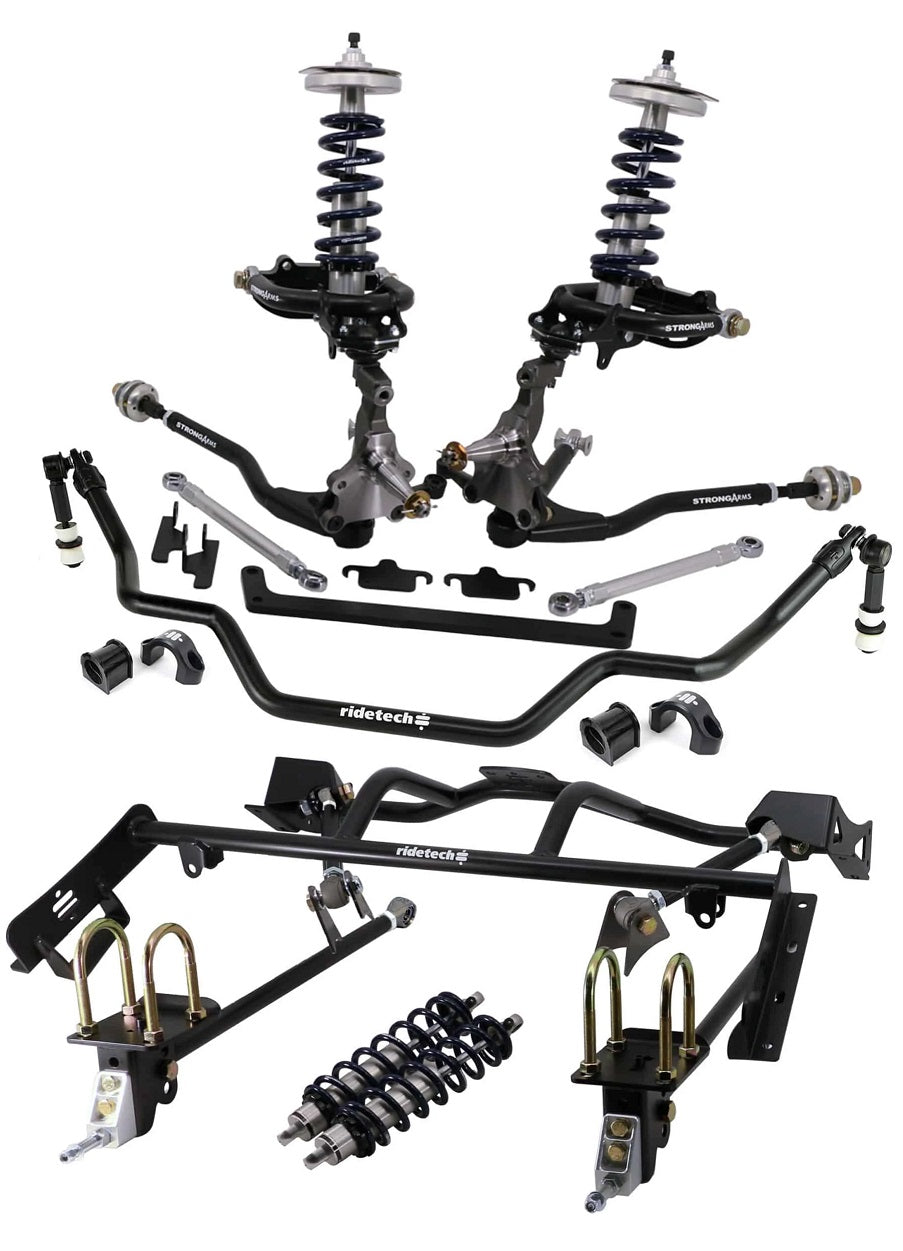

THE RIDETECH COILOVER SYSTEM FOR THE 1964-1966 MUSTANG INCLUDES EVERYTHING YOU NEED TO GIVE YOUR VINTAGE MUSTANG MODERN DRIVABILITY. THE PACKAGE CONTAINS FRONT UPPER AND LOWER CONTROL ARMS, TALL SPINDLES, STEERING ARMS, INNER & OUTER TIE RODS, FRONT MUSCLEBAR, A BOLT-ON 4 LINK SYSTEM AND 4 HQ SERIES COILOVERS FOR EVERY CORNER OF YOUR VEHICLE. THE BENEFIT OF BUYING A COMPLETE SUSPENSION SYSTEM IS THAT IT TAKES ALL OF THE GUESSWORK OUT WHEN PURCHASING A NEW SUSPENSION. RIDETECH HAS SPENT HOURS COLLECTING DATA TO FIND A PERFECT SPRING RATE AND COMPONENTS FOR YOUR VEHICLES PERFORMANCE AND RIDE QUALITY.

FITS:

• 1964-1966 FORD MUSTANG

FEATURES:

• HQ SERIES COILOVERS: UTILIZE AN IMPACT FORGED ALUMINUM BODY & MONOTUBE DESIGN TO DELIVER EXCELLENT RIDE QUALITY & HANDLING. ALLOWS FINE TUNING OF RIDE QUALITY & HANDLING REBOUND KNOB IS LOCATED AT TOP OF SHOCK FOR UNDER HOOD ACCESS.COMES W/ A 1,000,0001 MILE WARRANTY.
• TRUTURN STEERING SYSTEM: STEERING LINKAGE OPTIMIZES BUMPSTEER UNDER .065" THROUGH 5" OF SUSPENSION TRAVEL. INCLUDES OUTER TIE ROD STUDS, OUT TIE ROD HEIM JOINTS, TIE ROD ADJUSTERS & INNER TIE RODS.
• FRONT UPPER STRONGARMS: TALL BALL JOINTS TO PROVIDE INCREASED CAMBER GAIN & BALL JOINT LOCATION HAS BEEN MOVED BACK TO ALLOW FOR ADDITIONAL CASTER SETTING TO IMPROVE HIGH SPEED STABILITY & STEERING FEEL. OFFSET SLUGS ARE ALSO AVAILABLE FOR ADDITIONAL CASTER. INJECTION MOLDED DELRIN BUSHINGS W/ 13% TEFLON ARE USED TO REDUCE DEFLECTION & STICTION.
• FRONT LOWER STRONGARMS: DOUBLE SHEER LOWER MOUNT FOR INCREASED STRENGTH. DROPPED THE LOWER SHOCK MOUNT TO INCREASE SUSPENSION TRAVEL & MOVED LOWER BALL JOINT FORWARD TO INCREASE CASTER SETTINGS WHILE KEEPING WHEEL CENTERED IN WHEEL OPENING. INJECTION MOLDED DELRIN BUSHINGS W/ 13% TEFLON ARE USED TO REDUCE DEFLECTION & STICTION.
• FRONT MUSCLEBAR: HELPS REDUCE BODY ROLL & INCLUDES POSILINK ENDLINKS THAT PROVIDE IMMEDIATE ENGAGEMENT BETWEEN CHASSIS & CONTROL ARMS.
• BOLT-ON 4-LINK: GREATLY IMPROVES TRACTION, HANDLING & RIDE QUALITY. INSTALLATION DOES NOT REQUIRE ANY MAJOR MODIFICATIONS TO FLOOR PAN, & REQUIRES ONLY MINIMAL WELDING TO THE AXLE TUBE. WORKS WITH MINITUBS. R-JOINT ROD ENDS COMBINE THE BEST QUALITIES OF LOW FRICTION MOVEMENT, LATERAL STABILITY, FULL RANGE ARTICULATION & QUIET OPERATION INTO ONE SPECIAL BEARING.

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS SUSPENSION SYSTEM HERE.
