REAR 4" LOWERING KIT WITH HQ SHOCKS,2019-2026 CHEVY SILVERADO,GMC SIERRA,GROUP B

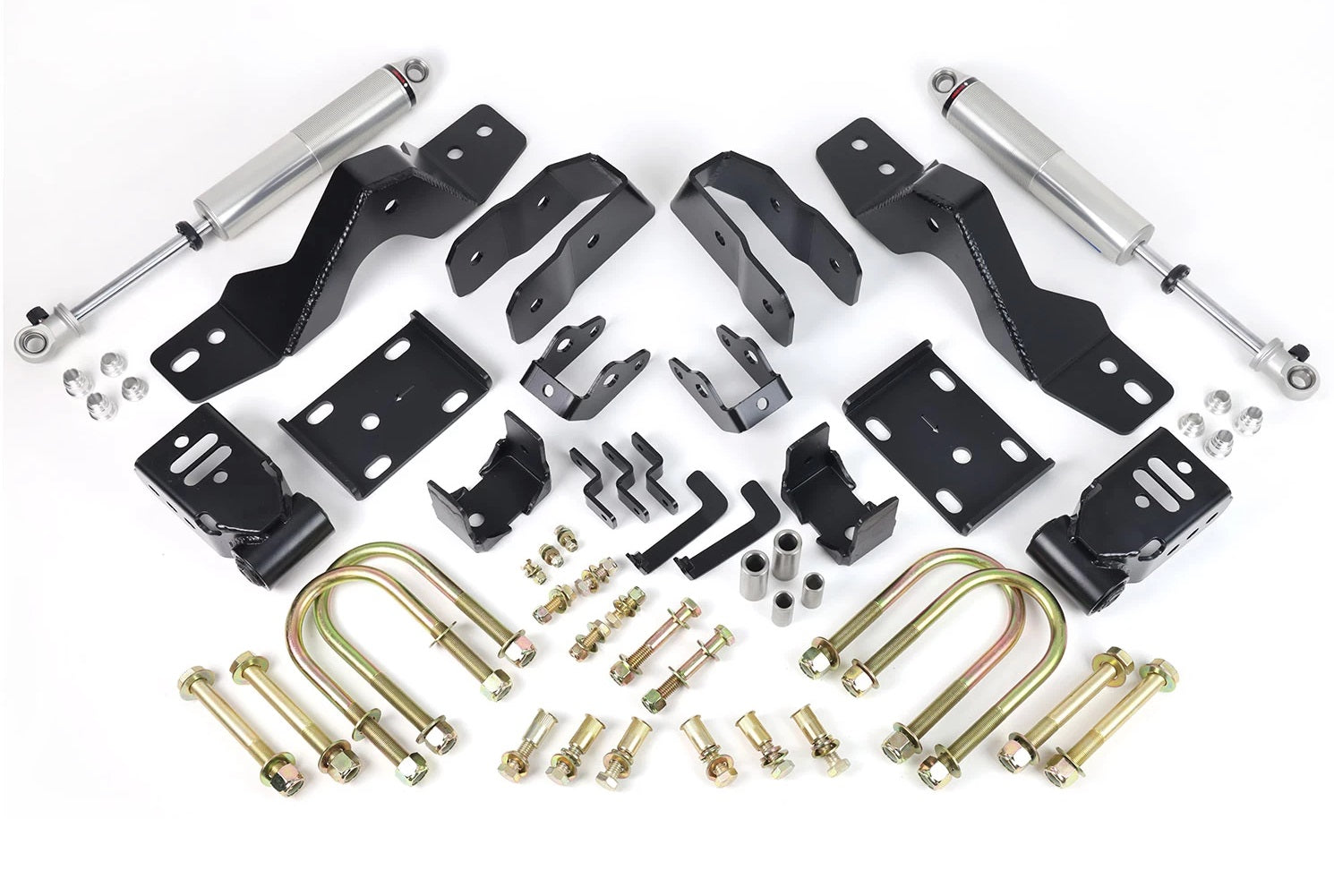

Brand New Ridetech Rear 4" Lowering Kit with HQ Shocks (Part #11729513).

Lower your 2019-2025 Silverado/Sierra 1500 up to 4″ inches in the rear with Ridetech lowering suspension system. More than a lowering kit, system will turn your vehicle into a high-performance muscle truck with better stance, handling and ride quality. The Ridetech lowering kit is 100% bolt-on, fully adjustable and made in the USA. It includes everything you need to lower your Silverado/Sierra 1500.

Fits:

• Chevrolet:
  • 2019-2025 Silverado 1500 2WD/4WD with Axle Group B (See Notes)
• GMC:
  • 2019-2025 Sierra 1500 2WD/4WD with Axle Group B (See Notes)

Notes:

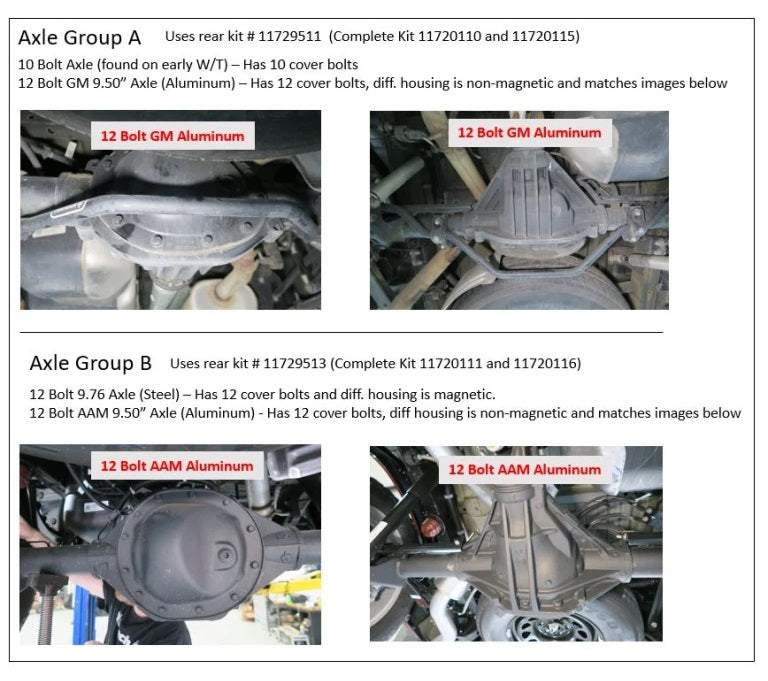

• This system is available with two different axle flip brackets to fit the 4 different axle housing GM used.  See image to identify the axle and if the bracket for axle “Group A” or “Group B” is needed.
• Group A = 10 Bolt Axle (found on early W/T) - Has 10 Cover Bolts, 12 Bolt GM 9.5" Axle (Aluminum) - Has 12 cover bolts, diff. housing is non-magnetic
• Group B = 12 Bolt 9.76 Axle (Steel) - Has 12 cover bolts and diff. housing is magnetic, 12 Bolt AAM 9.5" Axle (Aluminum) - Has 12 cover bolts, diff. housing is non-magnetic
• Does not fit trucks equipped with the factory composite mono leaf spring.

Features:

• Lowered stance

• Adjustable ride height – 4” rear drop
• Improved ride quality & sharper handling
• Adjustable Ridetech/Fox Shocks

• Aluminum Body

• Mono tube/gas pressure

• Adjustable valving

You can view and download the assembly or instruction booklet here.
